56SO Waterproof Socket
Product technical parameters
Product Introduction
Model
10A/3P-56SO310 IP66 250V
10A/3P-56SO310L IP66 250V
10A/3P-56SO310F** IP66 250V
16A/3P-56SO316F** IP66 250V
15A/3P-56SO315 IP66 250V
20A/3P-56SO320F IP66 250V
15A/3P-56SO315RP IP66 250V
13A/3P-56SO313* IP66 250V
20A/3P-56SO320 IP66 250V
32A/3P-56SO332 IP66 250V
10A/4P-56SO410 IP66 500V
20A/4P-56SO420 IP66 500V
32A/4P-56SO432 IP66 500V
40A/4P-56SO440 IP66 500V
50A/4P-56SO450 IP66 500V
10A/5P-56SO510 IP66 500V
20A/5P-56SO520 IP66 500V
32A/5P-56SO532 IP66 500V
40A/5P-56SO540 IP66 500V
50A/5P-56SO550 IP66 500V
10A/6P-56SO610 IP66 500V
10A/7P-56SO710 IP66 500V
20A/7P-56SO720 IP66 500V
Model & Specification
The 56SO series 110-250ν socket has a patent-pending transparent link cover that closes and locks the socket when the plug is unplugged, and the automatic seal protection class is IP66. The cover is transparent and can be clearly distinguished without opening.
 | |||||||
| Model | Rated airtight Thermal current（A） |
Rated operating voltageUe(-50Hz)(V) | Cable cross section solid or strandedmm2 | Number of socket pins (including grounding) | Socket configuration | IP Protection level | |
| Min | Max | ||||||
| 56SO310 | 10A | 250V | 1.5 | 6 | 3 |  |
IP66 |
| 56SO310L | 10A | 250V | 1.5 | 6 | 3 |  |
IP66 |

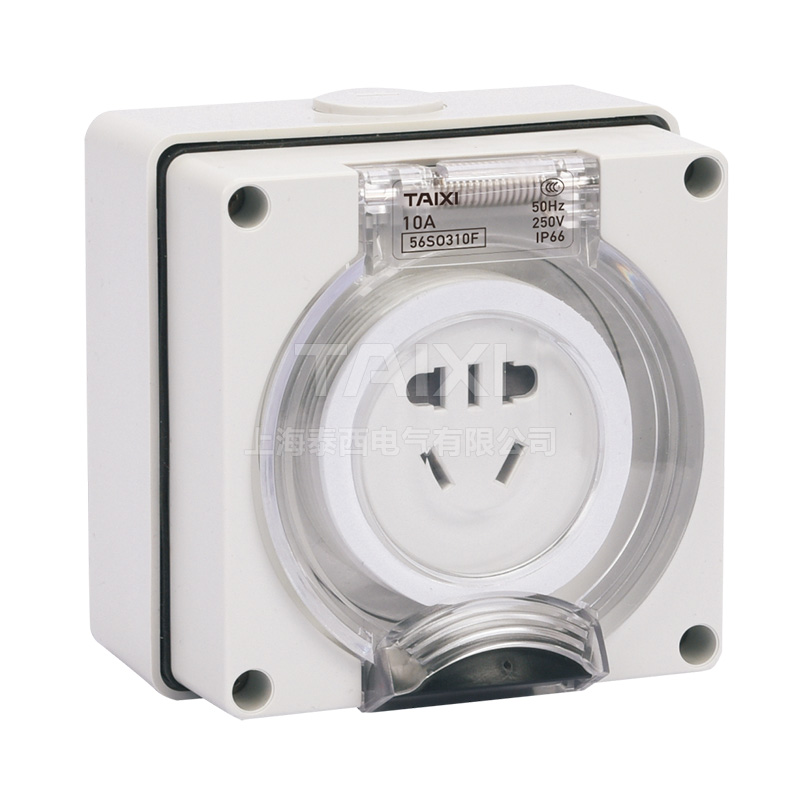

| 56SO310F** | 10A | 250V | 1.5 | 6 | 3 |  |
IP66 |
| 56SO316F** | 16A | 250V | 1.5 | 6 | 3 |  |
IP66 |
| 56SO315 | 15A | 250V | 1.5 | 6 | 3 |  |
IP66 |
| 56SO320F | 20A | 250V | 2.5 | 6 | 3 |  |
IP66 |
| 56SO315RP | 15A | 250V | 1.5 | 6 | 3 |  |
IP66 |
| 56SO313* | 13A | 250V | 1.5 | 6 | 3 |  |
IP66 |

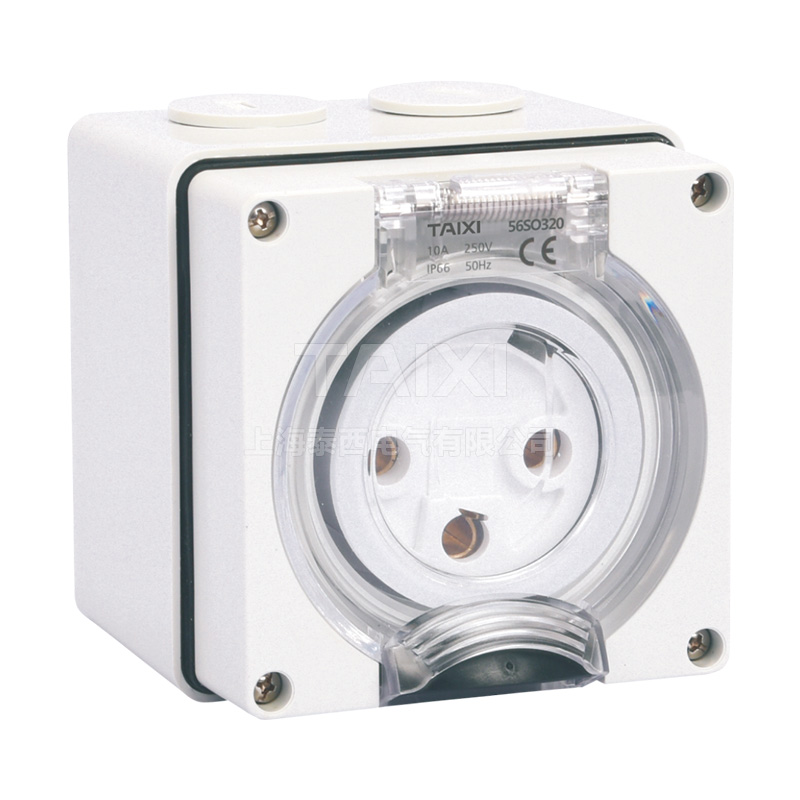

| 56SO320 | 20A | 250V | 2.5 | 6 | 3 |  |
IP66 |
| 56SO332 | 32A | 250V | 6 | 16 | 3 |  |
IP66 |
| Dimension diagram：x1 | |||||||
500 Socket
The socket is for use with the standard 100100 module and the 56E1 housing, and with other accessories in a larger housing.
 |
|||||||
| Model | Rated closed thermal current（A） | Rated operating voltageUe(-50Hz)(V) | Cable cross section solid or strandedmm2 | Number of socket pins (including grounding) | Socket configuration | IP protection level | |
| Min | Max | ||||||
| 56SO410 | 10A | 500V | 1.5 | 6 | 4 |  |
IP66 |
| 56SO420 | 20A | 500V | 2.5 | 6 | 4 |  |
IP66 |
| 56SO432 | 32A | 500V | 4 | 16 | 4 |  |
IP66 |
| 56SO440 | 40A | 500V | 6 | 16 | 4 |  |
IP66 |
| 56SO450 | 50A | 500V | 10 | 16 | 4 |  |
IP66 |
| 56SO510 | 10A | 500V | 1.5 | 6 | 5 |  |
IP66 |
| 56SO520 | 20A | 500V | 2.5 | 6 | 5 |  |
IP66 |
| 56SO532 | 32A | 500V | 4 | 16 | 5 |  |
IP66 |
| 56SO540 | 40A | 500V | 6 | 16 | 5 |  |
IP66 |

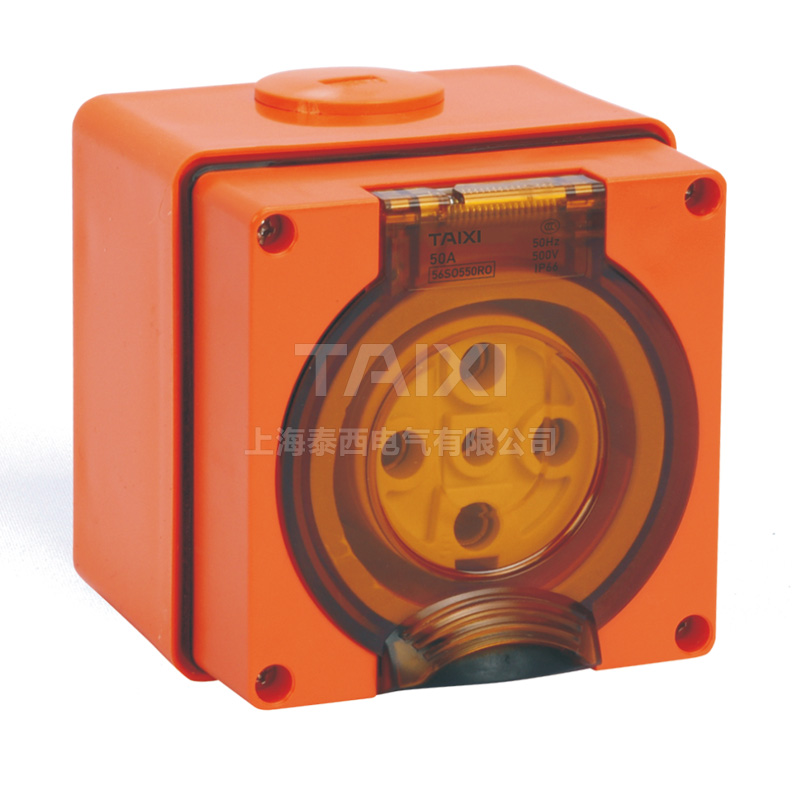

| 56SO550 | 50A | 500V | 10 | 16 | 5 |  |
IP66 |
| 56SO610 | 10A | 500V | 1.5 | 6 | 6 |  |
IP66 |
| 56SO710 | 10A | 500V | 1.5 | 6 | 7 |  |
IP66 |
| 56SO720 | 20A | 500V | 2.5 | 6 | 7 |  |
IP66 |
| Dimension diagram：x2 | |||||||
 |
|
| 56TXO-DG Socket 15A-250V~ IP55 Conforms to multi-functional standards |
56TXO-313 Socket 13A-250~ IP55 Conforms to British Standard BS1363 |
| Dimension diagram：x3 | |
| 56/32 |
 |
| 56CSC-313T 13A-250V~ IP56 Conforms to British Standard BS1363 |
| Dimension diagram：x4 |
Dimension Diagram
 |
||||
| Dimension diagram：x1 |
|
||||
| Dimension diagram：x2 |
 |
||||
| Dimension diagram：x3 |
 |
||||
| Dimension diagram：x4 |
