Waterproof Junction Box

IP65


230V

Email: SALES@CHTAIXI.COM
WhatsApp: 0086-15669851253
Skype: TAIXI WATERPROOF

READ PDF DOWNLOAD PDF
  • Product technical
    parameters
  • Product package&
    size&weight
  • Relevant
    information
  • Product related
    video
Product technical parameters

Product Introduction

Plastic waterproof junction box is made by injection moulding of engineering plastics ABS or PC. It does not contain bacteriocin material. The protective grade is IP65, the crash resistance grade is IK07, and the size ranges from 64*58*35 to 380*262*104 with 76 specifications. It can provide baseplate, din rails,  terminal blocks, external accessaries, hinges, locks and perspective windows as required. Specialized colours and openings can be customized according to needs, the prduct is widely used in various fields.

Technical Parameters

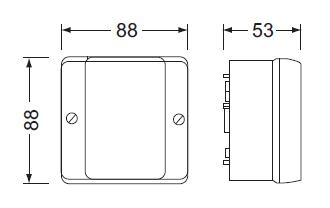

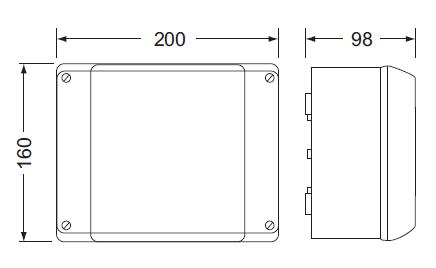

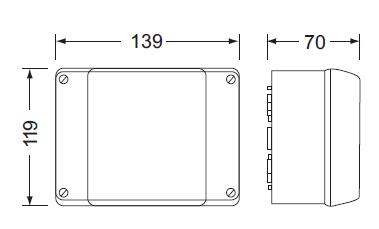

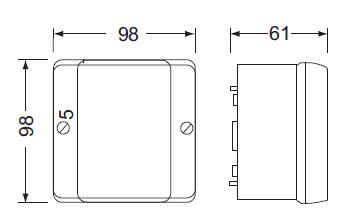

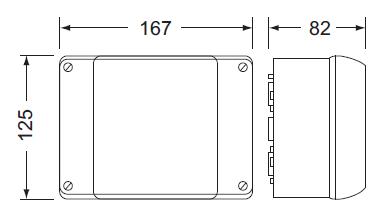

Model Pipe Connection（plug-in） Wire Entry Hole（metric） Parameters Plane Diagram（dimension diagram）
D9020Z 4ESM20 suitable cable
Φ6-13mm		 2.5mm²，20A，AC400V 3~
4mm²，25A，AC250V 1~
D9025Z Model（with terminal）
Model
 Pipe Connection（plug-in）
 Wire Entry Hole（metric）
 Parameters
 Plane Diagram（dimension diagram）
D9040Z 4ESM25 suitable cable
Φ9-17 mm		 4mm²，25A，AC400V 3~
6mm²，32A，AC250V 1~
D904 5Z Model（with terminal）
Model
 Pipe Connection（plug-in）
 Wire Entry Hole（metric）
 Parameters
 Plane Diagram（dimension diagram）
D9060Z 3ESM32 suitable cable
Φ9-23 mm		 6mm²，32A，AC400V 3~
10mm²，50A，AC250V 1~
D906 5Z Model（with terminal）
Model
 Pipe Connection（plug-in）
 Wire Entry Hole（metric）
 Parameters
 Plane Diagram（dimension diagram）
D9100Z 3ESM32 suitable cable
Φ9-23 mm		 10mm²，50A，AC400V 3~
16mm²，60A，AC250V 1~
D9105Z Model（with terminal）
Model
 Pipe Connection（plug-in）
 Wire Entry Hole（metric）
 Parameters
 Plane Diagram（dimension diagram）
D9250Z 3ESM40 suitable cable
Φ17-30 mm		 25mm²，50A，AC400V 3~
35mm²，100A，AC250V 1~
D9255Z Model（with terminal）
Product package& size&weight
Relevant information
Product related< video
