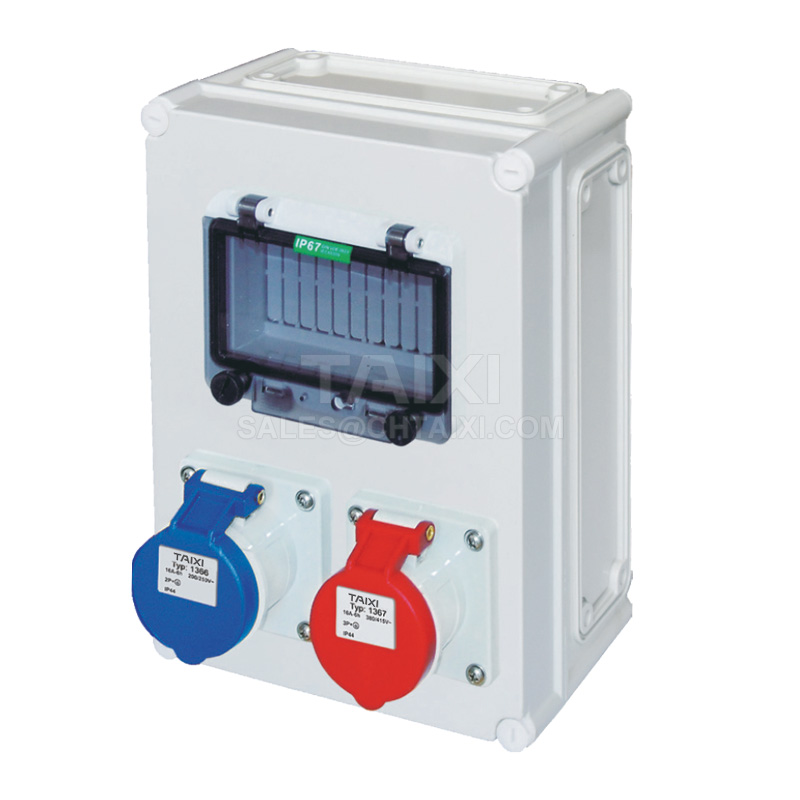

Industrial Socket Box

IP65


Email: SALES@CHTAIXI.COM
WhatsApp: 0086-15669851253
Skype: TAIXI WATERPROOF

READ PDF DOWNLOAD PDF
  • Product technical
    parameters
  • Product package&
    size&weight
  • Relevant
    information
  • Product related
    video
Product technical parameters

Features

1. Wide range of applications: Lighting power industry socket overhaul box mainly applies to indoor and outdoor electrical, communication, fire fighting equipment, steel smelting, petrochemical industry, electronics, power, railways, construction sites, mines, mining sites, airports, hotels, ships, large factories, coastal factories, unloading terminal equipment, sewage treatment facilities, environmental pollution facilities, etc.
2. Excellent material: The new imported materials, high-quality thermoplastic ABS or PC polycarbonate, or materials can be selected according to customer's requirements, customized fuel resistance, anti-ultraviolet materials.
3. More selectivity: Industrial socket openings can be large or small, install plugs and sockets with different currents, voltages and poles of industrial according to the different needs of customers.
4. Waterproof performance: Lighting power industry socket overhaul box possesses very strong water-proof property, protection level reaches IP65 or above, even when heavy rain occurs during operation, it still keep dry, very safe. Window cover is waterproof to IP67 such a high level.
5. Fashionable and convenient: Lighting overhaul box is beautiful and fashionable in appearance, more portable and convenient to carry.

Technical Parameters

Rated insulation voltage: 400V (660V) AC
Rated operating voltage: AC 230400V, DC 440V
Rated operating frequency: 50Hz
Protection Level: IP44, IP67
Single circuit output current: 10A, 16A, 32A, 63A, 125A, etc.
Single circuit output voltage: 20-25V, 40-50V, 100-130V, 200-250V, 380-480V, 500-660V
Output socket poles: 1P+N+PE, 3P+PE, 3P+N+PE
Suitable for environment: indoor and outdoor occasions with temperature of -30℃~+40℃

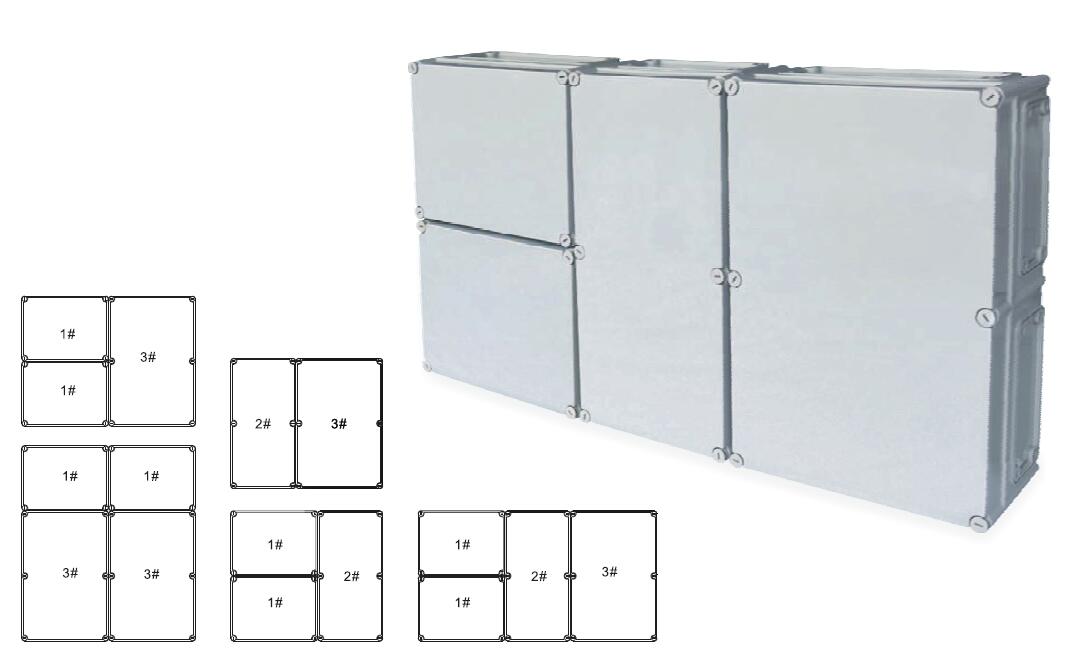

Assembly Diagram

All seals and boxes are integrated, and the assembly is simple. Not only boxes of the same specifications can be joined together, but also boxes of different specifications can be joined together.

Product package& size&weight

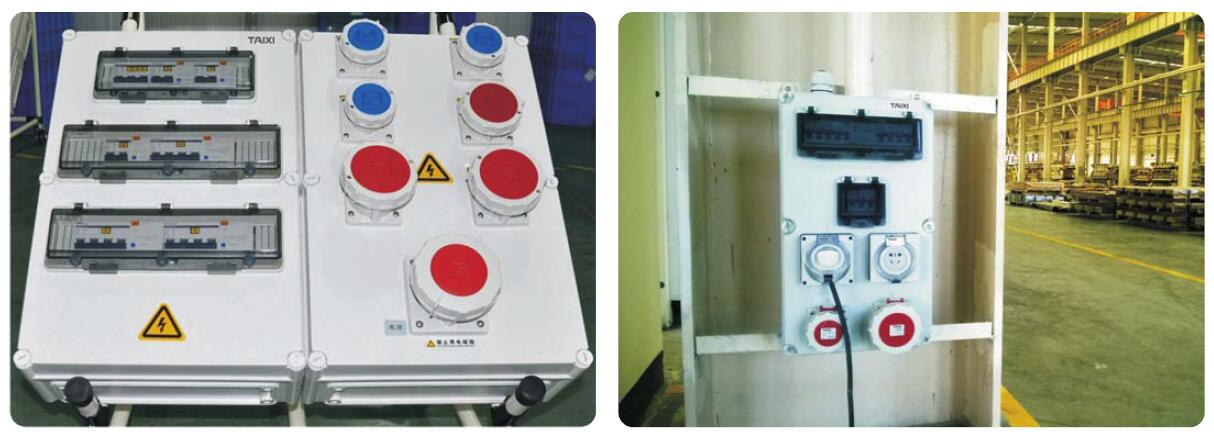

Relevant information
Product related< video
