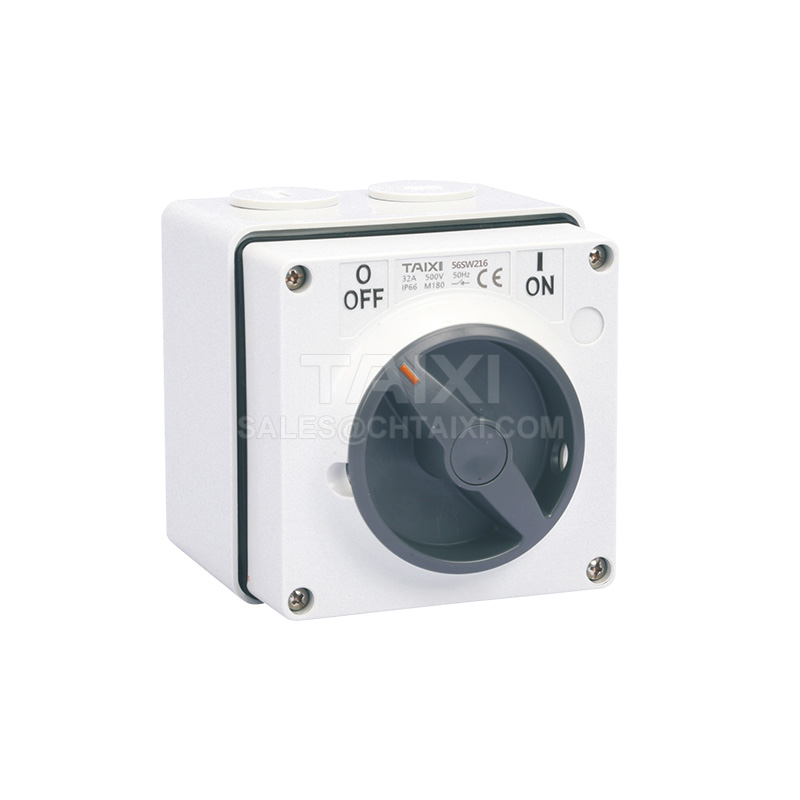

56SW Weatherproof Isolator Switch
Product technical parameters
Product Introduction
56SW lock knob type waterproof industrial isolating switch has super waterproof, dust-proof, anti-corrosion, anti-ultraviolet, flame-retardant, high temperature, anti-aging and other characteristics; it can perfectly meet your needs for safe electricity utilization in the harsh outdoor environment such as rainwater, dust, freezing, high temperature, strong ultraviolet rays.
250V lock knob type waterproof industrial isolating switch. Rated voltage 250V. Current: 1P, 2P, 3P, 10A, 16A, 20A, 32A. Protection Level: IP56500V lock knob type waterproof industrial isolating switch. Rated voltage 500V. Current: 1P, 2P, 3P, 32A, 40A, 50A. Protection Level: IP66
- Mechanical life: 150,000 times; Electrical life: 100,000 times
- Installation : surface mounting
- The wiring terminal adopts the cover design, which can ensure the safety of finger contact
- The opening and closing positions are clearly marked with two 8 mm straight padlock holes. When used as maintenance switch and insurance switch, padlock can be installed in the'OFF'position; if need be locked in the'OPEN' position, only need to lock a hole; So as to ensure the safety of the users.
- To facilitate wiring, provide a deeper housing option (item No. 56SW363/2) that can concentrate two 56SW series 3P 63A switches, so that the associated wiring has additional space to work with.
- The terminals of all products above 20A can accommodate 3*6sqmm ground wire and neutral cable.
Products are widely used in smelting, chemical industry, power, electronics, airports, railways, construction sites, mines, mining sites, water supply and drainage treatment plants, automobile manufacturing, ports, wharfs, shopping malls, hotels and other places.
Model & Specification
10A/1P-56SW110 IP66 250V
10A/1P-56SW110/2 IP66 250V
10A/2P-56SW210 IP66 500V
16A/1P-56SW116 IP66 250V
20A/1P-56SW120 IP66 250V
20A/2P-56SW220 IP66 500V
32A/1P-56SW132 IP66 250V
32A/2P-56SW232 IP66 500V
50A/1P-56SW150 IP66 250V
50A/2P-56SW250 IP66 500V
10A/3P-56SW310 IP66 500V
16A/3P-56SW316 IP66 500V
10A/3P-56SW320 IP66 500V
32A/3P-56SW332 IP66 500V
40A/3P-56SW350 IP66 500V
50A/3P-56SW350/2 IP66 500V
63A/3P-56SW363/2 IP66 500V
20A/4P-56SW420 IP66 500V
32A/4P-56SW432 IP66 500V
63A/4P-56SW463 IP66 500V
10A/1P-56SW110 IP66 250V
10A/1P-56SW110/2 IP66 250V
10A/2P-56SW210 IP66 500V
16A/1P-56SW116 IP66 250V
20A/1P-56SW120 IP66 250V
20A/2P-56SW220 IP66 500V
32A/1P-56SW132 IP66 250V
32A/2P-56SW232 IP66 500V
50A/1P-56SW150 IP66 250V
50A/2P-56SW250 IP66 500V
10A/3P-56SW310 IP66 500V
16A/3P-56SW316 IP66 500V
10A/3P-56SW320 IP66 500V
32A/3P-56SW332 IP66 500V
40A/3P-56SW350 IP66 500V
50A/3P-56SW350/2 IP66 500V
63A/3P-56SW363/2 IP66 500V
20A/4P-56SW420 IP66 500V
32A/4P-56SW432 IP66 500V
63A/4P-56SW463 IP66 500V
10A/3P-56SO310 IP66 250V
10A/3P-56SO310L IP66 250V
10A/3P-56SO310F** IP66 250V
16A/3P-56SO316F** IP66 250V
15A/3P-56SO315 IP66 250V
20A/3P-56SO320F IP66 250V
15A/3P-56SO315RP IP66 250V
13A/3P-56SO313* IP66 250V
20A/3P-56SO320 IP66 250V
32A/3P-56SO332 IP66 250V
Technical Parameters
250V Switch
 |
|
■Rated Voltage：(250vAC& DC)
■IP Grade：IP66
Options
■Neon indicating lamp：mark "N" after model number, such as 56SW110N

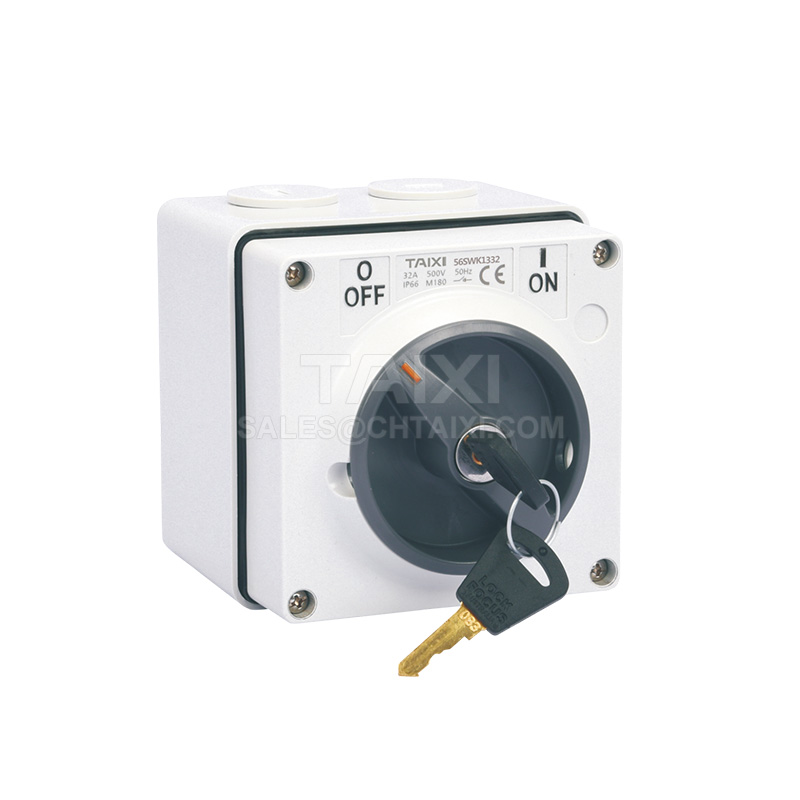

■Key lock：mark K1 or K2 after 56SW in the model number，such as 56SWK1220 Exists almost all the key lock modes except that of forward reverse switch.
■OFF position keys can be removed: mark "K1" after 56SW in the model number，such as 56SWK1110.
OFF and ON position keys can be removed: mark "K2" after 56SW in the model number, such as 56SWK2110。
■All keylocks of 56 series switches have general keylocks and keys.
■Yellow cover/red knob is used for isolating switch: mark "YELLOW" after model number，such as：56SW363/2 YELLOW
The above models can be ordered.
|
| Model |
Switch Declaration |
Rated Enclosed Thermal Current（A） |
Rated Operating Voltage Ue (-50Hz)(V) |
Utilization Category |
M Rate |
Solid or Stranded Cable cross section mm2 |
IP Grade |
| AC21A |
AC22A |
AC23A |
Minimum |
Maximum |
| 56SW110 |
1P |
10A |
250V |
10 |
8 |
8 |
M80 |
1.5 |
6 |
IP66 |
| 56SW110/2 |
1P |
10A |
250V |
10 |
8 |
8 |
M80 |
1.5 |
6 |
IP66 |
| 56SW210 |
2P |
10A |
500V |
20 |
20 |
20 |
M150 |
2.5 |
16 |
IP66 |
| 56SW116 |
1P |
16A |
250V |
16 |
8 |
8 |
M80 |
1.5 |
6 |
IP66 |
| 56SW120 |
1P |
20A |
250V |
20 |
20 |
20 |
M150 |
2.5 |
16 |
IP66 |
| 56SW220 |
2P |
20A |
500V |
20 |
20 |
20 |
M150 |
2.5 |
16 |
IP66 |
| 56SW132 |
1P |
32A |
250V |
32 |
32 |
28 |
M180 |
4 |
16 |
IP66 |
| 56SW232 |
2P |
32A |
500V |
32 |
32 |
28 |
M180 |
4 |
16 |
IP66 |
| 56SW150 |
1P |
50A |
250V |
50 |
50 |
25 |
M250 |
10 |
25 |
IP66 |
| 56SW250 |
2P |
50A |
500V |
50 |
50 |
25 |
M250 |
10 |
25 |
IP66 |
| 56SW310 |
3P |
10A |
500V |
10 |
10 |
10 |
M100 |
1.5 |
16 |
IP66 |
| 56SW316 |
3P |
16A |
500V |
10 |
10 |
10 |
M100 |
1.5 |
16 |
IP66 |
| 56SW320 |
3P |
20A |
500V |
20 |
20 |
20 |
M150 |
2.5 |
16 |
IP66 |
| 56SW332 |
3P |
32A |
500V |
32 |
32 |
28 |
M180 |
24 |
16 |
IP66 |
| 56SW350 |
3P |
50A |
500V |
50 |
50 |
25 |
M200 |
10 |
25 |
IP66 |
| 56SW350/2 |
3P |
50A |
500V |
50 |
50 |
25 |
M200 |
10 |
25 |
IP66 |
| 56SW363/2 |
3P |
63A |
500V |
63 |
63 |
25 |
M200 |
16 |
25 |
IP66 |
| 56SW420 |
4P |
20A |
500V |
20 |
20 |
20 |
M200 |
2.5 |
6 |
IP66 |
| 56SW432 |
4P |
32A |
500V |
20 |
20 |
20 |
M200 |
2.5 |
6 |
IP66 |
| 56SW463 |
4P |
63A |
500V |
63 |
63 |
25 |
M200 |
16 |
25 |
IP66 |
| Dimension diagram：x1 |
 |
| Model |
Switch Declaration
|
Rated Enclosed Thermal Current（A） |
Rated Operating Voltage Ue (-50Hz)(V) |
Utilization Category
|
M Rate |
Solid or Stranded Cable cross section mm2
|
IP Grade |
| AC21A |
AC22A |
AC23A |
Minimum
|
Maximum
|
| 56SW110 |
1P |
10A |
250V |
10 |
8 |
8 |
M80 |
1.5 |
6 |
IP66 |
| 56SW110/2 |
1P |
10A |
250V |
10 |
8 |
8 |
M80 |
1.5 |
6 |
IP66 |
| 56SW210 |
2P |
10A |
500V |
20 |
20 |
20 |
M150 |
2.5 |
16 |
IP66 |
| 56SW116 |
1P |
16A |
250V |
16 |
8 |
8 |
M80 |
1.5 |
6 |
IP66 |
| 56SW120 |
1P |
20A |
250V |
20 |
20 |
20 |
M150 |
2.5 |
16 |
IP66 |
| 56SW220 |
2P |
20A |
500V |
20 |
20 |
20 |
M150 |
2.5 |
16 |
IP66 |
| 56SW132 |
1P |
32A |
250V |
32 |
32 |
28 |
M180 |
4 |
16 |
IP66 |
| 56SW232 |
2P |
32A |
500V |
32 |
32 |
28 |
M180 |
4 |
16 |
IP66 |
| 56SW150 |
1P |
50A |
250V |
50 |
50 |
25 |
M250 |
10 |
25 |
IP66 |
| 56SW250 |
2P |
50A |
500V |
50 |
50 |
25 |
M250 |
10 |
25 |
IP66 |
| 56SW310 |
3P |
10A |
500V |
10 |
10 |
10 |
M100 |
1.5 |
16 |
IP66 |
| 56SW316 |
3P |
16A |
500V |
10 |
10 |
10 |
M100 |
1.5 |
16 |
IP66 |
| 56SW320 |
3P |
20A |
500V |
20 |
20 |
20 |
M150 |
2.5 |
16 |
IP66 |
| 56SW332 |
3P |
32A |
500V |
32 |
32 |
28 |
M180 |
24 |
16 |
IP66 |
| 56SW350 |
3P |
50A |
500V |
50 |
50 |
25 |
M200 |
10 |
25 |
IP66 |
| 56SW350/2 |
3P |
50A |
500V |
50 |
50 |
25 |
M200 |
10 |
25 |
IP66 |
| 56SW363/2 |
3P |
63A |
500V |
63 |
63 |
25 |
M200 |
16 |
25 |
IP66 |
| 56SW420 |
4P |
20A |
500V |
20 |
20 |
20 |
M200 |
2.5 |
6 |
IP66 |
| 56SW432 |
4P |
32A |
500V |
20 |
20 |
20 |
M200 |
2.5 |
6 |
IP66 |
| 56SW463 |
4P |
63A |
500V |
63 |
63 |
25 |
M200 |
16 |
25 |
IP66 |
| Dimension diagram：x2 |
 |
Switch Cover Assy
Duplex cover assy of 56 series switches are made of impact-resistant polycarbonate structure, specially designed mounting frame, which is suitable for all range of circuit breakers, RCDs and MCB/RCDs combination.
Cover are suitable for all 56 series housing (minimum standard depth is 63 mm) and provides neon indicating lamp, which can be connected from the switch circuit or load side.
Options
■Durable orange: mark "RO" after the model number, such as 56CB1NRO
■Chemical gray : mark "CG" after the model number, such as 56CB1NCG
|
Model
|
Module Type |
Phase No. |
Module Width
|
| 56CB4N |
1.2.3 POLE MCB |
4 RCD |
4 |
| 56CB4 |
1.2.3 POLE MCB |
4 RCD |
4 |
| 56CB4NM |
1.2.3 POLE MCB |
4 RCD |
4 |
| Dimension diagram：x3 |
 |
110-250V Socket
110-250V sockets of 56SO series adopt patent-applied transparent link cover. When the plug is pulled out, the socket is closed and locked. The automatic seal protection level is IP66. The cover plate is transparent, so the pin configuration can be clearly distinguished without opening it.
|
Model
|
Rated Enclosed Thermal Current（A） |
Rated Operating Voltage Ue(-50Hz)(V) |
Solid or Stranded Cable cross section mm2
|
Socket Pins（include grounding)
|
Pins configuration
|
IP Grade
|
Minimum
|
Maximum
|
| 56SO310 |
10A |
250V |
1.5 |
6 |
3 |
 |
IP66 |
| 56SO310L |
10A |
250V |
1.5 |
6 |
3 |
 |
IP66 |
| 56SO310F** |
10A |
250V |
1.5 |
6 |
3 |
 |
IP66 |
| 56SO316F** |
16A |
250V |
1.5 |
6 |
3 |
 |
IP66 |
| 56SO315 |
15A |
250V |
1.5 |
6 |
3 |
 |
IP66 |
| 56SO320F |
20A |
250V |
2.5 |
6 |
3 |
 |
IP66 |
| 56SO315RP |
15A |
250V |
1.5 |
6 |
3 |
 |
IP66 |
| 56SO313* |
13A |
250V |
1.5 |
6 |
3 |
 |
IP66 |
| 56SO320 |
20A |
250V |
2.5 |
6 |
3 |
 |
IP66 |
| 56SO332 |
32A |
250V |
6 |
16 |
3 |
 |
IP66 |
| Dimension diagram：x4 |
 |
500V Socket
The socket according to standard 100100. The module is used with the 56E1 housing and installed in a larger housing with other accessories.
|
Model
|
Rated Enclosed Thermal Current（A） |
Rated Operating Voltage Ue(-50Hz)(V) |
Solid or Stranded Cable cross section mm2
|
Socket Pins（include grounding）
|
Pins configuration
|
IP Grade
|
Minimum
|
Maximum
|
| 56SO410 |
10A |
500V |
1.5 |
6 |
4 |
 |
IP66 |
| 56SO420 |
20A |
500V |
2.5 |
6 |
4 |
 |
IP66 |
| 56SO432 |
32A |
500V |
4 |
16 |
4 |
 |
IP66 |
| 56SO440 |
40A |
500V |
6 |
16 |
4 |
 |
IP66 |
| 56SO450 |
50A |
500V |
10 |
16 |
4 |
 |
IP66 |
| 56SO510 |
10A |
500V |
1.5 |
6 |
5 |
 |
IP66 |
| 56SO520 |
20A |
500V |
2.5 |
6 |
5 |
 |
IP66 |
| 56SO532 |
32A |
500V |
4 |
16 |
5 |
 |
IP66 |
| 56SO540 |
40A |
500V |
6 |
16 |
5 |
 |
IP66 |
| 56SO550 |
50A |
500V |
10 |
16 |
5 |
 |
IP66 |
| 56SO610 |
10A |
500V |
1.5 |
6 |
6 |
 |
IP66 |
| 56SO710 |
10A |
500V |
1.5 |
6 |
7 |
 |
IP66 |
| 56SO720 |
20A |
500V |
2.5 |
6 |
7 |
 |
IP66 |
| Dimension diagram：x5 |
 |
The 56CV series includes an extended range of integrated switch sockets.Key lock OFF function is optional (if you want to order key lock type, marked with "CVK", such as：56CVK310）
|
Model
|
Switch Declaration
|
Rated Enclosed Thermal Current（A） |
Rated Operating Voltage Ue(-50Hz)(V) |
Utilization Category
|
M Rate |
Solid or Stranded Cable cross section mm2
|
Socket Pins（include grounding） |
Pins configuration |
IP Grade
|
| AC21A |
AC22A |
AC23A |
Minimum |
Maximum |
| 56CV310 |
1P |
10A |
250V |
10 |
8 |
8 |
M80 |
1.5 |
6 |
3 |
 |
IP66 |
| 56CV310L |
1P |
10A |
250V |
10 |
8 |
8 |
M80 |
1.5 |
6 |
3 |
 |
IP66 |
| 56CV315 |
1P |
15A |
250V |
15 |
10 |
8 |
M80 |
1.5 |
6 |
2 |
 |
IP66 |
| 56CV320F |
1P |
20A |
250V |
20 |
20 |
20 |
M150 |
2.5 |
6 |
3 |
 |
IP66 |
| 56CV315RP |
1P |
15A |
250V |
15 |
10 |
8 |
M80 |
1.5 |
6 |
3 |
 |
IP66 |
56CV310F**
|
1P |
10A |
250V |
10 |
8 |
8 |
M80 |
1.5 |
6 |
3 |
 |
IP66 |
56CV316F**
|
1P |
16A |
250V |
16 |
10 |
8 |
M80 |
1.5 |
6 |
3 |
 |
IP66 |
56CV313*
|
1P |
13A |
250V |
13 |
10 |
8 |
M80 |
1.5 |
6 |
3 |
 |
IP66 |
56CV313T*
|
1P |
13A |
250V |
13 |
10 |
8 |
M80 |
1.5 |
6 |
3 |
 |
IP66 |
56CV320
|
1P |
20A |
250V |
20 |
20 |
20 |
M150 |
2.5 |
6 |
3 |
 |
IP66 |
| 56CV332 |
1P |
32A |
250V |
32 |
32 |
28 |
M180 |
6 |
16 |
3 |
 |
IP66 |
| 56CV410 |
3P |
10A |
500V |
10 |
10 |
10 |
M100 |
1.5 |
6 |
4 |
 |
IP66 |
| 56CV420 |
3P |
20A |
500V |
20 |
20 |
20 |
M150 |
2.5 |
6 |
4 |
 |
IP66 |
| 56CV432 |
3P |
32A |
500V |
32 |
32 |
28 |
M180 |
4 |
16 |
4 |
 |
IP66 |
| 56CV440 |
3P |
40A |
500V |
40 |
40 |
35 |
M200 |
10 |
16 |
4 |
 |
IP66 |
| 56CV450 |
3P |
50A |
500V |
50 |
50 |
35 |
M200 |
10 |
16 |
4 |
 |
IP66 |
| 56CV510 |
3P |
10A |
500V |
10 |
10 |
10 |
M100 |
1.5 |
6 |
5 |
 |
IP66 |
| 56CV520 |
3P |
20A |
500V |
20 |
20 |
20 |
M150 |
2.5 |
6 |
5 |
 |
IP66 |
| 56CV532 |
3P |
32A |
500V |
32 |
32 |
28 |
M180 |
4 |
16 |
5 |
 |
IP66 |
| 56CV540 |
3P |
40A |
500V |
40 |
40 |
35 |
M200 |
10 |
16 |
5 |
 |
IP66 |
| 56CV550 |
3P |
50A |
500V |
50 |
50 |
35 |
M200 |
10 |
16 |
5 |
 |
IP66 |
| 56CV610 |
3P |
10A |
500V |
10 |
10 |
10 |
M100 |
1.5 |
6/2.5 |
6 |
 |
IP66 |
| 56CV710 |
3P |
10A |
500V |
10 |
10 |
10 |
M100 |
1.5 |
6/2.5 |
7 |
 |
IP66 |
| 56CV720 |
3P |
20A |
500V |
20 |
20 |
20 |
M150 |
2.5 |
6/2.5 |
7 |
 |
IP66 |
| Dimension diagram：x6 |
| 56TXO-DG |
56TXO313 |
 |
56TXO-DG
Socket
15A-250V~
IP55
Meet the multi-function standard |
56TXO-313
Socket
13A-250~
IP55
Meet British standard BS1363 |
| Dimension diagram：x7 |
| 56TXC-DG |
56TXC313 |
 |
56TXC-DG
Switch Socket
15A-250V~
IP55
Meet the multi-function standard
|
56TXC-313
Switch Socket
13A-250V~
IP55
Meet British standard BS1363 |
| Dimension diagram：x8 |
| 56/32 |
 |
56/32
Switch
10A-250~
IP56 |
| Dimension diagram：x9 |
| 56/32 |
 |
56/32
Switch
10A-250~
IP56 |
| Dimension diagram：x10 |
| 56/32 |
 |
56CSC-313T
13A-250V~
IP56
Meet British standard BS1363 |
| Dimension diagram：11 |
Dimension Diagram
 |
| Dimension diagram:x1 |
 |
| Dimension diagram:x2 |
 |
| Dimension diagram:x3 |
 |
| Dimension diagram:x4 |
 |
| Dimension diagram:x5 |
  |
| Dimension diagram:x6 |
 |
| Dimension diagram:x7 |
 |
| Dimension diagram:x8 |
 |
| Dimension diagram:x9 |
 |
| Dimension diagram:x10 |
 |
| Dimension diagram:x11 |
Product package& size&weight
