Product technical parameters
Product Introduction

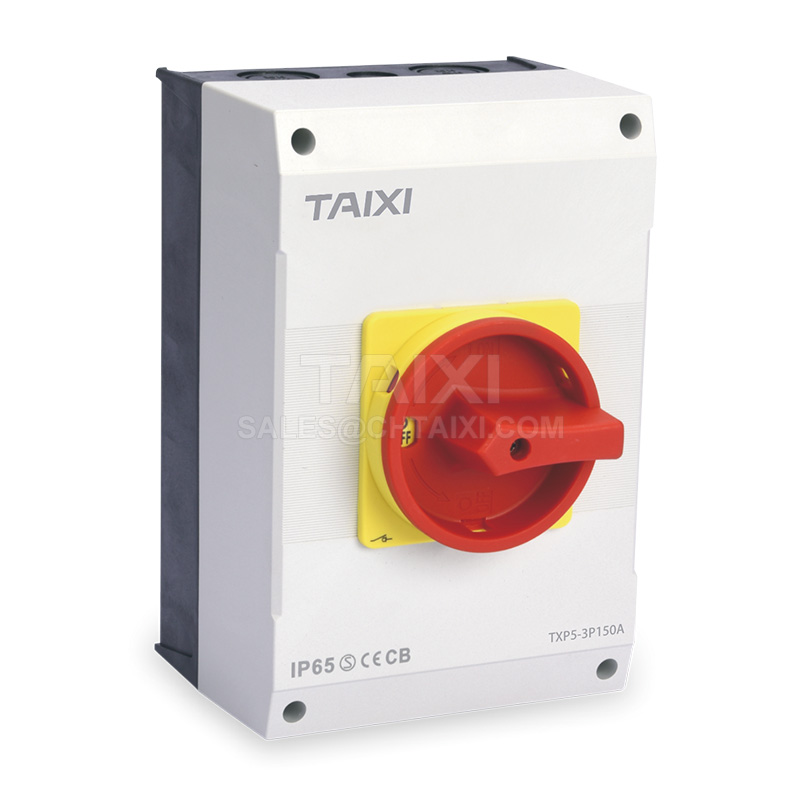

TXP3 Waterproof load isolating switch/waterproof isolating switch/dust-proof isolating switch/weather-resistant isolating switch/waterproof switch is suitable for resistance or resistance&inductance hybrid circuits that require frequent on-load ON/OFF operation. It can be used reliably in lighting equipment and industrial machinery equipment, and also in direct switching of AC3 and DC3 motors. Its high switching ability ensures the reliability of frequent ON/OFF operation; when used as maintenance switch and insurance switch, three padlocks can be installed in the "O" part to ensure the personal safety of users.
TXP3 Waterproof load isolating switch adopts five-proof design, which has better waterproof and dust-proof function, can effectively prevent dust and oil pollution from entering, and will not affect the performance of the product in case of rainwater or strong sprinkler water; Also, it has anti-corrosion, anti-ultraviolet, cold and high temperature resistance, anti-aging and other characteristics; It can satisfy all the increasing outdoor power demand of people, and perfectly solve the puzzlement of safe power consumption in rainwater, dust, freezing, high corrosion, strong ultraviolet radiation and other harsh environments, without affecting the performance of switches, reliable and safe protection, simple and fast operation, and can effectively protect the safety of people and circuits and facilities.
Model & SPEC Table
| A |
V(AC) |
Article Number |
| 3P |
4P |
| 10 |
230-440 |
TXP0-310 |
TXP0-410 |
| 16 |
230-440 |
TXP0-316 |
TXP0-416 |
| 20 |
230-440 |
TXP0-320 |
TXP0-420 |
| 20 |
230-440 |
TXP1-320 |
TXP1-420 |
| 25 |
230-440 |
TXP1-325 |
TXP1-425
|
| 32 |
230-440 |
TXP1-325 |
TXP1-432 |
| 32 |
230-440 |
TXP3-332 |
TXP3-432 |
| 40 |
230-440 |
TXP3-340 |
TXP3-440 |
| 50 |
230-440 |
TXP3-350 |
TXP3-450
|
| 63 |
230-440 |
TXP3-363 |
TXP3-463 |
| 63 |
230-440 |
TXP5-363 |
TXP5-463 |
| 80 |
230-440 |
TXP5-380 |
TXP5-480 |
| 100 |
230-440 |
TXP5-3100 |
TXP5-4100 |
| 125 |
230-440 |
TXP5-3125 |
TXP5-4125 |
| 150 |
230-440 |
TXP5-3150 |
TXP5-4150 |
△IP 65

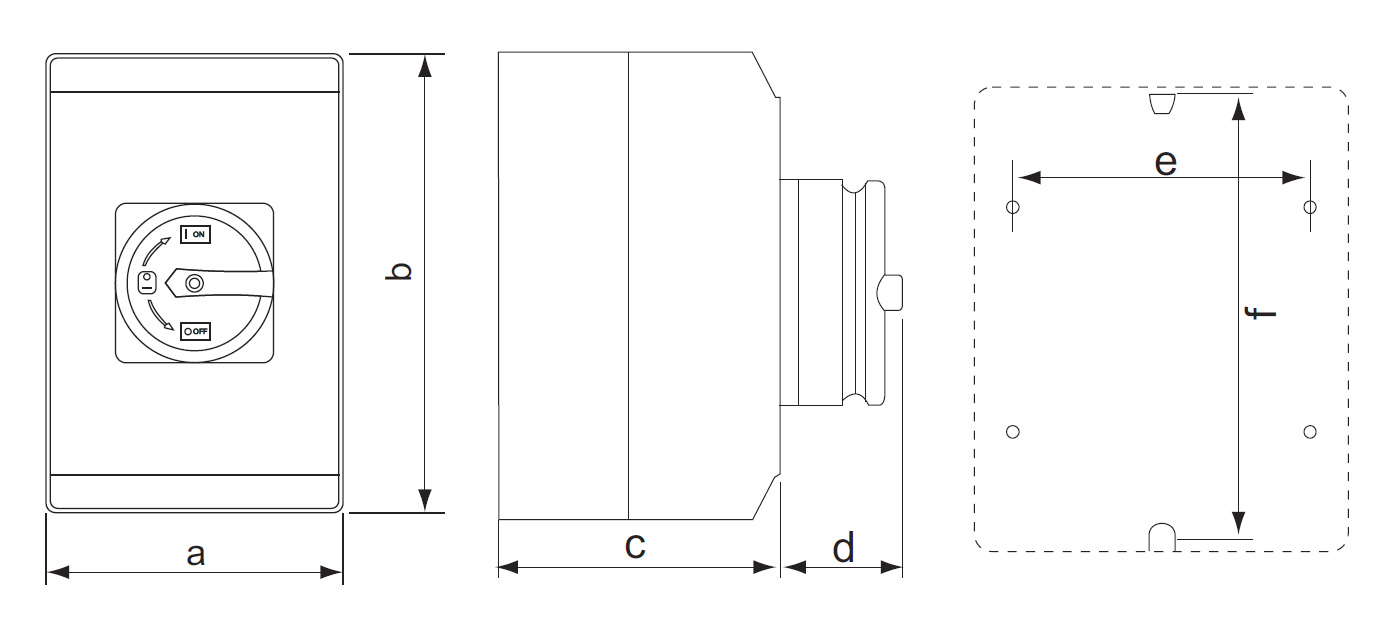

Dimension diagram：gl001
|
Structure Diagram
| Dimension diagram：gl001 |
| Current(A) |
TXP0 |
TXP1 |
TXP3 |
TXP5 |
| Dimensions |
a |
80 |
101 |
116 |
160 |
| b |
101 |
126 |
176 |
240 |
| c |
66 |
86 |
101 |
122 |
| d |
35 |
35 |
35 |
37 |
| e |
60 |
80 |
90 |
142 |
| f |
60 |
115 |
165 |
193 |
Product package& size&weight
