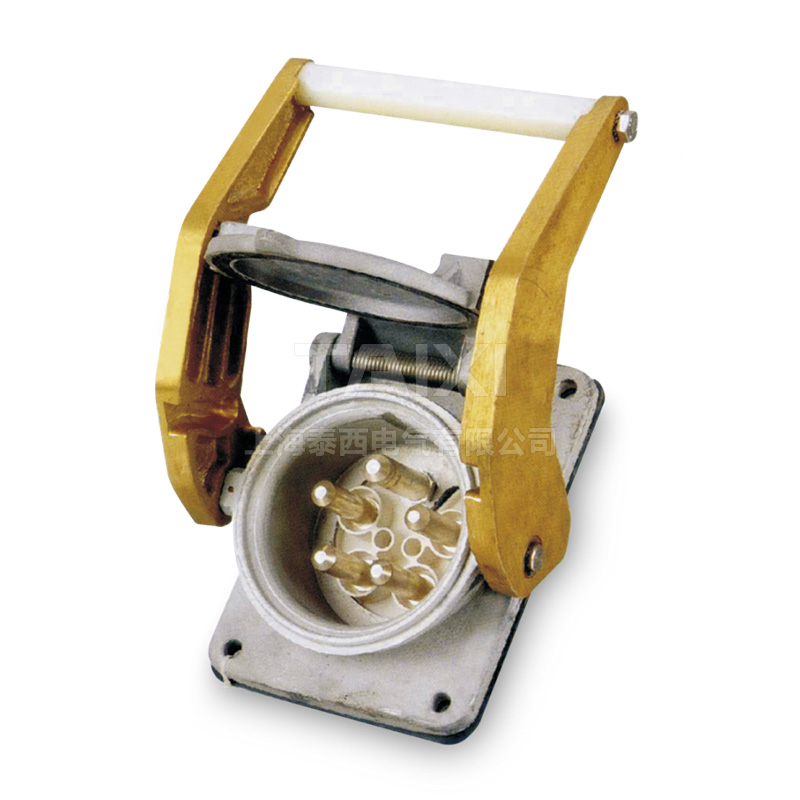

Large Current Plug
Widely used in buildings, factories, outdoor power distribution, and other places with high humidity and dust

IP65
4P
125A
400V

Email: SALES@CHTAIXI.COM
WhatsApp: 0086-15669851253
Skype: TAIXI WATERPROOF

READ PDF DOWNLOAD PDF
  • Product technical
    parameters
  • Product package&
    size&weight
  • Relevant
    information
  • Product related
    video
Product technical parameters

Product Introduction

4021/4031 type large current plug, maximum current of large current industrial waterproof plug and socket connector is up to 420A, the general current is divided into 160A,200A,250A,320A,420A.

Model & Specification

250A/4P-4021 IP66 400V
250A/5P-4031 IP66 400V
320A/4P-4041 IP66 400V
420A/4P-4051 IP66 400V
420A/5P-4061 IP66 400V
160A/4P-4102 IP66 400V
200A/4P-4112 IP66 400V
250A/4P-4122 IP66 400V
250A/4P-4132 IP66 400V
320A/4P-4072 IP66 400V
420A/4P-4082 IP66 400V
420A/5P-4092 IP66 400V

Model & SPEC Table

A P 110V 230V 400V 500V >50-500V

50 a. 60HZ

 50 a. 60HZ 50 a. 60HZ 50 a. 60HZ 100-300Hz 300-500Hz
250 4     4021
250 5     4031

△IP 66
CEE/IEC Large current plug
Dimension diagram：J001
A P 110V 230V 400V 500V >50-500V

50 a. 60HZ

 50 a. 60HZ 50 a. 60HZ 50 a. 60HZ 100-300Hz 300-500Hz
320 4     4041
420 4     4051
420 5     4061

△IP 66
CEE/IEC Large current plug
Dimension diagram：J003
A P 110V 230V 400V 500V >50-500V

50 a. 60HZ

 50 a. 60HZ 50 a. 60HZ 50 a. 60HZ 100-300Hz 300-500Hz
160 4     4102
200 4     4112
250 4     4122
250 5     4132
320 4     4072
420 4     4082
420 5     4092

△IP 66
CEE/IEC Large current plug for device
Dimension diagram：J006

Dimension Diagram

Dimension diagram：J001
Current(A) 250
Pole(P) 4 5
Dimensions a 209.5 209.5
b Φ131 Φ131
Max. cable diameter（mm）
Cross-sectional area of wire（mm2）
Minimum to Maximum
 70-90
Dimension diagram：J003
Current(A) 320 420
Pole(P) 4 4 5
Dimensions a 366 366 366
b 200 200 200
c 300 300 300
Max. cable diameter（mm）
Cross-sectional area of wire（mm2）
Minimum to Maximum
 90-120
Dimension diagram：J006
Current(A) 160 200 250 320 420
Pole(P) 4 4 4 5 4 4 5
Dimensions a 132.25 132.25 132.25 132.25 396 396 396
b 130.25 130.25 130.25 130.25 252 252 252
c 122.75 122.75 122.75 122.75 138 138 138
d 92 92 92 92 228 228 228
e 92 92 92 92 208 208 208
Max. cable diameter（mm）
Cross-sectional area of wire（mm2）
Minimum to Maximum
 35 50 70-90 90-120
Product package& size&weight
Relevant information
Product related< video
keywords: Large Current Waterproof Plug
