Low Voltage Socket Coupler

IP44
3P
16A
110V

Email: SALES@CHTAIXI.COM
WhatsApp: 0086-15669851253
Skype: TAIXI WATERPROOF

READ PDF DOWNLOAD PDF
  • Product technical
    parameters
  • Product package&
    size&weight
  • Relevant
    information
  • Product related
    video
Product technical parameters

Product Introduction

IP44 Low Voltage Plug

Model & Specification

16A/2P-681 IP44 20-25V
16A/2P-688 IP44 40-50V
16A/3P-688 IP44 20-25V
16A/3P-689 IP44 40-50V
32A/2P-694 IP44 20-25V
32A/2P-695 IP44 40-50V
32A/3P-701 IP44 20-25V
32A/3P-702 IP44 40-50

Model & SPEC Table

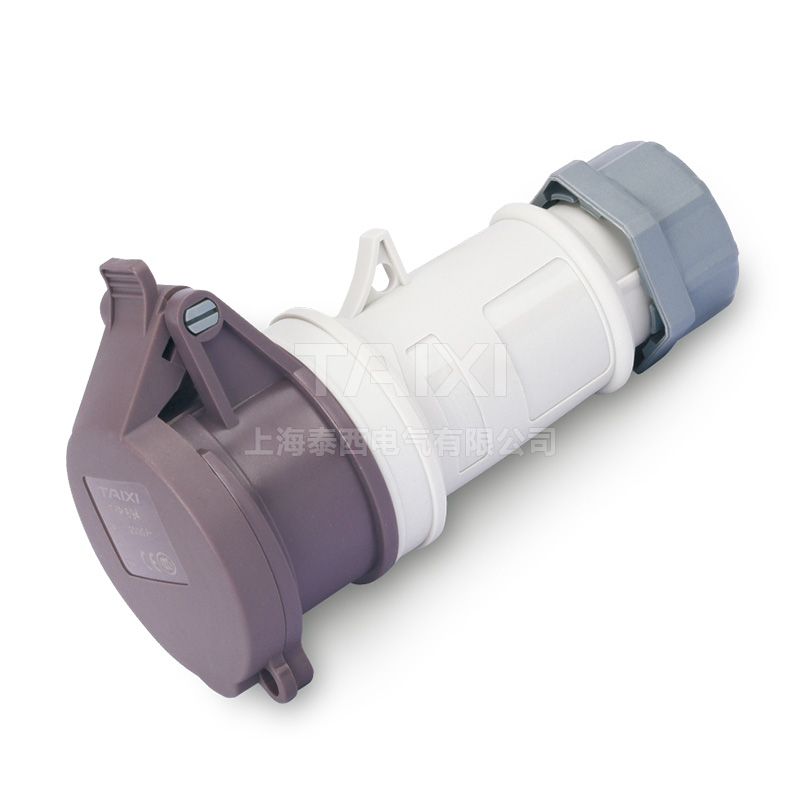

A P 20-25V 40-50V

50 a. 60HZ

 		50 a. 60HZ
16 2 681 682
16 3 688 689
32 2 694 695
32a 3 701 702

△IP 44
CEE/IEC Low voltage connector
Dimension diagram：H001

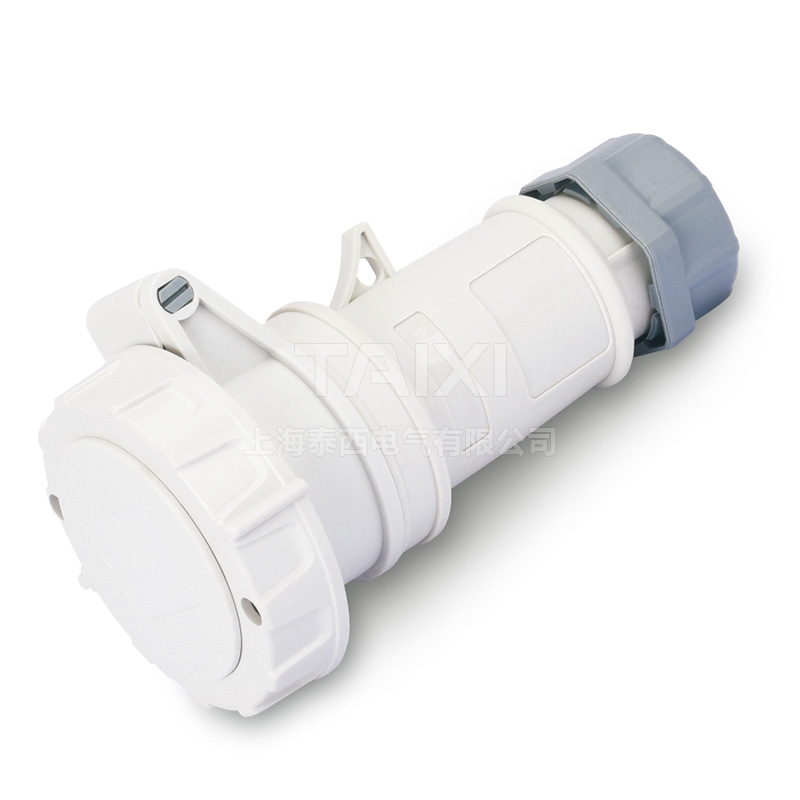

A P 20-25V 40-50V

50 a. 60HZ

 		50 a. 60HZ
16 2 681a 682a
16 3 688a 689a
32 2 694a 695a
32a 3 701a 702a

△IP 67
CEE/IEC Low voltage connector
Dimension diagram：H002

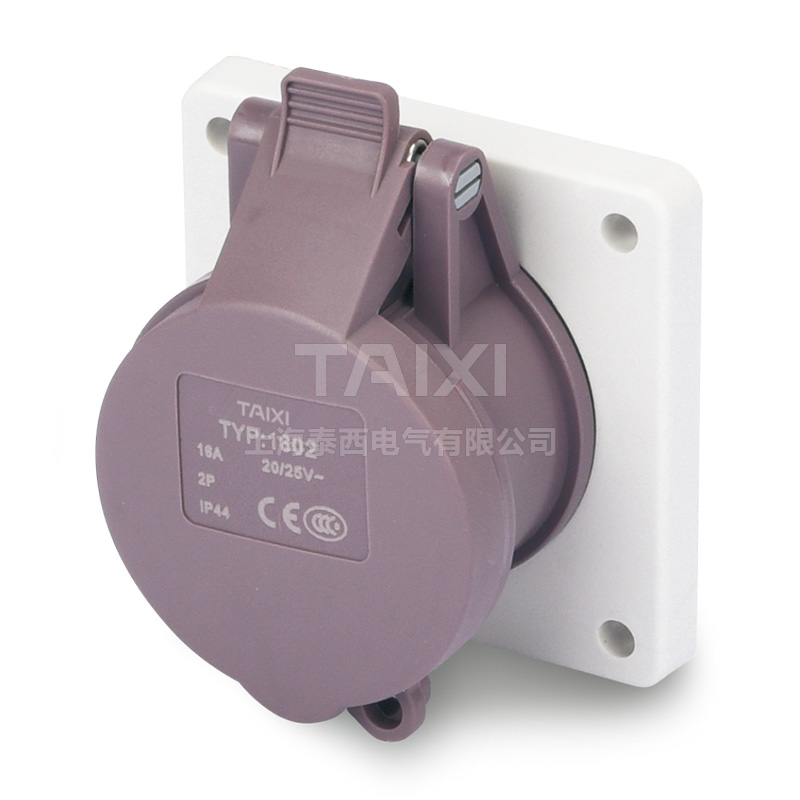

A P 20-25V 40-50V

50 a. 60HZ

 		50 a. 60HZ
16 2 1602 1603
16 3 1657 1661
32 2 1693 3290
32 3 1694 1695

△IP 44
CEE/IEC Low voltage socket
Dimension diagram：I001

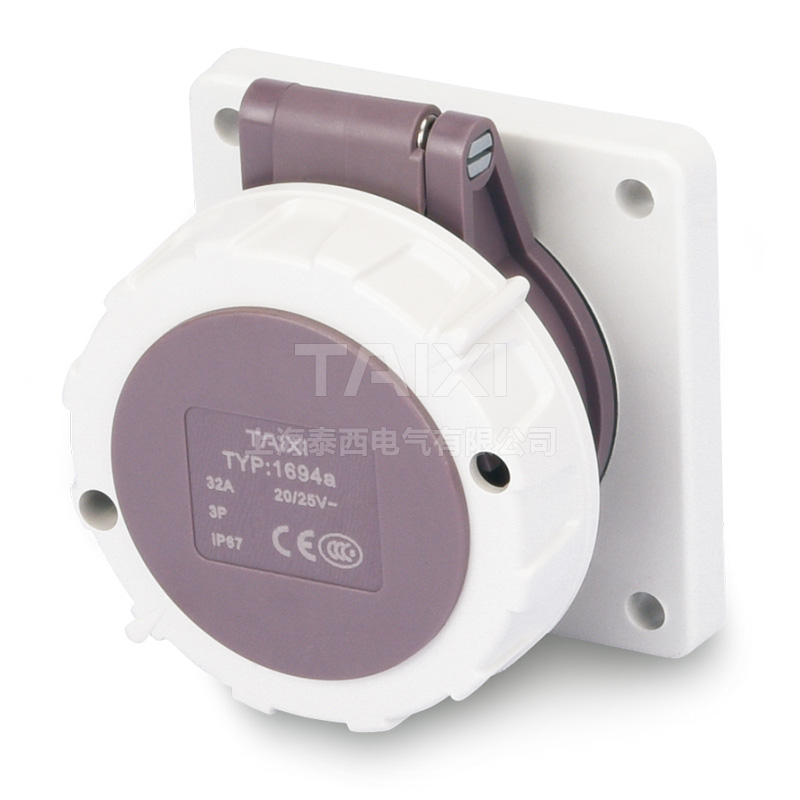

A P 20-25V 40-50V

50 a. 60HZ

 		50 a. 60HZ
16 2 1602a 1603a
16 3 1657a 1661a
32 2 1693a 3290a
32 3 1694a 1695a

△IP 67
CEE/IEC Low voltage socket
Dimension diagram：I002

Dimension Diagram

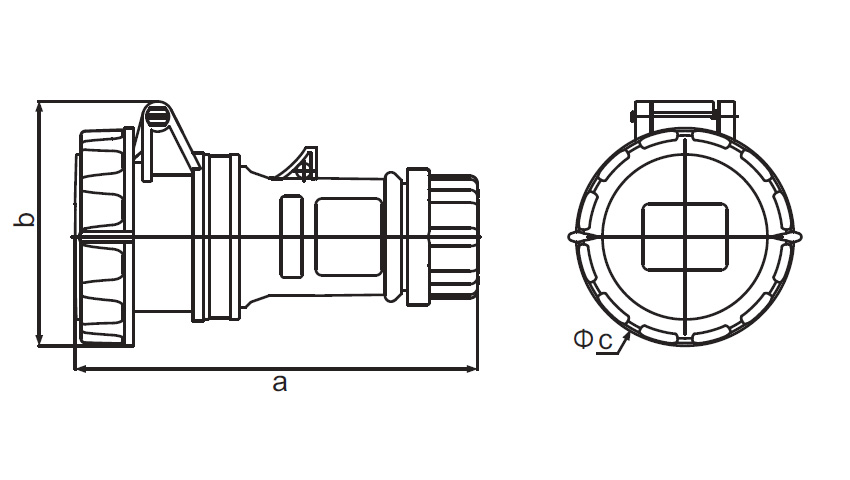

Dimension diagram：H001
Current(A) 16 32
Pole(P) 2 3 2 3
Dimensions
 a 132 132 132 132
b 73.5 73.5 73.5 73.5
c 50 50 50 50

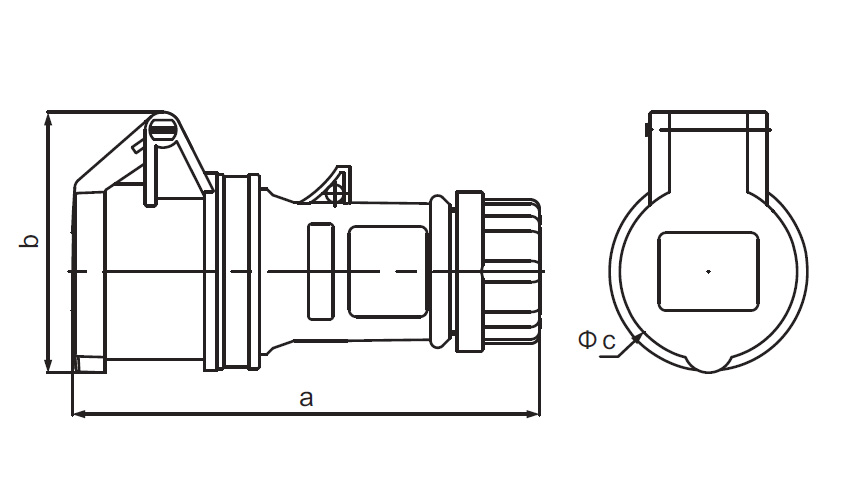

Dimension diagram：H002
Current(A) 16 32
Pole(P) 2 3 2 3
Dimensionsa 134 134 134 134
b 81 81 81 874
c 72 72 72 72

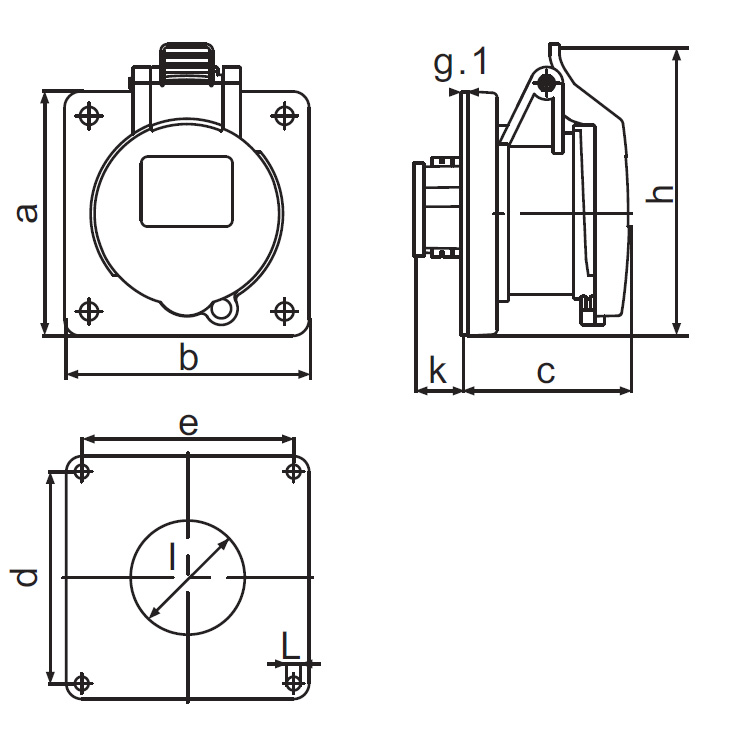

Dimension diagram：I001
Current(A) 16 32
Pole(P) 2 3 2 3
Dimensions
 a 75 75 75 75
b 75 75 75 75
c 51.5 51.5 51.5 51.5
d 60 60 60 60
e 60 60 60 60
f 4.2 4.2 4.2 4.2
g. 11 11 11 11
g.1 2 2 2 2
h 88 88 88 88
l 55 55 55 55
k 14.5 14.5 14.5 14.5
Cross-sectional area of wire（mm2）
Minimum to Maximum
 1.5-2.5 1.5-2.5 4-6 4-6

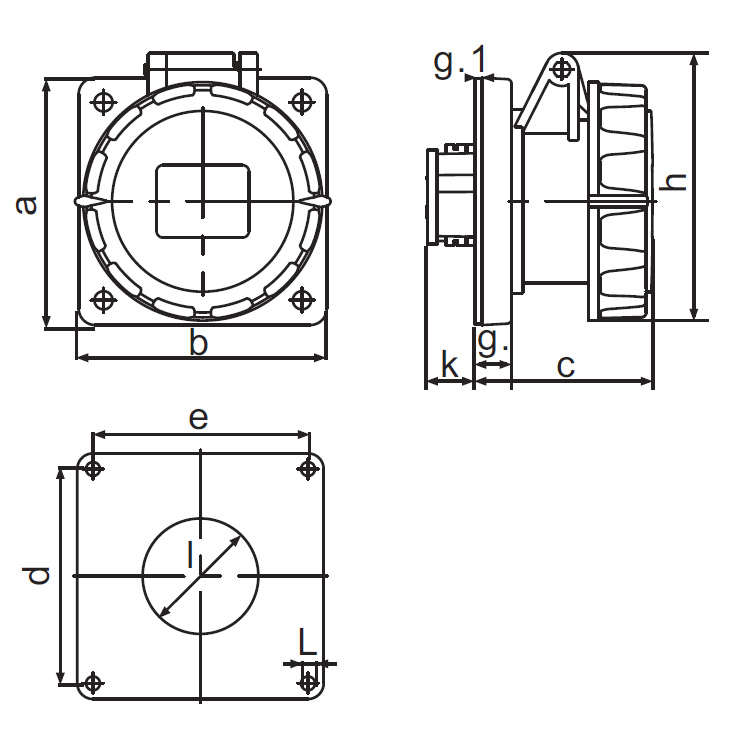

Dimension diagram：I002
Current(A) 16 32
Pole(P) 2 3 2 3
Dimensions
 a 75 75 75 75
b 75 75 75 75
c 53.5 53.5 53.5 53.5
d 60 60 60 60
e 60 60 60 60
f 4.2 4.2 4.2 4.2
g. 11 11 11 11
g.1 2 2 2 2
h 81 81 81 81
l 55 55 55 55
k 14.5 14.5 14.5 14.5
Cross-sectional area of wire（mm2）
Minimum to Maximum
 1.5-2.5 1.5-2.5 4-6 4-6
