TXP Industry Waterproof Plug
Widely used in buildings, factories, outdoor power distribution, and other places with high humidity and dust

IP44
2P
16A
110V

Email: SALES@CHTAIXI.COM
WhatsApp: 0086-15669851253
Skype: TAIXI WATERPROOF

READ PDF DOWNLOAD PDF
  • Product technical
    parameters
  • Product package&
    size&weight
  • Relevant
    information
  • Product related
    video
Product technical parameters

Product Introduction

Industrial Plug is also known as Industrial Waterproof Plug, IEC309 Plug & Socket, and European (Euro) industrial Plug, that is to say European standard industrial Plug, due to the Waterproof and dustproof features, it is widely used in the field of industrial power distribution. The main functions of the industrial waterproof plug are power connection, power input and distribution.
The plug and socket for industrial use are electrical accessories, which are suitable for the electrical connection of mobile mechanical and electrical equipment with electric power as power source. Product design in accordance with GB11918~11919, and in line with IEC309-1. Compared with the traditional plug and socket in line with GB1002, it has the advantages of waterproof, dustproof, fully closed structure, electric shock proof, anti-falling off and other safety protection structure; It performs better in electrical contact and mechanical strength, and more than five times of service life than traditional product. It is able to be used interchangeably with import similar products, to fill the blank in the domestic market.

Materials & Features

1. Housings: The housings of waterproof plugs and sockets are made of high quality imported plastic (nylon) which can achieve no deformations at 90℃ and no changes of technical indexes at -40℃ in normal situation.

2. Core parts: The core parts of waterproof plugs and sockets are made of fire-proof plastic (nylon) which can withstand 120℃ in normal situation. In the flame retardant test (hot filament at 850℃), no visible flame, no persistent glow, silk paper does not fire, the flame extinguishes within 30 seconds after the hot filament is removed, and the glow extinguishes.

3. Pin and contact-tube accessories: Adopting high quality imported copper, with good plugging and anti-corrosion features. Overcurrent and overvoltage withstanding have reached the advanced level of China.

Parameters

Service Temperature：-30℃~+60℃，Maximum+80℃；
Rated Voltage：20V~25V、40V~50V、100V~130V、200V~250V、380V~415V、480V~500V、600V~690V；
Rated Frequency：50/60Hz、100Hz、300Hz、300-500Hz；
Rated current：16A、32A、63A、125A、200A、250A、400A、600A、1000A；
No. of Pole：2P、2P+PE、3P+PE、3P+N+PE；
No. of Clock Point：2h、3h、4h、5h、6h、7h、8h、9h、10h、11h；
Protection Grade：IP44、IP55、IP67
Temperature Rise：<50K
Impact Strength：>10Nm
Heat-resistant：≥125℃
Flame-resistant：V0 grade

Model & Specification

16A/3P-248 IP44 230V
16A/4P-252 IP44 400V
16A/5P-3 IP44 400V
32A/3P-260 IP44 230V
32A/4P-264 IP44 400V
32A/5P-4 IP44 400V

Protection Level Description

Industrial waterproof plugs are classified into IP44, IP55 and IP67.

IP44: Waterproof industrial plugs can prevent the harm of water spraying in all directions and solids above 1mm. Commonly used industries include automatic production equipment, packaging equipment, injection moulding machine, stage lighting and sound, construction machinery, generator set, distribution cabinet, etc.

IP55: Waterproof industrial plugs can prevent the harm of low-pressure water spraying in all directions and dust hazards. Common industries are: car cleaning equipment, spraying equipment, etc.

IP67: Waterproof industrial plugs can prevent the harm of submergence below 15cm (immersion time 30 minutes) and completely prevent the impact of dust hazards. Common industries are: mining machinery, outdoor sports field transmission and distribution equipment, etc.

Scope of Application

Industrial waterproof plug Waterproof Plug is suitable for industrial, agricultural, chemical, food, airport, wharf, ship, metallurgy, power plant, construction and tertiary industry and other indoor and outdoor places.

The state has formulated a new national standard for the popularization and application of industrial waterproof plugs, so the technology of this product in China is relatively advanced.

Model & SPEC Table

A P 110V 230V 400V 500V >50-500V

50 a. 60HZ

 50 a. 60HZ 50 a. 60HZ 50 a. 60HZ 100-300Hz 300-500Hz
16 3 247 248 249   2168 2271
16 4 250 251 252 253 254 255
16 5 256 257 3 2014 2189 2242
32 3 259 260 261   2195 2341
32 4 262 263 264 265 266 267
32 5 268 269 4 215 2244 2187

△IP44
CEE/IEC Industrial waterproof plug, with screw terminal, one-piece housing structure.
Dimension diagram: A001 (click to view)
A P 110V 230V 400V 500V >50-500V

50 a. 60HZ

 50 a. 60HZ 50 a. 60HZ 50 a. 60HZ 100-300Hz 300-500Hz
16 3 147 148 149*
16 4 250* 151 152 153
16 5 154* 155* 13
32 3 159 160 161*
32 4 162* 163 164 165
32 5 166* 167* 14

△IP44
CEE/IEC Industrial waterproof plug, with screw terminal, time-saving housing structure.
Dimension diagram：A002（click to view）
A P 110V 230V 400V 500V >50-500V

50 a. 60HZ

 50 a. 60HZ 50 a. 60HZ 50 a. 60HZ 100-300Hz 300-500Hz
63 3 1226 1227 1228
63 4 1229 1230 1231 1232
63 5 1233 1234 1235

△IP 44
CEE/IEC Industrial waterproof plug, with external cable fastening device and heat-resistant contact carrier, nickel plated pin
Dimension diagram：A003（click to view） Structure diagram 01（click to view）
A P 110V 230V 400V 500V >50-500V

50 a. 60HZ

 50 a. 60HZ 50 a. 60HZ 50 a. 60HZ 100-300Hz 300-500Hz
16 3 277 278 279
16 4 280 281 282 283 284
16 5 286 287 288
32 3 289 290 291
32 4 292 293 294 295 296
32 5 298 299 300

△IP 67
CEE/IEC Industrial waterproof plug, with screw terminal, one-piece housing structure.
Dimension diagram：A004（click to view）Structure diagram 02（click to view）
A P 110V 230V 400V 500V >50-500V

50 a. 60HZ

 50 a. 60HZ 50 a. 60HZ 50 a. 60HZ 100-300Hz 300-500Hz
16 3 147a 148a 149a
16 4 150a 151a 152a 153a
16 5 154a 155a 13a
32 3 159a 160a 161a
32 4 162a 163a 164a 165a
32 5 166a 167a 14a

△IP 67
CEEIEC Industrial waterproof plug, with screw terminal, time-saving housing structure.
Dimension diagram：A005（click to view）Structure diagram 02（click to view）
A P 110V 230V 400V 500V >50-500V

50 a. 60HZ

 50 a. 60HZ 50 a. 60HZ 50 a. 60HZ 100-300Hz 300-500Hz
63 3 1570 1571 1572
63 4 1108 1109 1110 1111
63 5 1112 1113 1114 2958
125 3 3399 3400
125 4 1441 1442 1443 1444
125 5 1445 1446 1447 3173

△IP 67
CEE/IEC Industrial waterproof plug, with external cable fastening device and heat-resistant contact carrier, nickel plated pin
Dimension diagram：A006 Structure diagram 02（click to view）
A P 110V 230V 400V 500V >50-500V

50 a. 60HZ

 50 a. 60HZ 50 a. 60HZ 50 a. 60HZ 100-300Hz 300-500Hz
16 4   338 339
16 5   318 319
32 4   396 397
32 5   321 322

△IP 44
CEE/IEC Phase-switching industrial waterproof plug, with screw terminal, one-piece housing structure.
Dimension diagram：A007 Structure diagram 03（click to view）
A P 110V 230V 400V 500V >50-500V

50 a. 60HZ

 50 a. 60HZ 50 a. 60HZ 50 a. 60HZ 100-300Hz 300-500Hz
16 4   3338 3339
16 5     325
32 4   3340 3341
32 5   327 328

△IP 67

CEE/IEC Phase-switching industrial waterproof plug, with screw terminal, one-piece housing structure.
Dimension diagram：A008 Structure diagram 03（click to view）

Dimension Diagram

Dimension diagram：A001 Industrial Waterproof Plug
Current(A) 16 32
Pole(P) 3 4 5 3 4 5
Dimensions a 131 136 136 175 173.3 180
b 94.5 99 99 129 127.4 134
c 59.2 68 76 81 81 89
d 54 60 67 70.5 70.5 77.6
Cross-sectional area of wire（mm2）
Minimum to Maximum		 1.5-4 1.5-4 1.5-4 2.5-10 2.5-10 2.5-10
Parameters（click to view）
Dimension diagram：A002 Industrial Waterproof Plug
Current(A)
 16 32
Pole(P) 3 4 5 3 4 5
Dimensions a 135.5 135.5 140.5 165.5 165 167.5
b 95.5 99 104 117 116.5 122
c 61 67.5 75.8 81 81 89
d 54 60 68 71 71.3 77.8
Cross-sectional area of wire（mm2）
Minimum to Maximum
 1.5-4 1.5-4 1.5-4 2.5-10 2.5-10 2.5-10
Parameters（click to view）
Dimension diagram：A003 Industrial Waterproof Plug
Current(A) 63
Pole(P) 3 4 5
Dimensions a 239 238.3 239
b 172.7 172.3 173
c 100.5 100.7 100.5
d 102.3 102.5 102.3
Cross-sectional area of wire（mm2）
Minimum to Maximum
 6-25 6-25 6-25
Parameters（click to view）
Dimension diagram：A004 Industrial Waterproof Plug
Current(A) 16 32
Pole(P) 3 4 5 3 4 5
Dimensions a 131 136 136 175 175 181.6
b 87.5 92.5 92 121.5 121.5 124.8
d 72.15 79.6 87.2 94.4 94.4 101
Cross-sectional area of wire（mm2）
Minimum to Maximum		 1.5-4 1.5-4 1.5-4 2.5-10 2.5-10 2.5-10
Parameters（click to view））
Dimension diagram：A005 Industrial Waterproof Plug
Current(A) 16 32
Pole(P) 3 4 5 3 4 5
Dimensions a 130.5 135.5 140.5 157.5 157.5 167.5
b 84 89 94 104 104 114
d 72.3 78 87 93 93 100
Cross-sectional area of wire（mm2）
Minimum to Maximum		 1.5-4 1.5-4 1.5-4 2.5-10 2.5-10 2.5-10
Parameters（click to view）
Dimension diagram：A006 Industrial Waterproof Plug
Current(A) 63 125
Pole(P) 3 4 5 3 4 5
Dimesions a 238.3 238 239 191.1 291.1 293
b 157.3 157 157 210 210 202
d 112 112 112 131 131 131
Cross-sectional area of wire（mm2）
Minimum to Maximum		 6-25 6-25 6-25 25-70 25-70 25-70
Parameters（click to view）
Dimension diagram：A007 Industrial Waterproof Plug
Current(A) 16 32
Pole(P) 4 5 4 5
Dimensions a 144 147 186 180
b 110.5 110.5 141 135
c 69.4 76 81 89.5
d 59 67 70 77
Cross-sectional area of wire（mm2））
Minimum to Maximum		 1.5-4 1.5-4 2.5-10 2.5-10
Parameters（click to view）
Dimension diagram：A008 Industrial Waterproof Plug
Current(A) 16 32
Pole(P) 4 5 4 5
Dimensions a 144 147 186 180
b 102.5 102.5 133 129
d 78 87 94 101
Cross-sectional area of wire（mm2）
Minimum to Maximum		 1.5-4 1.5-4 2.5-10 2.5-10
Parameters（click to view）

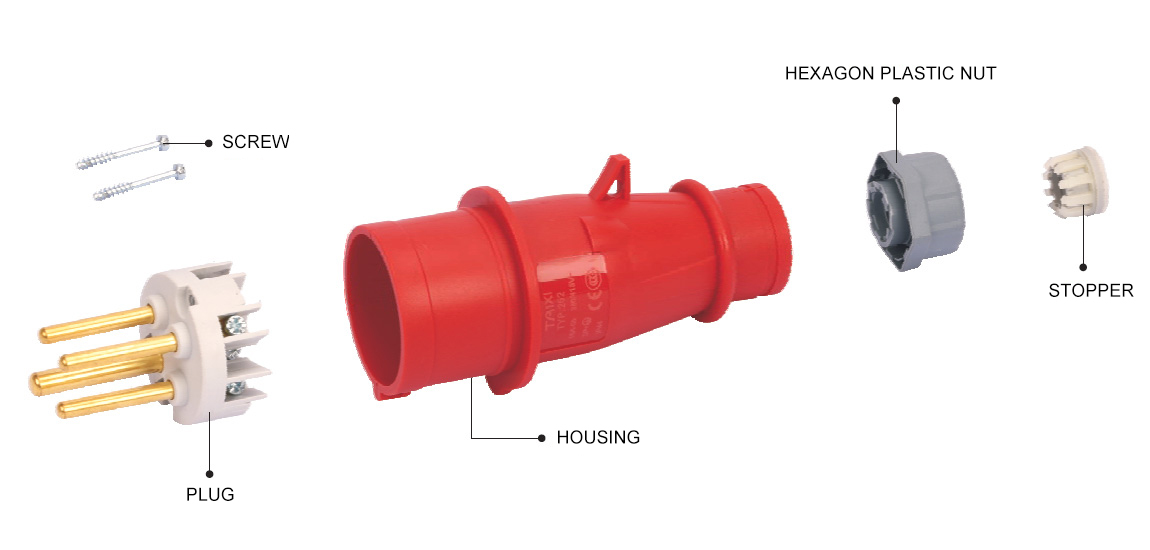

Structure Diagram

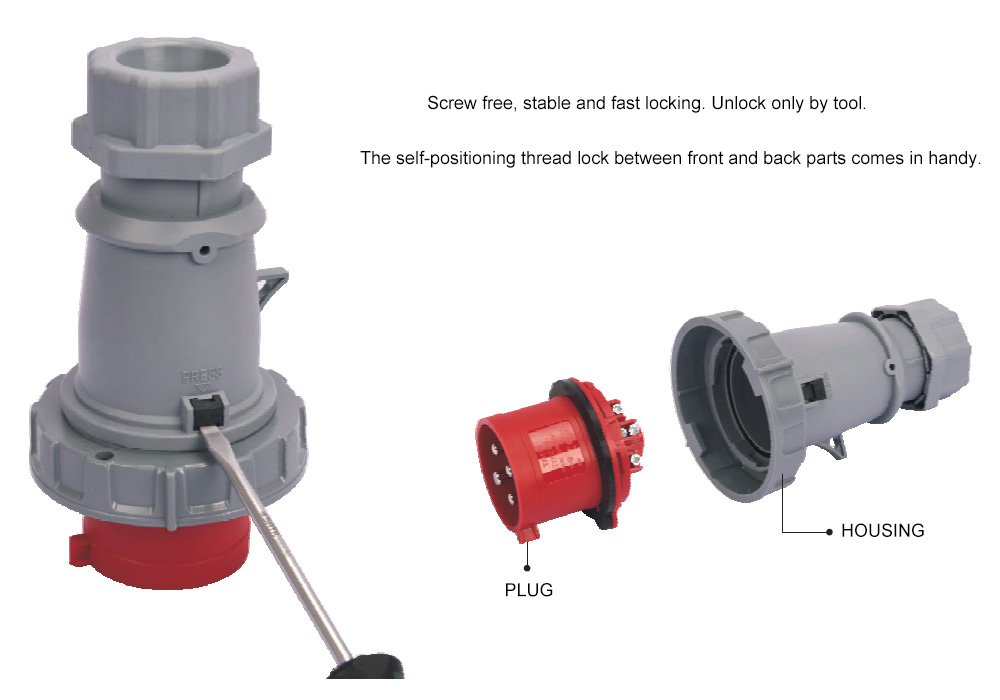

Structure diagram 01
Structure diagram 02

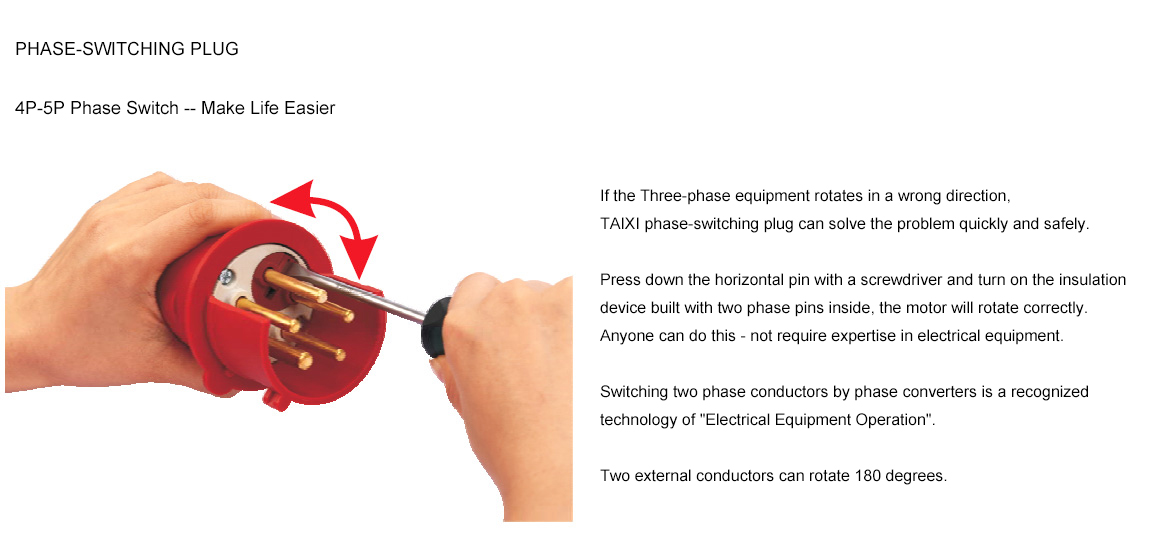

Structure diagram 03
Product package& size&weight
Relevant information
Product related< video
keywords: Industrial Waterproof Plug
