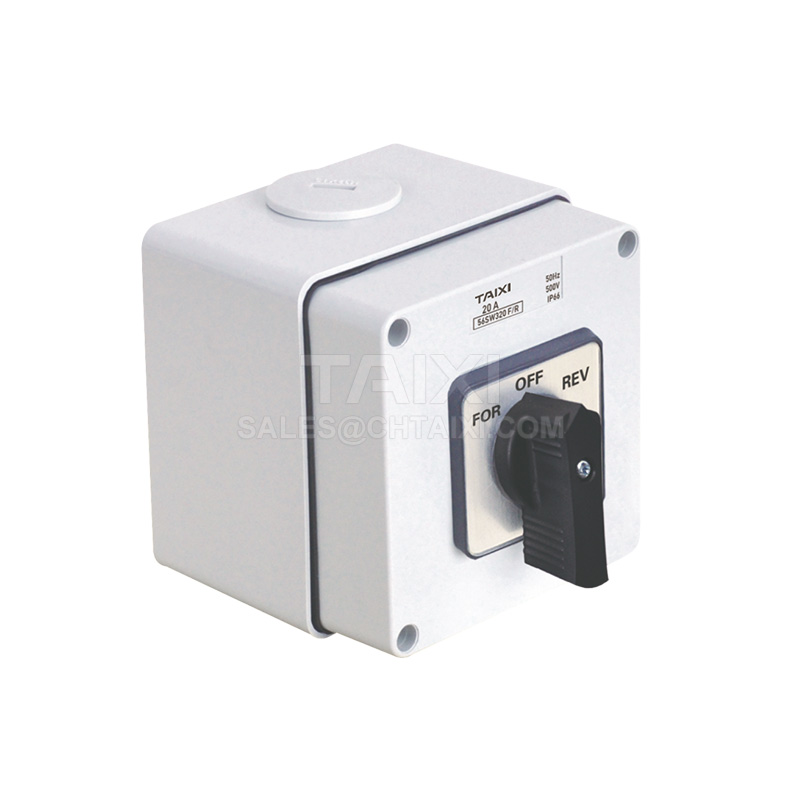

56SW Waterproof Motor Reversing Switch
Product technical parameters
Product Introduction
The switch is mainly used in the electrical circuit for the power switch and control of motor, also for change over of electrical circuits.The switch is designed for motor control, protection class IP66, modular concept mounting, grounding and neutral connectors.This waterproof phase change switch can meet your requirements for switching devices in various harsh environments. It is easy to install and firm.Suitable for industrial environment.This product possesses moisture-proof, anti-corrosion, dustproof, anti-aging, impact resistance, unbreakable features, suitable for indoor and outdoor, is the promising new generation of power supply connection device.All products are in accordance with the national standard GB/T11918, GB/T11919 equivalent to IEC309 international standards. Different housing color distinguishs different voltage and frequency, models of plug and socket differs due to different clock position, different diameter, different polea, to prevent misplug, safe and reliable.
Range of Application
Outdoor occasions requiring switch sockets;All kinds of factories and laboratories;Places in harsh environments.This product is widely used in iron and steel smelting, petrochemical industry, electric power, electronics, railway, construction site, airport, mine, mining site, water supply and drainage treatment plant, port, wharf, shopping mall, Hotel and other industrial and mining enterprises as imported equipment power supply, connectors and maintenance equipment, is the ideal power supply device of the new generation.
Technical Parameters
| Model |
Rated Operating Voltage（V）
Ue（-50Hz） |
Rated Isolation Voltage（V）
Ui（-50Hz） |
Rated Enclosed Thermal Current（A） |
Solid or Stranded Cable Cross Section (mm2） |
Utilization Category |
| Minimum |
Maximum |
Resistance load switching includes a moderate overload
AC21A
415V（A） |
Motor or other inductance load switching
（KW）AC23A
415V |
Squirrel Cage Motor Switching
AC3415V（A） |
Rated short-term current resistance
1S KA |
Rated short-time making capacity（KAp） |
| 56SW320F/R |
500 |
660 |
20 |
1 |
6 |
20 |
7.5 |
5.5 |
1.5 |
22 |
| 56SW332C/O |
500 |
660 |
32 |
1 |
6 |
32 |
11 |
7.5 |
1.5 |
22 |
| 56SW340C/O |
500 |
660 |
40 |
6 |
10 |
40 |
15 |
11 |
1.5 |
50 |
| 56SW363C/O |
500 |
660 |
63 |
6 |
10 |
63 |
22 |
18.5 |
1.5 |
50 |

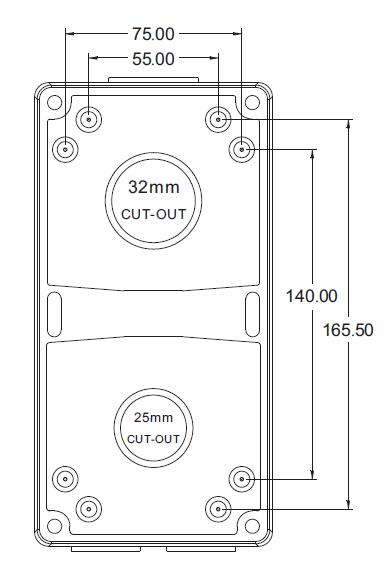

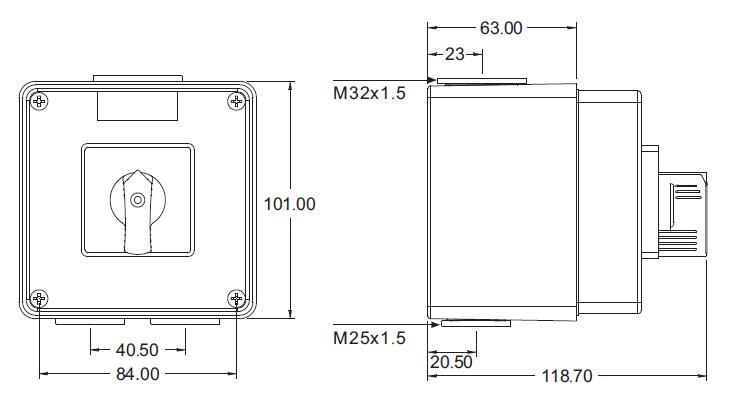

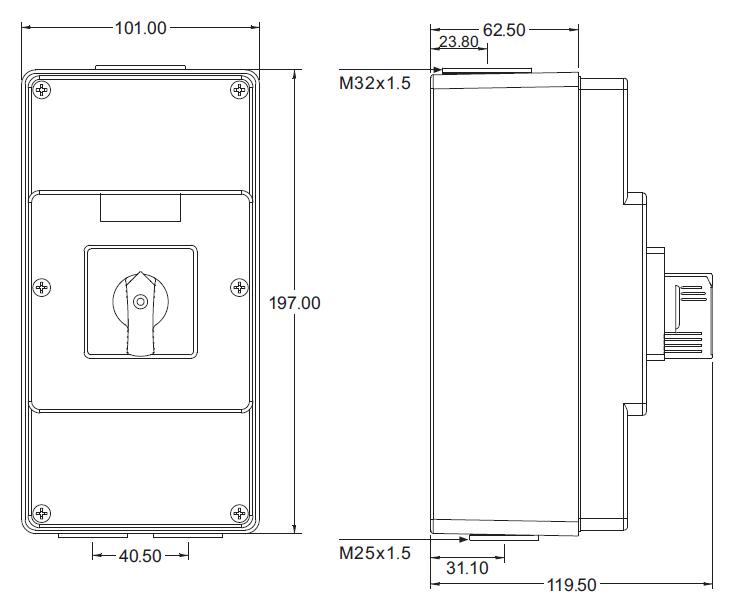

Product package& size&weight
