Concealed industrial plug
Widely used in buildings, factories, outdoor power distribution, and other places with high humidity and dust

IP44
3P
16A
230V

Email: SALES@CHTAIXI.COM
WhatsApp: 0086-15669851253
Skype: TAIXI WATERPROOF

READ PDF DOWNLOAD PDF
  • Product technical
    parameters
  • Product package&
    size&weight
  • Relevant
    information
  • Product related
    video
Product technical parameters

Product Introduction

Additional device plug, also known as concealed waterproof industrial plug, is divided into 3 pins, 4 pins, 5 pins, etc.

Rated current: 16A, 32A, 63A and 125A.
IP grade: IP44 and IP67.
The concealed waterproof industrial plugs are matched with industrial sockets and connectors.

Model & Specification

16A/3P-812 IP44 230V
16A/4P-813 IP44 400V
16A/5P-815 IP44 400V
32A/3P-817 IP44 230V
32A/4P-819 IP44 400V
32A/5P-821 IP44 400V

Model & SPEC Table

A P 110V 230V 400V 500V >50-500V

50 a. 60HZ

 50 a. 60HZ 50 a. 60HZ 50 a. 60HZ 100-300Hz 300-500Hz
16 3 810 812
16 4   837 813 814
16 5     815
32 3 816 817
32 4   838 819 820
32 5     821

△IP 44
CEE/IEC Additional device plug，nickel plated pin
Dimension diagram：F001
A P 110V 230V 400V 500V >50-500V

50 a. 60HZ

 50 a. 60HZ 50 a. 60HZ 50 a. 60HZ 100-300Hz 300-500Hz
63 3 822 1981
63 4   1984 1982 824
63 5     1688

△IP 44
CEE/IEC Additional device plug，high temperature resistant contact carrier, nickel plated pin
Dimension diagram：F002
A P 110V 230V 400V 500V >50-500V

50 a. 60HZ

 50 a. 60HZ 50 a. 60HZ 50 a. 60HZ 100-300Hz 300-500Hz
16 3 825 826
16 4   839 827 828
16 5     829
32 3 830 831
32 4   840 832 833
32 5     834

△IP 67
CEE/IEC Additional device plug，high temperature resistant contact carrier, nickel plated pin
Dimension diagram：F003
A P 110V 230V 400V 500V >50-500V

50 a. 60HZ

 50 a. 60HZ 50 a. 60HZ 50 a. 60HZ 100-300Hz 300-500Hz
63 3 835 836
63 4   3704 3656 3657
63 5     3658
125 3   3665
125 4   3413 3583 3600
125 5     1983

△IP 67
CEE/IEC Additional device plug，high temperature resistant contact carrier, nickel plated pin
Dimension diagram：F004

Dimension Diagram

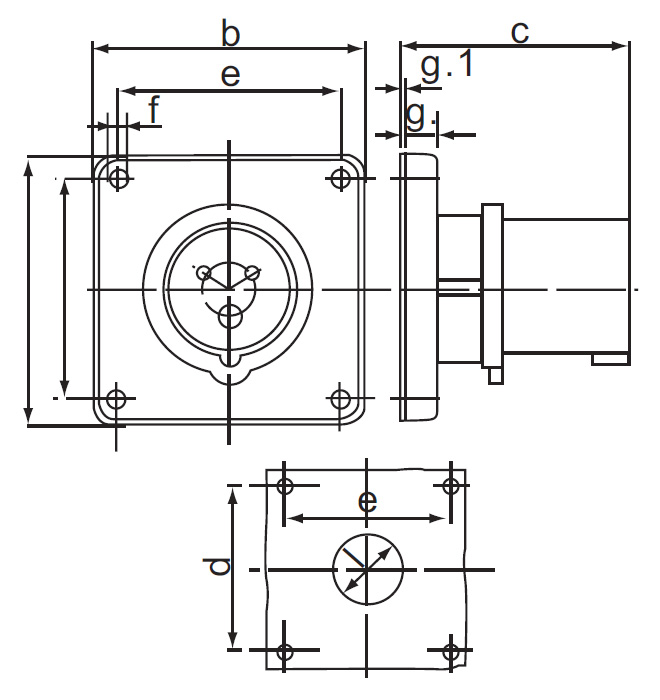

Dimension diagram：F001
Current(A) 16 32
Pole(P) 3 4 5 3 4 5
Dimensions a 85.7 85.7 85.7 85.7 85.7 85.7
b 85.7 85.7 85.7 85.7 85.7 85.7
c 72 72 72 90 90 90
d 69.5 69.5 69.5 69.5 69.5 69.5
e 69.5 69.5 69.5 69.5 69.5 69.5
f 5.5 5.5 5.5 5.5 5.5 5.5
g. 11 11 11 11 11 11
g1 2 2 2 2 2 2
l 50 50 50 50 50 50
Cross-sectional area of wire（mm2）
Minimum to Maximum
 1.5-4 1.5-4 1.5-4 2.5-10 2.5-10 2.5-10
Dimension diagram：F002
Current(A) 63
Pole(P) 3 4 5
Dimensions a 110 110 110
b 106 106 106
c 85 85 85
d 90 90 90
e 90 90 90
f 5.5 5.5 5.5
g. 12 12 12
g1 2 2 2
k 28 28 28
l 68 68 68
Cross-sectional area of wire（mm2）
Minimum to Maximum
 6-16 6-16 6-16
Dimension diagram：F003
Current(A) 16 32
Pole(P) 3 4 5 3 4 5
Dimensions
 a 85.7 85.7 85.7 85.7 85.7 85.7
b 85.7 85.7 85.7 85.7 85.7 85.7
c 72 72 72 90 90 90
d 69.5 69.5 69.5 69.5 69.5 69.5
e 69.5 69.5 69.5 69.5 69.5 69.5
f 5.5 5.5 5.5 5.5 5.5 5.5
g. 11 11 11 11 11 11
g.1 2 2 2 2 2 2
l 50 50 50 50 50 50
s 71 79 89 94 94 102
Cross-sectional area of wire（mm2）
Minimum to Maximum
 1.5-4 1.5-4 1.5-4 2.5-10 2.5-10 2.5-10
Dimension diagram：F004
Current(A) 63 125
Pole(P) 3 4 5 3 4 5
Dimensions a 110 110 110 130 130 130
b 106 106 106 130 130 130
c 86 86 86 112 112 110
d 90 90 90 104 104 104
e 90 90 90 104 104 104
f 5.5 5.5 5.5 6.5 6.5 6.5
g. 11 11 11 18 18 18
g.1 2 2 2 2 2 2
k 28 28 28 28 28 28
l 68 68 68 95 95 95
s 113 113 113 132 132 132
Cross-sectional area of wire（mm2）
Minimum to Maximum
 6-16 6-16 6-16 25-70 25-70 25-70
Product package& size&weight
Relevant information
Product related< video
keywords: Concealed Industrial Waterproof Plug
