IP66 Australia (AS) Plug
Widely used in buildings, factories, outdoor power distribution, and other places with high humidity and dust
3P
230V
Email: SALES@CHTAIXI.COM
WhatsApp: 0086-15669851253
Skype: TAIXI WATERPROOF
Product technical parameters
Product Introduction
Model & Specification
10A/4P-56P410 IP66 250V
20A/4P-56P420 IP66 250V
32A/4P-56P432 IP66 250V
40A/4P-56P440 IP66 250V
50A/4P-56P450 IP66 250V
10A/5P-56P510 IP66 250V
20A/5P-56P520 IP66 250V
32A/5P-56P532 IP66 250V
40A/5P-56P540 IP66 250V
50A/5P-56P550 IP66 250V
10A/6P-56P610 IP66 250V
10A/7P-56P710 IP66 250V
20A/7P-56P720 IP66 250V
20A/3P-56P320 IP66 250V
32A/3P-56P332 IP66 250V
10A/4P-56P410 IP66 500V
20A/4P-56P420 IP66 500V
32A/4P-56P432 IP66 500V
40A/4P-56P440 IP66 500V
50A/4P-56P450 IP66 500V
10A/5P-56P510 IP66 500V
20A/5P-56P520 IP66 500V
32A/5P-56P532 IP66 500V
40A/5P-56P540 IP66 500V
50A/5P-56P550 IP66 500V
10A/6P-56P610 IP66 500V
10A/7P-56P710 IP66 500V
20A/7P-56P720 IP66 500V
Structure & Technical Parameters
 | |||||||||
| 500V Plug The Australian Standard Plug protection level is IP66, which is suitable for 56 series soft wire connectors or sockets. The main body is transparent so that terminals and cable entry devices can be quickly inspected. | |||||||||
| Model | Rated Operating Voltage （V)Ue（-50Hz) |
Rated Dense Current （A） |
Pins（include grounding） |
Pin Configuration |
Cable Entry Diameter |
Capacity mm² | Auxiliary pins C1-C2 Max. Current |
||
| Minimum |
Maximum |
Minimum |
Maximum |
||||||
| 56P410 straight | 500 | 10 | 4 |  |
7 | 16 | 1 | 6 | |
| 56P420 straight | 500 | 20 | 4 |  |
7 | 16 | 1 | 6 | |
| 56P432 straight | 500 | 32 | 4 |  |
10 | 27 | 2.5 | 16 | |
| 56P440 straight | 500 | 40 | 4 |  |
10 | 27 | 2.5 | 16 | |
| 56P450 straight | 500 | 50 | 4 |  |
10 | 27 | 4 | 16 | |
| 56P510 straight | 500 | 20 | 5 |  |
7 | 16 | 1 | 6 | |
| 56P520 straight | 500 | 20 | 5 |  |
6 | 16 | 1 | 6 | |
| 56P532 straight | 500 | 32 | 5 |  |
10 | 27 | 2.5 | 16 | |
| 56P540 straight | 500 | 40 | 5 |  |
10 | 27 | 2.5 | 16 | |
| 56P550 straight | 500 | 50 | 5 |  |
10 | 27 | 4 | 6 | |
| 56P610 straight | 500 | 10 | 6 |  |
7 | 16 | 1 | 6 | 10A |
| 56P710 straight | 500 | 10 | 7 |  |
7 | 16 | 1 | 6 | 10A |
| 56P720 straight | 500 | 20 | 7 |  |
7 | 16 | 1 | 6 | 10A |

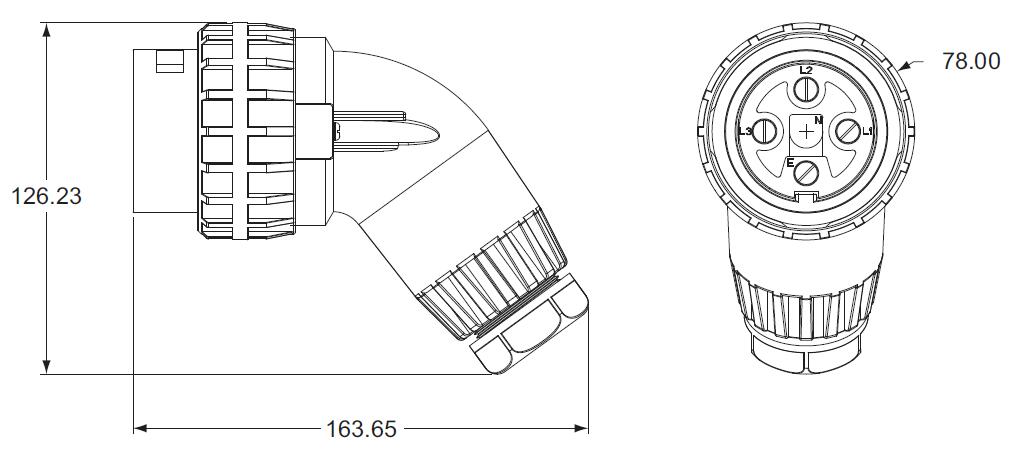

| Dimension diagram：x2 | |||||||||
 | ||||||||
| 250V Plug Pin configurations of 56 series single-phase plugs are 10A, 15A, 20A and 32A, which are suitable for Australia and New Zealand market, and 13A square pin configuration suitable for the UK market. The protection level of all plugs is IP66. | ||||||||
| Model |
Rated Operating Voltage （V)Ue（-50Hz) |
Rated Dense Current （A） |
Pins（include grounding） | Pin configuration | Cable Entry Diameter |
Capacity mm² | ||
| Minimum |
Maximum |
Minimum |
Maximum |
|||||
| 56PA320 bend | 250 | 20 | 3 |  |
7 | 16 | 1 | 6 |
| 56PA332 bend | 250 | 32 | 3 |  |
10 | 27 | 2.5 | 16 |
| Dimension diagram：x3 | ||||||||
 | |||||||||
| 500VPlug The plug protection level is IP66, which is suitable for 56 series soft wire connectors or sockets. The main body is transparent so that terminals and cable entry devices can be quickly inspected. | |||||||||
| Model |
Rated Operating Voltage （V)Ue（-50Hz) |
Rated Dense Current （A） |
Pins（include grounding） |
Pin configuration |
Cable Entry Diameter | Capacity mm² | Auxiliary pins C1-C2 Max. Current |
||
| Minimum |
Maximum |
Minimum |
Maximum |
||||||
| 56P410 straight | 500 | 10 | 4 | |
7 | 16 | 1 | 6 | |
| 56P420 straight | 500 | 20 | 4 | |
7 | 16 | 1 | 6 | |
| 56P432 straight | 500 | 32 | 4 | |
10 | 27 | 2.5 | 16 | |
| 56P440 bend | 500 | 40 | 4 | |
10 | 27 | 2.5 | 16 | |
| 56P450 bend | 500 | 50 | 4 | |
10 | 27 | 4 | 16 | |
| 56P510 bend | 500 | 10 | 5 | |
7 | 16 | 1 | 6 | |
| 56P520 bend | 500 | 20 | 5 | |
6 | L | 1 | 6 | |
| 56P532 bend | 500 | 32 | 5 | |
10 | 27 | 2.5 | 16 | |
| 56P540 bend | 500 | 40 | 5 | |
10 | 27 | 2.5 | 16 | |
| 56P550 bend | 500 | 50 | 5 | |
10 | 27 | 4 | 6 | |
| 56P610 bend | 500 | 10 | 6 | |
7 | 16 | 1 | 6 | 10A |
| 56P710 bend | 500 | 10 | 7 | |
7 | 16 | 1 | 6 | 10A |
| 56P720 bend | 500 | 20 | 7 | |
7 | 16 | 1 | 6 | 10A |
| Dimension diagram：x3 | |||||||||
Dimension diagram
 |
| Dimension diagram :x2 |
 |
| Dimension diagram :x3 |
