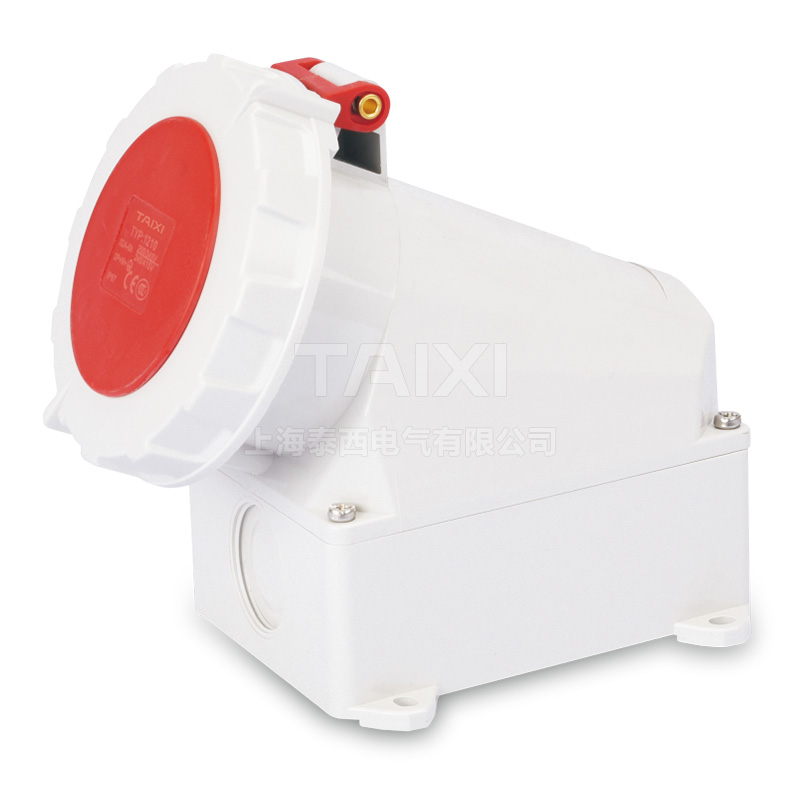

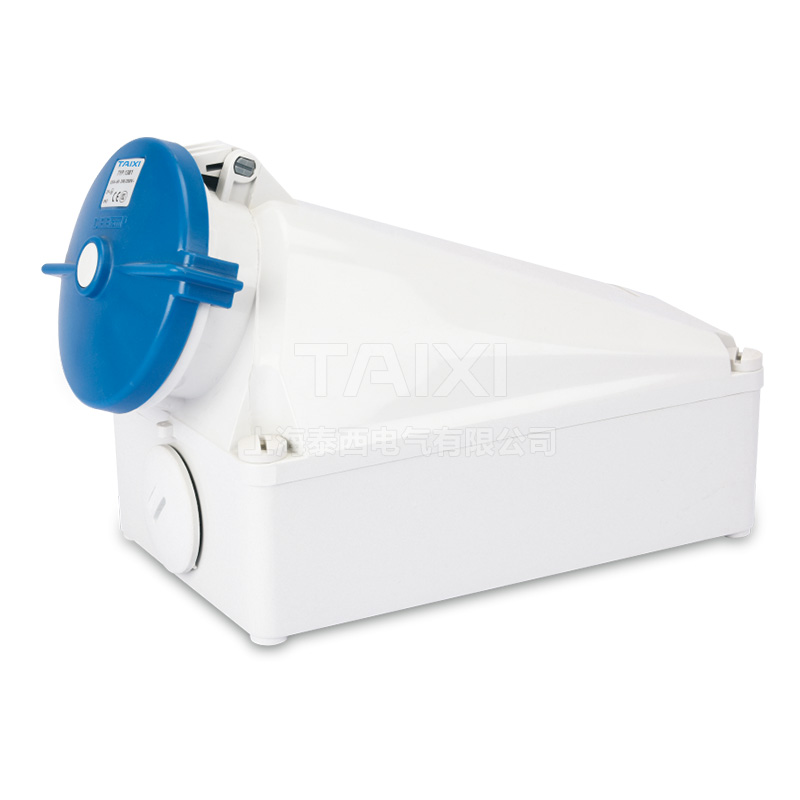

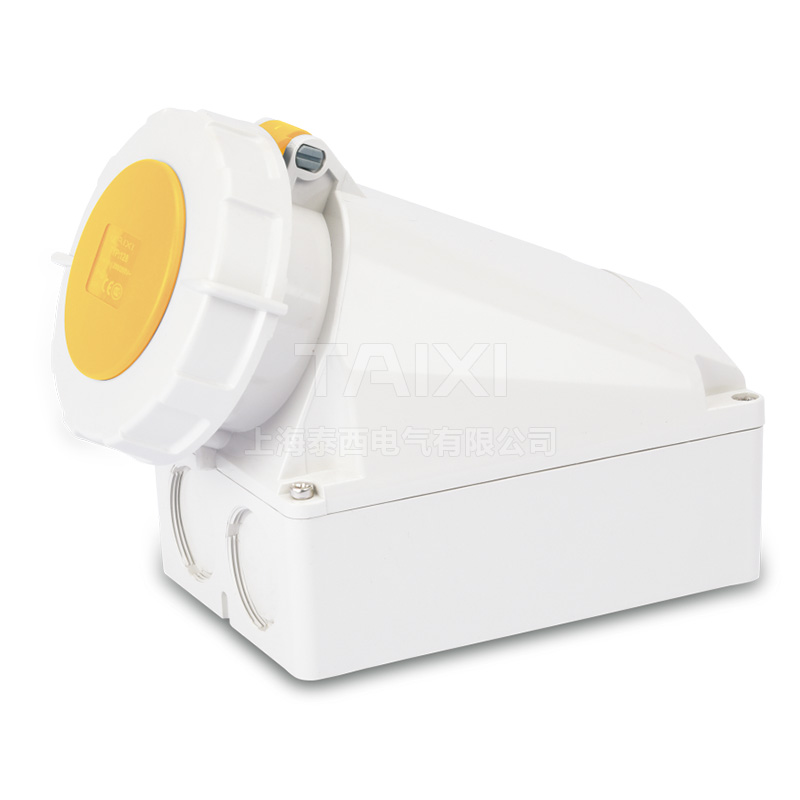

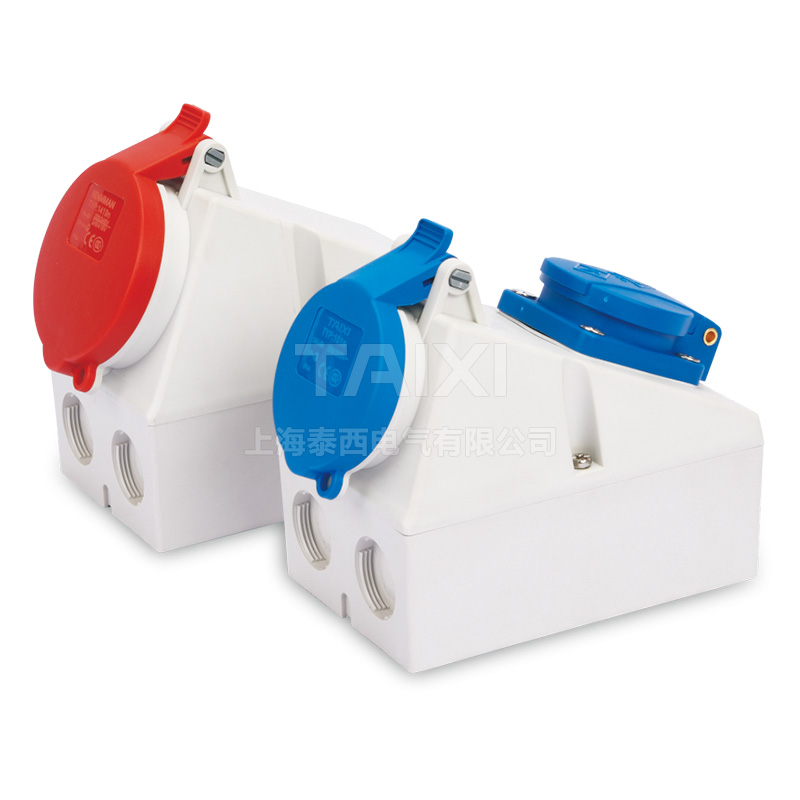

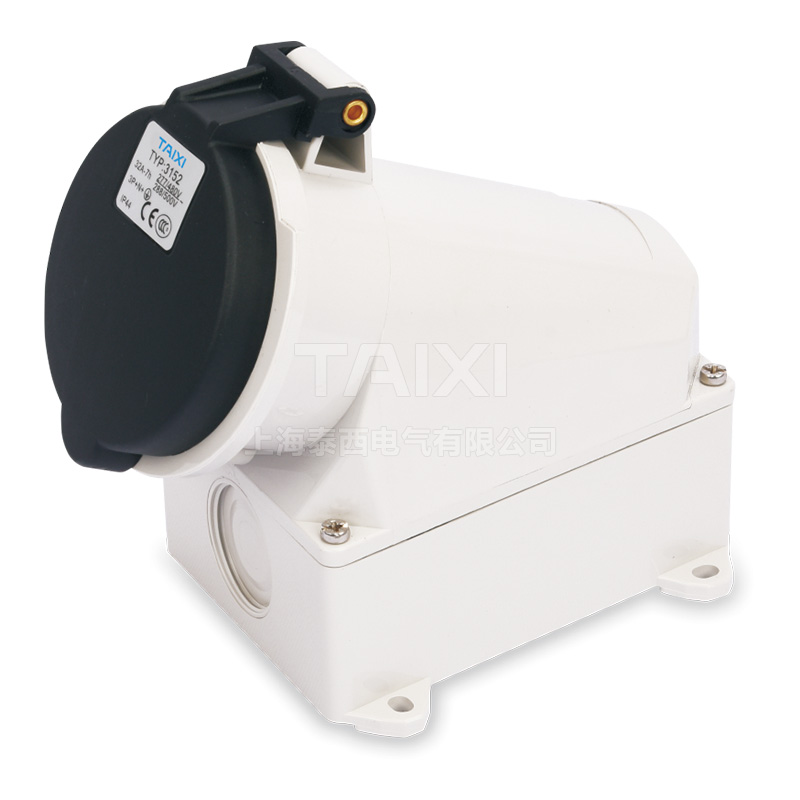

China Waterproof Industrial Socket 32A Commando Socket

Surface Mounted Waterproof Industrial Socket

China Waterproof Industrial Socket 32A Commando Socket

IP44
3P
16A
230V

Email: SALES@CHTAIXI.COM
WhatsApp: 0086-15669851253
Skype: TAIXI WATERPROOF

READ PDF DOWNLOAD PDF

( Click to view details )

Product technical
parameters
Product package&
size&weight
Relevant
information
Product related
video

Product technical parameters

Product Introduction

101*/105*/111*/1421*/1425*/1557 Socket

Model & Specification
16A/3P-101* IP44 230V
16A/4P-105* IP44 400V
16A/5P-111* IP44 400V
32A/5P-1421* IP44 400V
32A/5P-1425* IP44 400V
32A/5P-1557* IP44 400V

Model & SPEC Table


A	P	110V	230V	400V	500V	>50-500V
A	P	50 a. 60HZ	50 a. 60HZ	50 a. 60HZ	50 a. 60HZ	100-300Hz	300-500Hz
16	3	100*	101*	102*		2169*	2241*
16	4	103*	104*	105*	106*	107*	108*
16	5	109*	110*	111*	2000*	2188*	2199*
32	3	1420*	1421*	1422*		3139*	3134*
32	4	1423*	1424*	1425*	1426*	1427*	1428*
32	5	1555*	1556*	1557*	3152*	3154*	3149*
△IP 67 IP44 CEE/IEC Socket, cable pass through the top and bottom. Dimension diagram：C001


A	P	110V	230V	400V	500V	>50-500V
A	P	50 a. 60HZ	50 a. 60HZ	50 a. 60HZ	50 a. 60HZ	100-300Hz	300-500Hz
16	3	101	101	102		2169	2241
16	4	3030	3034	1418	3032	3035	3025
16	5	3041	345	1419	3043	3046	3039
32	3	1420	1421	1422		3139	3134
32	4	1423	1424	1425	1426	1427	1428
32	5	1555	1556	1557	3152	3154	3149
△IP 67 IP44 CEE/IEC Socket, cable pass through the top and bottom. Dimension diagram：C002


A	P	110V	230V	400V	500V	>50-500V
A	P	50 a. 60HZ	50 a. 60HZ	50 a. 60HZ	50 a. 60HZ	100-300Hz	300-500Hz
63	3	1136	1137	1138
63	4	1139	1140	1141	1142
63	5	1143	1144	1145
△IP 67 IP44 CEE/IEC Socket, cable pass through the top and bottom. Dimension diagram：C003


A	P	110V	230V	400V	500V	>50-500V
A	P	50 a. 60HZ	50 a. 60HZ	50 a. 60HZ	50 a. 60HZ	100-300Hz	300-500Hz
16	3	1193	1192	1211
16	4	1194	1195	1196	1197	1212	1213
16	5	1198	1199	1200
32	3	1201	1202	1203
32	4	1204	1205	1206	1207	1214	1215
32	5	1208	1209	1210
△IP 67 CEE/IEC Socket, cable pass through the top and bottom. Dimension diagram：C004


A	P	110V	230V	400V	500V	>50-500V
A	P	50 a. 60HZ	50 a. 60HZ	50 a. 60HZ	50 a. 60HZ	100-300Hz	300-500Hz
63	3	856	128	129
63	4	130	131	132	133
63	5	134	135	136	2007
△IP 67 CEE/IEC Socket, soft contact process, cable pass through the top and bottom. Dimension diagram：C005


A	P	110V	230V	400V	500V	>50-500V
A	P	50 a. 60HZ	50 a. 60HZ	50 a. 60HZ	50 a. 60HZ	100-300Hz	300-500Hz
63	3	856	128	129
63	4	130	131	132	133
63	5	134	135	136	2007
△IP 67 CEE/IEC Socket, soft contact process, cable pass through the top and bottom. Dimension diagram：C006

Dimension Diagram

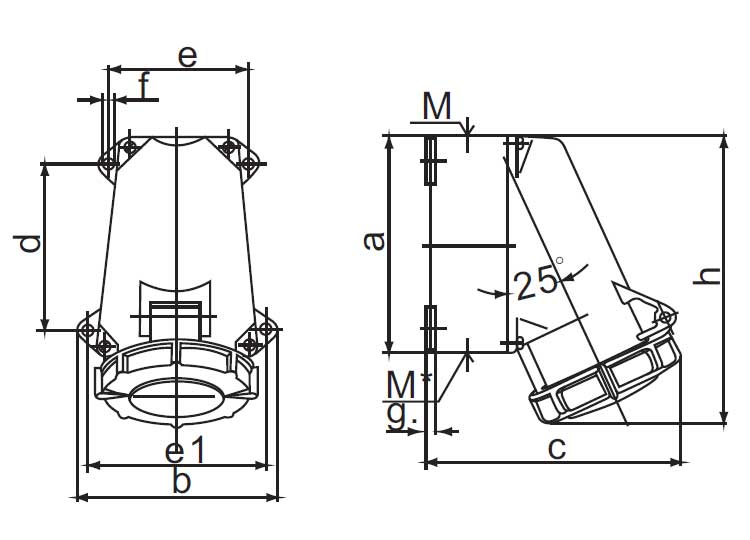

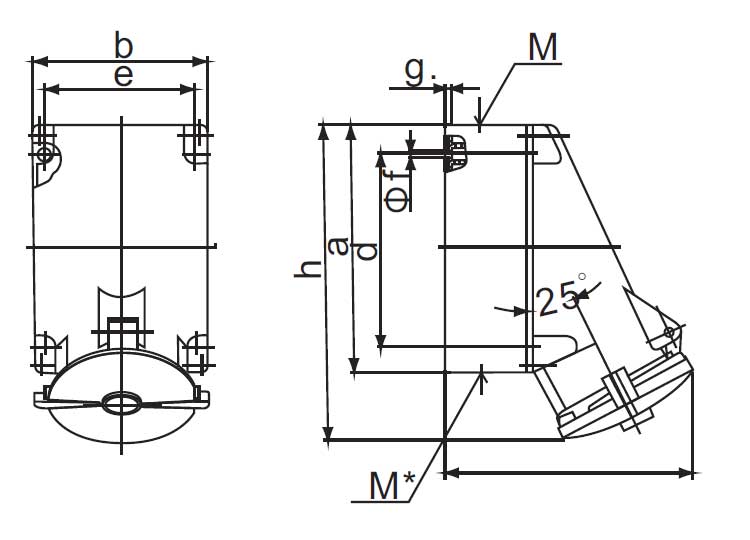

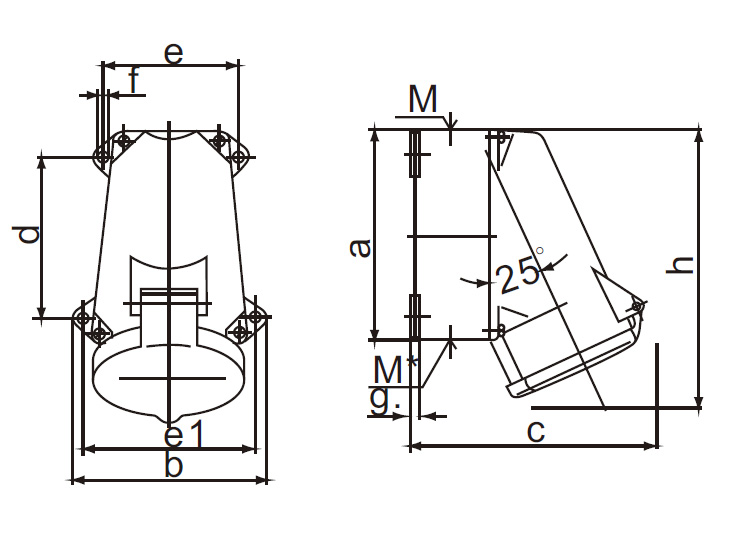

Dimension diagram：C001
Current(A)		16			32
Pole(P)		3	4	5/7	3	4	5/7
Dimensions	a	95	95	95	120	120	120
	b	102	102	102	112	112	112
	c	115	124	129	143	143	150
	d	64.2	64.2	64.2	90.2	90.2	90.2
	e	77.5	77.5	77.5	79	79	79
	e1	88	88	88	98.5	98.5	98.5
	f	5.5	5.5	5.5	5.5	5.5	5.5
	g.	5	5	5	5	5	5
	h	128	128	132	160	160	160
	M	25	25	25	32	32	32
	M*	1个M25（stopper）can be cut			1个M32（stopper）can be cut
Max. cable diameter（mm）		18	18	18	25	25	25
Cross-sectional area of wire（mm2） Minimum to Maximum		1.5-4	1.5-4	1.5-4	2.5-10	2.5-10	2.5-10

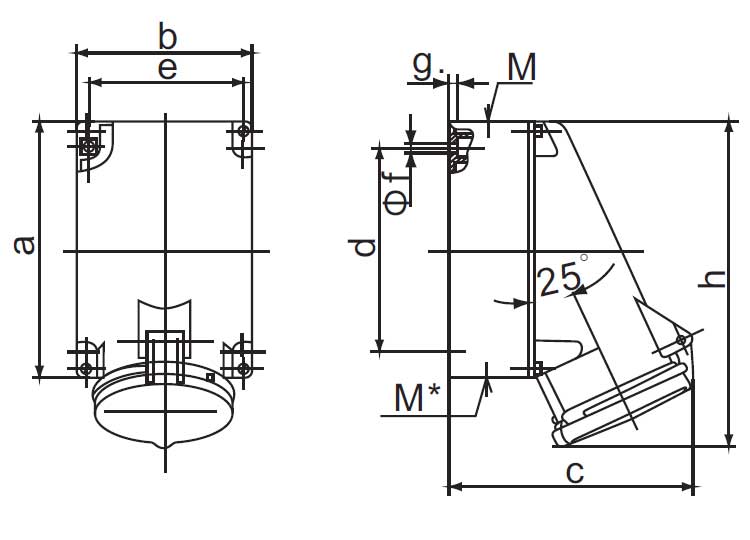

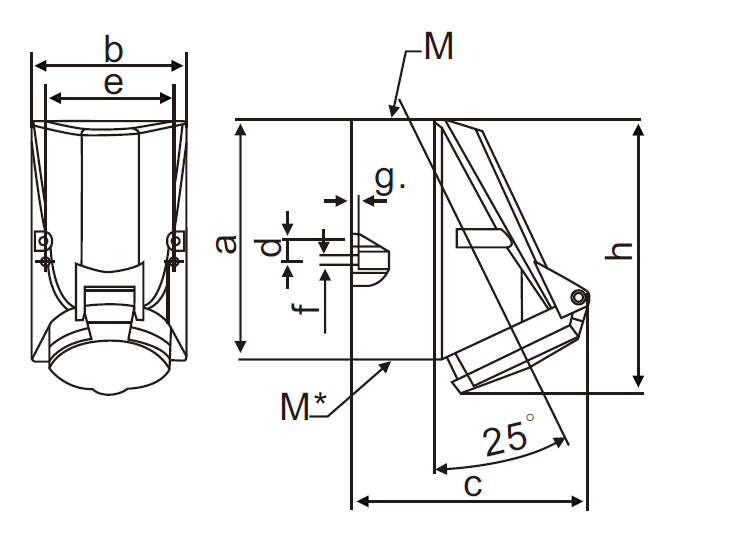

Dimension diagram：C002
Current(A)		16			32
Pole(P)		3	4	5/7	3	4	5/7
Dimensions	a	128	128	128	128	128	128
	b	84	84	84	84	84	84
	c	122	122	124	136	136	136
	d	11	11	11	11	11	11
	e	68	68	68	68	68	68
	f	5.3	5.3	5.3	5.3	5.3	5.3
	g.	4	4	4	4	4	4
	h	144	144	145	158	158	160
	M	25	25	25	32	32	32
	M*	1个M25（stopper）can be cut			1个M32（stopper）can be cut
Max. cable diameter（mm）		18	18	18	18/25	18/25	18/25
Cross-sectional area of wire（mm2） Minimum to Maximum		1.5-4	1.5-4	1.5-4	2.5-10	2.5-10	2.5-10

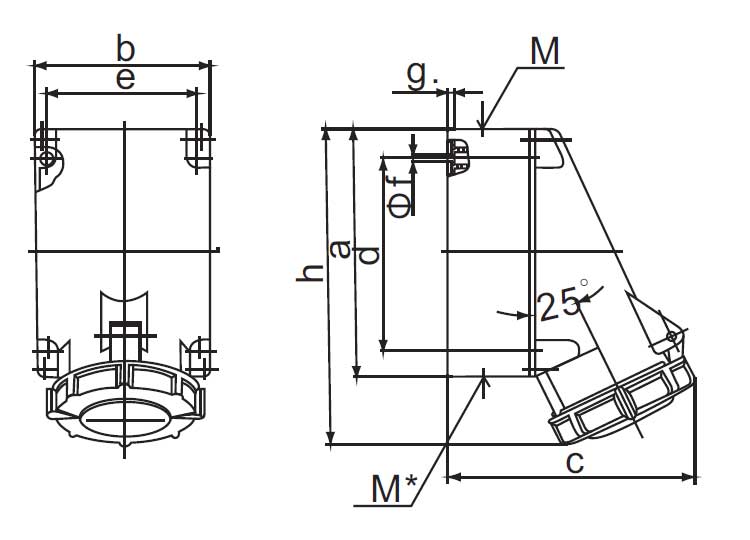

Dimension diagram：C003
Current(A)		63
Pole(P)		3	4	5/7
Dimensions	a	170	170	170
	b	118	118	118
	c	171	171	171
	d	134.5	134.5	134.5
	e	103	103	103
	f	6.1	6.1	6.1
	g.	6	6	6
	h	216	216	216
	M	40	40	40
	M*	1个M40（stopper）can be cut
Max. cable diameter（mm）		32	32	32
Cross-sectional area of wire（mm2） Minimum to Maximum		6-25	6-25	6-25


Dimension diagram：C004
Current(A)		16			32
Pole(P)		3	4	5/7	3	4	5/7
Dimensions	a	95	95	95	120	120	120
	b	102	102	102	112	112	112
	c	115	124	129	143	143	150
	d	64.2	64.2	64.2	90.2	90.2	90.2
	e	77.5	77.5	77.5	79	79	79
	e1	88	88	88	98.5	98.5	98.5
	f	5.5	5.5	5.5	5.5	5.5	5.5
	g.	5	5	5	5	5	5
	h	128	128	132	160	160	160
	M	25	25	25	32	32	32
	M*	1个M25（stopper）can be cut			1个M32（stopper）can be cut
Max. cable diameter（mm）		18	18	18	25	25	25
Cross-sectional area of wire（mm2） Minimum to Maximum		1.5-4	1.5-4	1.5-4	2.5-10	2.5-10	2.5-10


Dimension diagram：C005
Current(A)		63
Pole(P)		3	4	5
Dimensions	a	170	170	170
	b	118	118	118
	c	171	171	171
	d	134.5	134.5	134.5
	e	103	103	103
	f	6.1	6.1	6.1
	g.	6	6	6
	h	216	216	216
	M	40	40	40
	M*	1个M40（stopper）can be cut
Max. cable diameter（mm）		32	32	32
Cross-sectional area of wire（mm2） Minimum to Maximum		6-25	6-25	6-25


Dimension diagram：C006
Current(A)		125
Pole(P)		3	4	5
Dimensions	a	264	264	264
	b	163	163	163
	c	203	203	203
	d	240	240	240
	e	140	140	140
	f	8.1	8.1	8.1
	g.	8	8	8
	h	313	313	313
	M	50	50	50
	M*	50	50	50
Max. cable diameter（mm）		38	38	38
Cross-sectional area of wire（mm2） Minimum to Maximum		25-35	25-35	25-35

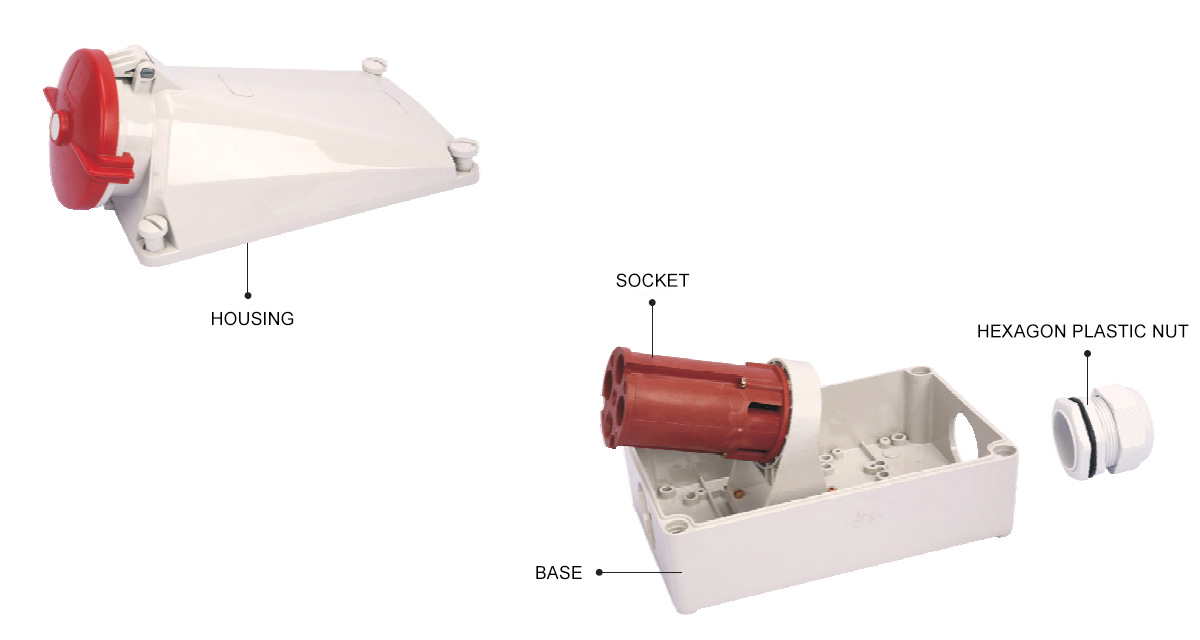

Structure Diagram

Product package& size&weight

Relevant information

Product related< video

keywords: Waterproof Industrial Socket
