Exhibition Booth Distribution Box Floor Socket Boxes

Product technical parameters

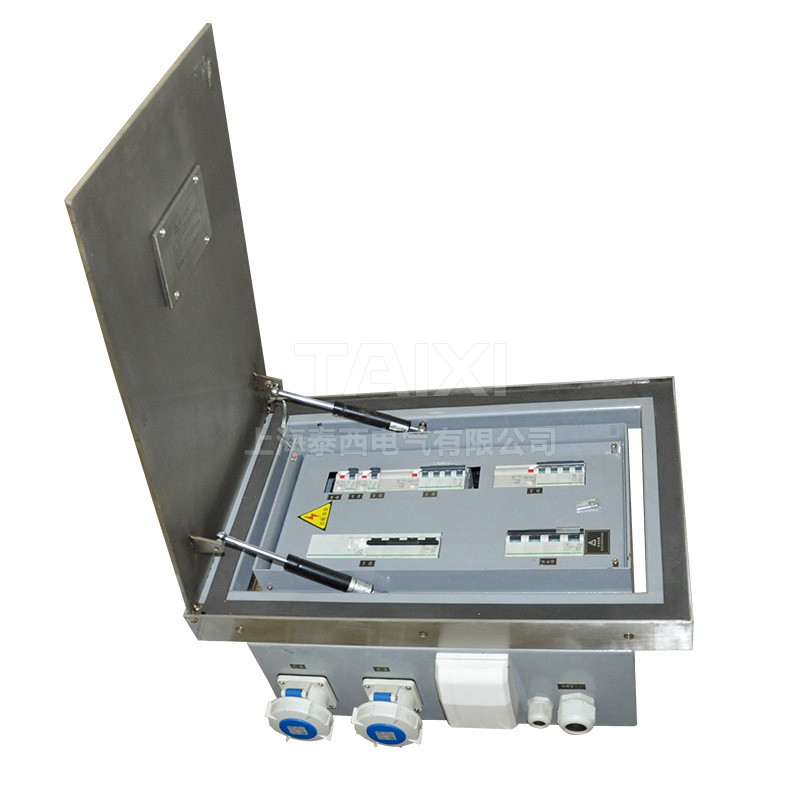

Product Introduction

1. Cold-formed Rectangular Welded steel pipe is used in the load-bearing frame of the box body. The cover plate of the box body is made of 10 mm thick stainless steel 304. The surface is treated by wire drawing or 10 mm high-quality pattern steel plate. The surface is sprayed with high-strength wear-resistant paint, which can withstand the pressure of wheels and other machinery.

2. The strong and weak electric wiring in the box adopts separate wiring boxes, which are arranged on both sides of the frame respectively, and has good anti-electromagnetic interference.

3. The weak current box can be assembled and disassembled separately, and the strong and weak current will not affect each other in overhaul.

4. The outlet adopts 125A high-power industrial connector socket, which guarantees the demonstration power consumption of high-power exhibits.

5. The cover of power control box and power outlet are equipped with different special locks to avoid illegal operation of irrelevant personnel and ensure the safety of electricity use.

6. The cover of power control box and power outlet come with mechanical self-locking brace. The opening and closing of the cover plate is convenient and safe.

7. All outlet sockets adopt IP67 high-level protective industrial connector sockets, which are installed on both sides of the box body and inclined in the direction to facilitate connecting.

8. Circuit breakers, leakage switches and surge protectors are all installed in separate boxes to effectively prevent dust, moisture and water erosion on the ground and ensure that the protection level of booth boxes reaches IP66.

Technical Parameters

Rated operating voltage：AC380V/220V
Nominal insulation voltage：AC 400V/660V
Rated operating frequency：50Hz
Rated current and short-time withstand current: main circuit 200A 4.5KA
IP grade：IP66
Cover plate bearing wheel-pressure: 50KN
Outlet way：6，8 way
Outlet rated current：380V/125A、380V/63A、380V/32A、220V/32A、380V/16A，220V/16A
Weak electricity interface（86boxes）：Sound, Data, Optical Fiber, CATV, spare part dimension: 790（length）×600(width）×400（height）

Model & SPEC Table


TX-JWG3-001	TX-JWG3-002

IP44-IP66 CEE/IEC Socket 16A，3P，230V - 4pcs CEE/IEC Socket 32A，5P，400V - 2pcs MCB 100A，4P，C - 1pc ALCI 32A，4P，0.03A - 2pcs ALCI 16A，2P，0.03A - 4pcs Weak electricity inlet cable gland M32 1pc Strong electricity inlet cable gland M48 1pc	IP44-IP66 CEE/IEC Socket 16A，3P，230V - 2pcs CEE/IEC Socket 16A，5P，400V - 2pcs CEE/IEC Socket 32A，5P，400V - 2pcs MCB 100A，4P，C - 1pc ALCI 16A，2P，0.03A - 2pcs ALCI 16A，4P，0.03A - 2pcs ALCI 32A，4P，0.03A - 2pcs Weak electricity inlet cable gland M32 1pc Strong electricity inlet cable gland M48 1pc
TX-JWG3-003	TX-JWG3-004

IP44-IP65 CEE/IEC Socket 16A，3P，230V - 3pcs CEE/IEC Socket 16A，5P，400V - 5pcs MCB 80A，4P，C - 1pc ALCI 16A，2P，0.03A - 3pcs ALCI 16A，4P，0.03A - 5pcs Weak electricity inlet cable gland M32 1pc Strong electricity inlet cable gland M48 1pc	IP44-IP65 CEE/IEC Socket 16A，3P，230V - 3pcs CEE/IEC Socket 16A，5P，400V - 2pcs CEE/IEC Socket 32A，5P，400V - 2pcs MCB 100A，4P，C - 1pc ALCI 16A，2P，0.03A - 3pcs ALCI 16A，4P，0.03A - 2pcs ALCI 32A，4P，0.03A - 2pcs Weak electricity inlet cable gland M32 1pc Strong electricity inlet cable gland M48 1pc

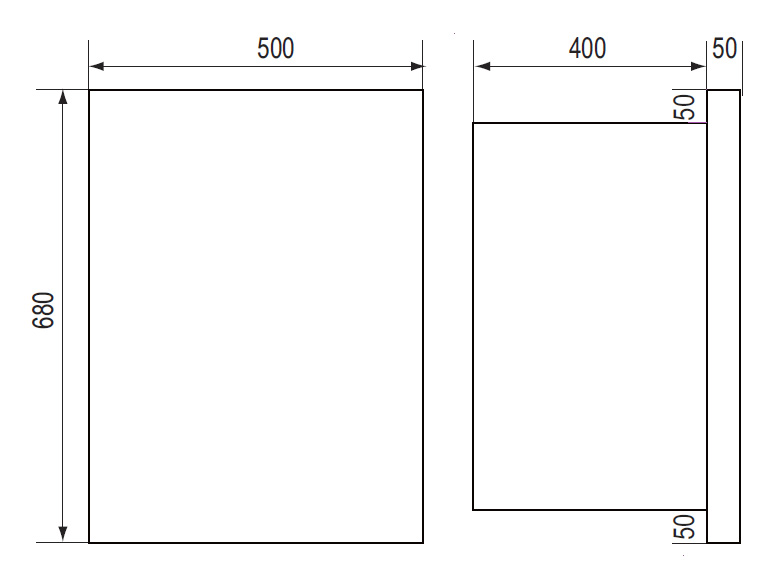

Dimension diagram：x1


TX-DWG3 -001	TX-DWG3-002

IP44-IP66 CEE/IEC Socket 16A，3P，230V - 2pcs CEE/IEC Socket 32A，5P，400V - 2pcs CEE/IEC Socket 63A，5P，400V - 2pcs MCB 80A，4P，C - 1pc ALCI 16A，2P，0.03A - 2pcs ALCI 32A，4P，0.03A - 2pcs ALCI 63A，4P，0.03A - 2pcs Weak electricity inlet cable gland M32 1pc Strong electricity inlet cable gland M48 1pc	IP44-IP66 CEE/IEC Socket 32A，3P，230V - 3pcs CEE/IEC Socket 32A，5P，400V - 2pcs CEE/IEC Socket 63A，5P，400V - 1pc MCB 100A，4P，C - 1pc ALCI 32A，2P，0.03A - 3pcs ALCI 32A，4P，0.03A - 2pcs ALCI 63A，4P，0.03A - 1pc Weak electricity inlet cable gland M32 1pc Strong electricity inlet cable gland M48 1pc
TX-DWG3-003	TX-DWG3 -004

IP44-IP65 CEE/IEC Socket 32A，3P，230V - 2pcs CEE/IEC Socket 32A，5P，400V - 2pcs CEE/IEC Socket 63A，5P，400V - 2pcs MCB 100A，4P，C - 1pc ALCI 32A，2P，0.03A - 2pcs ALCI 32A，4P，0.03A - 2pcs ALCI 63A，4P，0.03A - 2pcs Weak electricity inlet cable gland M32 1pc Strong electricity inlet cable gland M48 1pc	IP44-IP65 CEE/IEC Socket 16A，3P，230V - 3pcs CEE/IEC Socket 16A，5P，400V - 2pcs CEE/IEC Socket 63A，5P，400V - 1pc MCB 80A，4P，C - 1pc ALCI 16A，2P，0.03A - 3pcs ALCI 16A，4P，0.03A - 2pcs ALCI 63A，4P，0.03A - 1pc Weak electricity inlet cable gland M32 1pc Strong electricity inlet cable gland M48 1pc

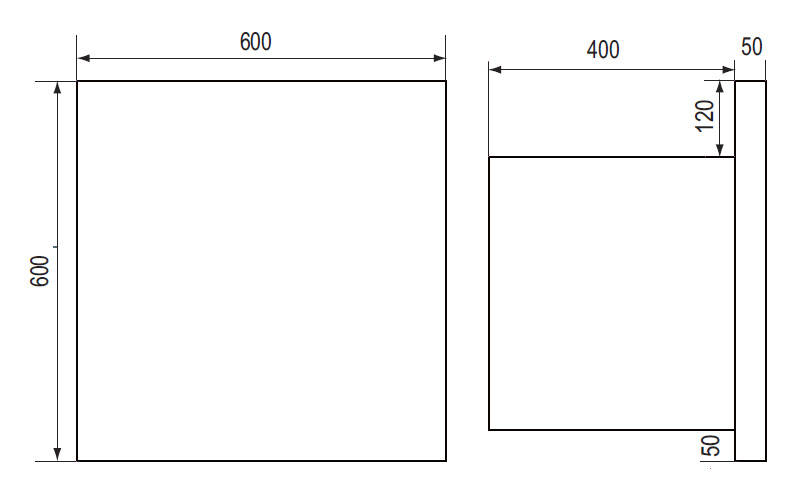

Dimension diagram：x2
