Product technical parameters

Product Introduction

TXW outdoor waterproof switch performs good in waterproof and its protection grade reaches IP55, it can provide safe and reliable electrical connection.
Outdoor waterproof and rainstorm-proof sockets are different from our usual products that claim splash-proof boxes by putting a lid on the indoors socket.
This waterproof socket can withstand the direct spraying of car washing high-pressure water gun from any direction ans still keep drying. 10cm square appearance looks very strong. The socket is a kind of new international standard socket with five 10A holes suitable for sockets with 2pins or 3pins. There are 3 wiring holes around that can connect waterproof joint so as to connect power line conveniently. The junction watertightness of power line and socket must be taken into account, otherwise, water will enter from the junction. For customers with high requirements for outdoor use, ZA66P310 waterproof plug is recommended to you. Work with the ZA66P310 waterproof plug, socket will become an industrial connector socket, the protection level will up to the international standard IP66.
Perfect Five Protections - Waterproof, Dust-proof, Chemical Corrosion-proof, Ultraviolet-proof and Crash-proof.

Technical Parameters

Model Name IP Grade Curent
（A）		 Voltage
（V）		 Wiring Diagram Installation

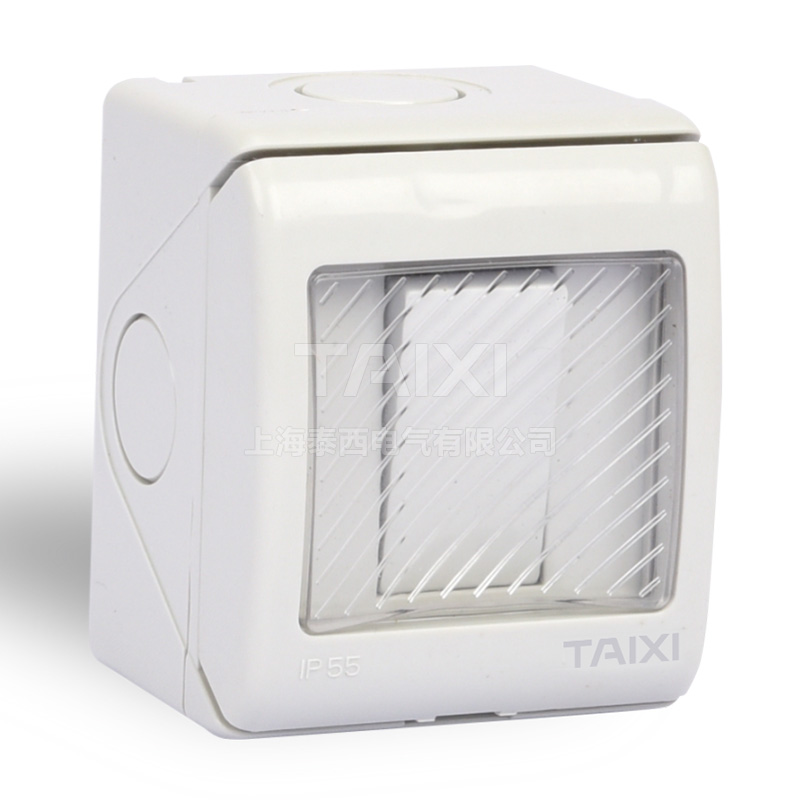

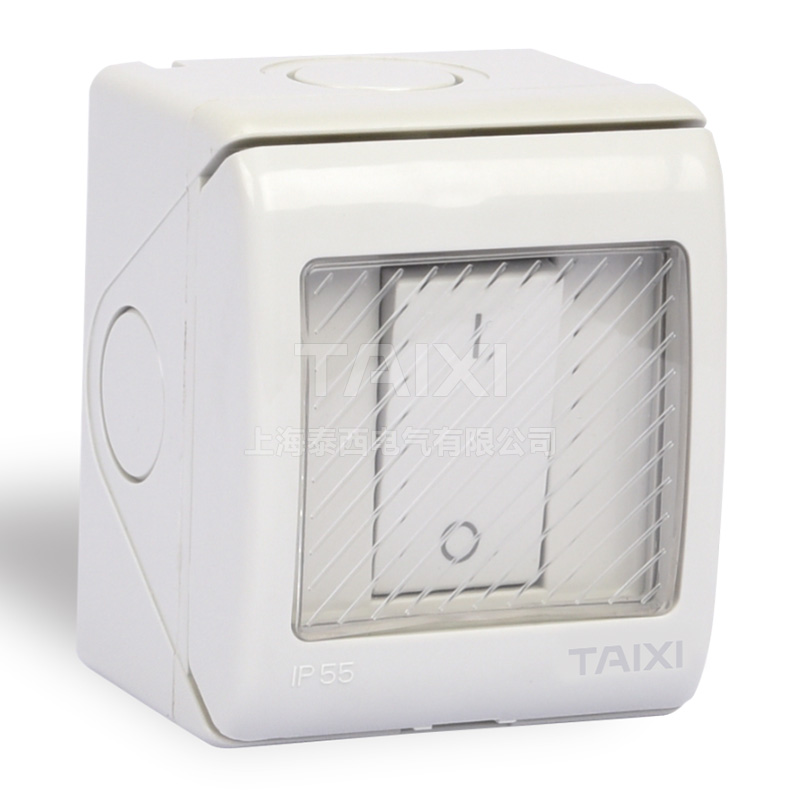

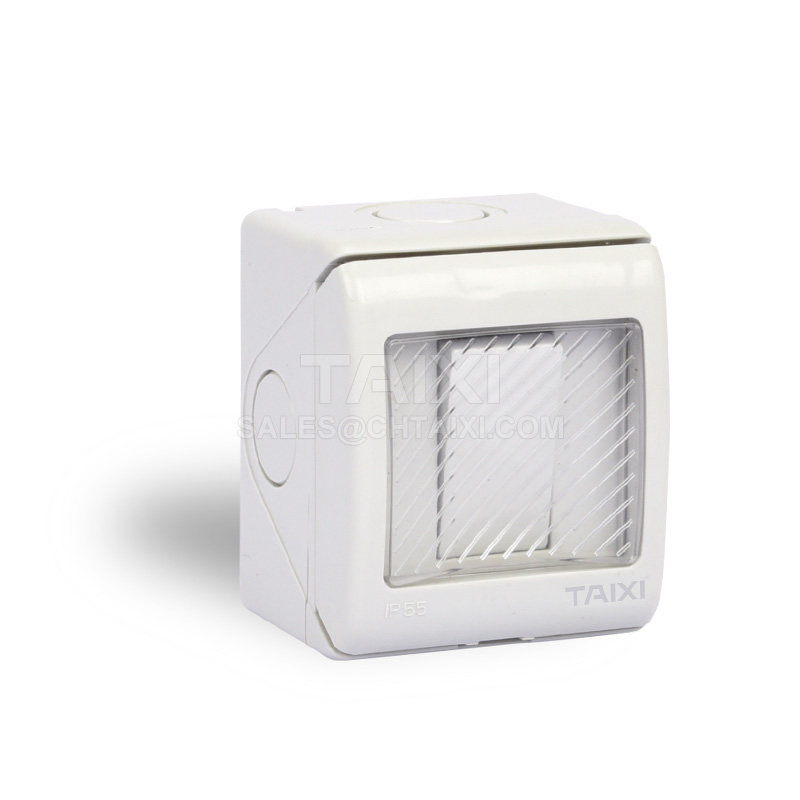

TXW-1GS 1 gang switch IP55 13 250 Surface mounting
Dimension diagram：x1 Structure diagram：c1
Model
 Name
 IP Grade Curent
（A）		 Voltage
（V）		 Wiring Diagram
 Installation
TXW-2GS2W 2 gang/2 way switch
 IP55 13 250 Surface mounting
Dimension diagram：x1 Structure diagram：c1
Model
 Name
 IP Grade Curent
（A）		 Voltage
（V）		 Wiring Diagram
 Installation

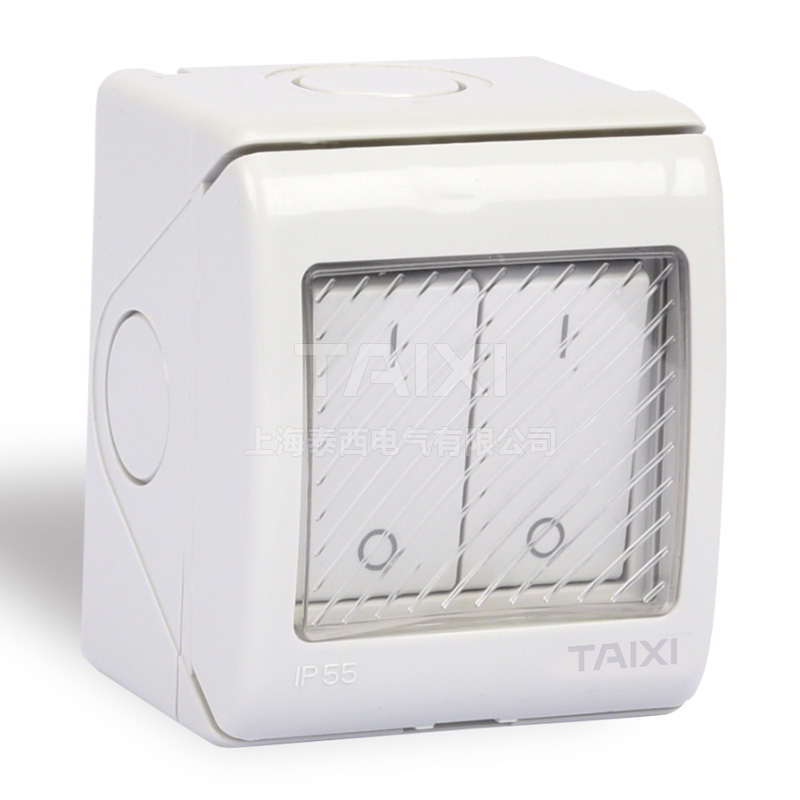

TXW-2GS 2 gang switch
 IP55 13 250 Surface mounting
Dimension diagram：x1 Structure diagram：c1
Model
 Name
 IP Grade Curent
（A）		 Voltage
（V）		 Wiring Diagram
 Installation
TXW-3GS2W 3 gang/2 way switch
 IP55 13 250 Surface mounting
Dimension diagram：x2 Structure diagram：c1
Model
 Name
 IP Grade Curent
（A）		 Voltage
（V）		 Wiring Diagram
 Installation

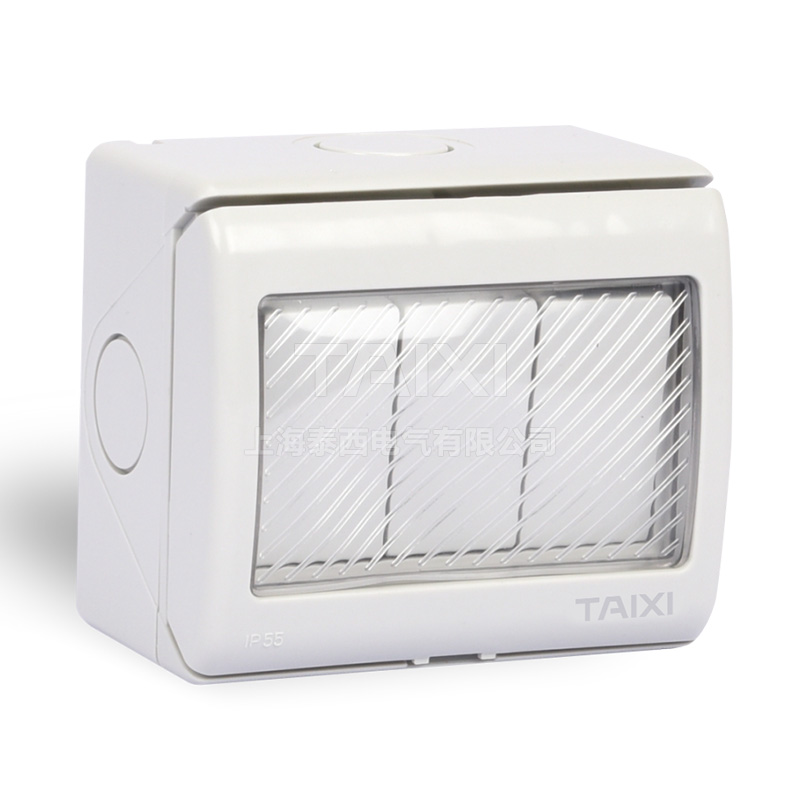

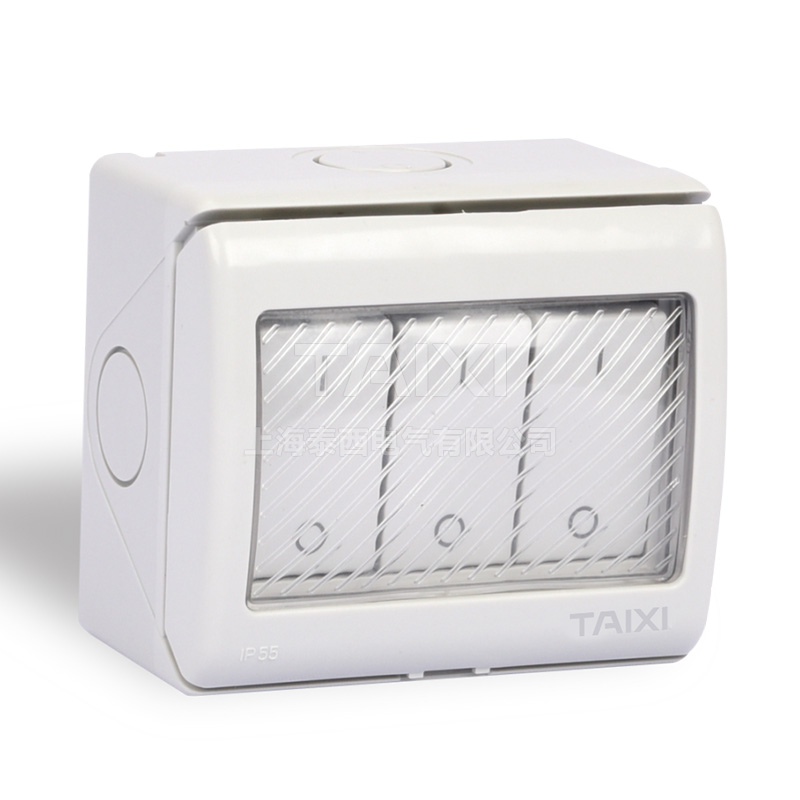

TXW-3GS 3 gang switch
 IP55 13 250 Surface mounting
Dimension diagram：x2 Structure diagram：c1
Model
 Name
 IP Grade
 Curent
（A）		 Voltage
（V）		 Wiring Diagram
 Installation
TXW-4GS2W 4 gang/2 way switch
 IP55 13 250 Surface mounting
Dimension diagram：x3 Structure diagram：c1
Model
 NameIP Grade Curent
（A）		 Voltage
（V）		 Wiring Diagram
 Installation

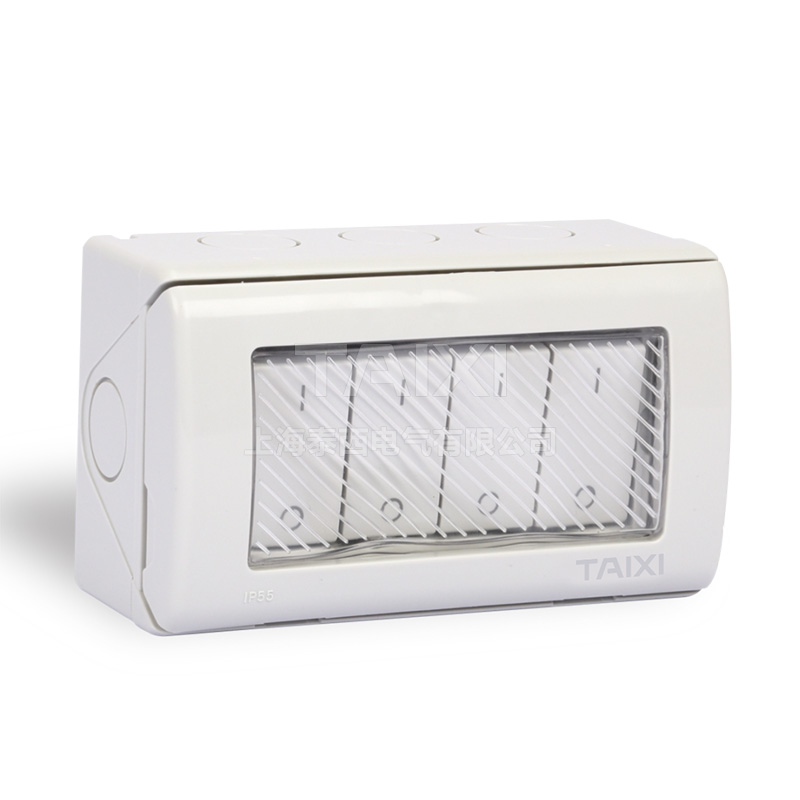

TXW-4GS 4 gang switch
 IP55 13 250 Surface mounting
Dimension diagram：x3 Structure diagram：c1
Model
 Name
 IP Grade Curent
（A）		 Voltage
（V）		 Wiring Diagram
 Installation
TXW-1GBS 1 gang switch
 IP55 13 250 Surface mounting
Dimension diagram：x1 Structure diagram：c1
Model
 NameIP Grade Curent
（A）		 Voltage
（V）		 Wiring Diagram
 Installation
TXW-1GS2W 1 gang/2 way switch
 IP55 13 250 Surface mounting
Dimension diagram：x1 Structure diagram：c1
Model
 Name
 IP Grade Curent
（A）		 Voltage
（V）		 Wiring Diagram
 Installation
TXW-2GBS 2 gang switch
 IP55 13 250 Surface mounting
Dimension diagram：x1 Structure diagram：c1
Model
 Name
 IP Grade Curent
（A）		 Voltage
（V）		 Wiring Diagram
 Installation
TXW-3GBS 3 gang switch
 IP55 13 250 Surface mounting
Dimension diagram：x2 Structure diagram：c1
Model
 Name
 IP Grade Curent
（A）		 Voltage
（V）		 Wiring Diagram
 Installation
TXW-4GBS 4 gang switch
 IP55 13 250 Surface mounting
Dimension diagram：x3 Structure diagram：c1
Model
 Name
 IP Grade Curent
（A）		 Voltage
（V）		 Installation

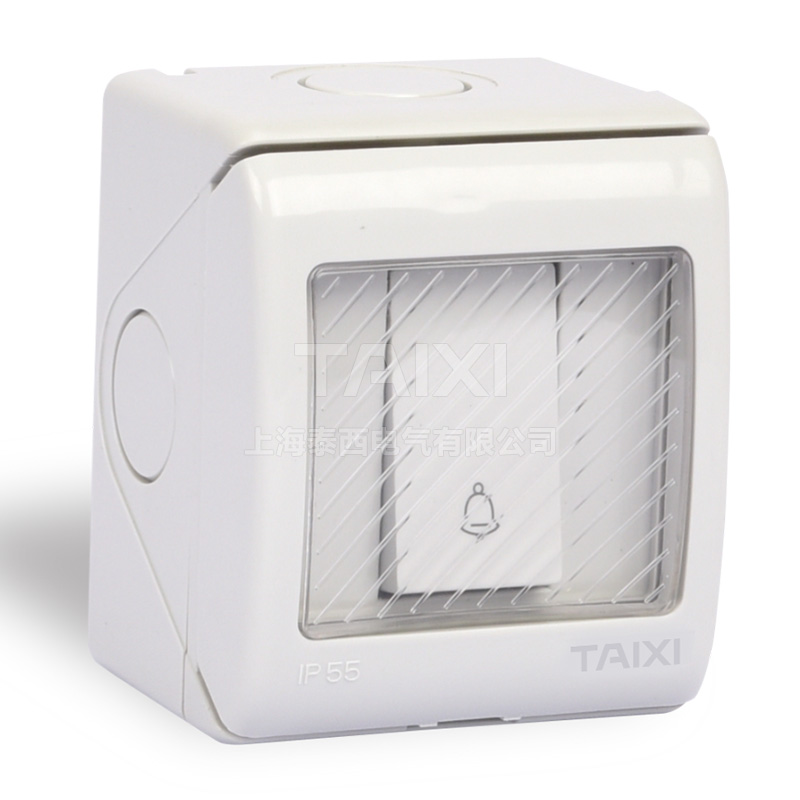

TXW-1GB 1 gang bell switch IP55 16 250 Surface mounting
Dimension diagram：x1 Structure diagram：c1
Model
 Name
 IP Grade Curent
（A）		 Voltage
（V）		 Installation

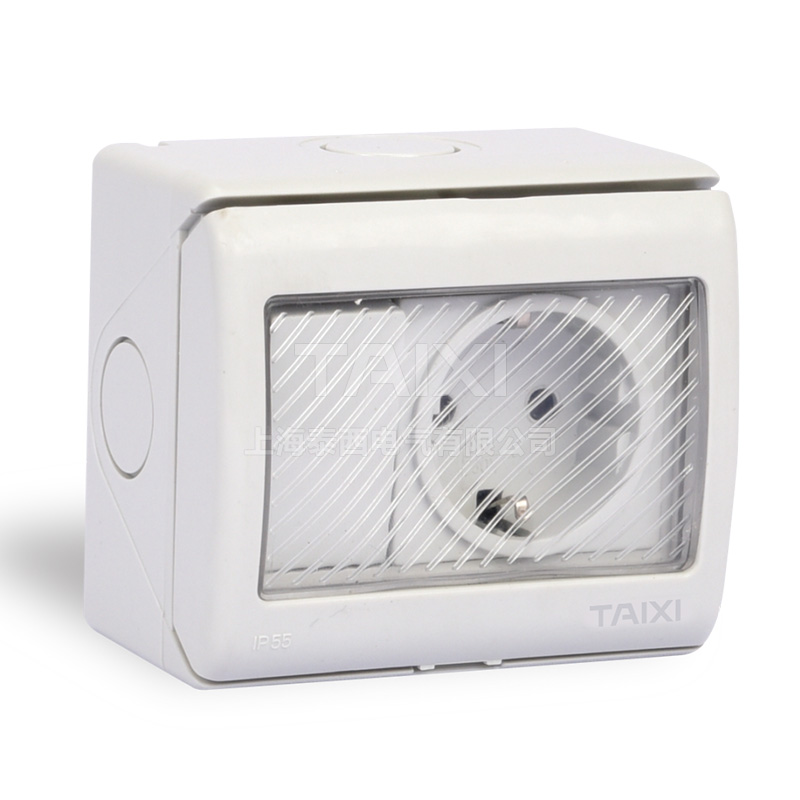

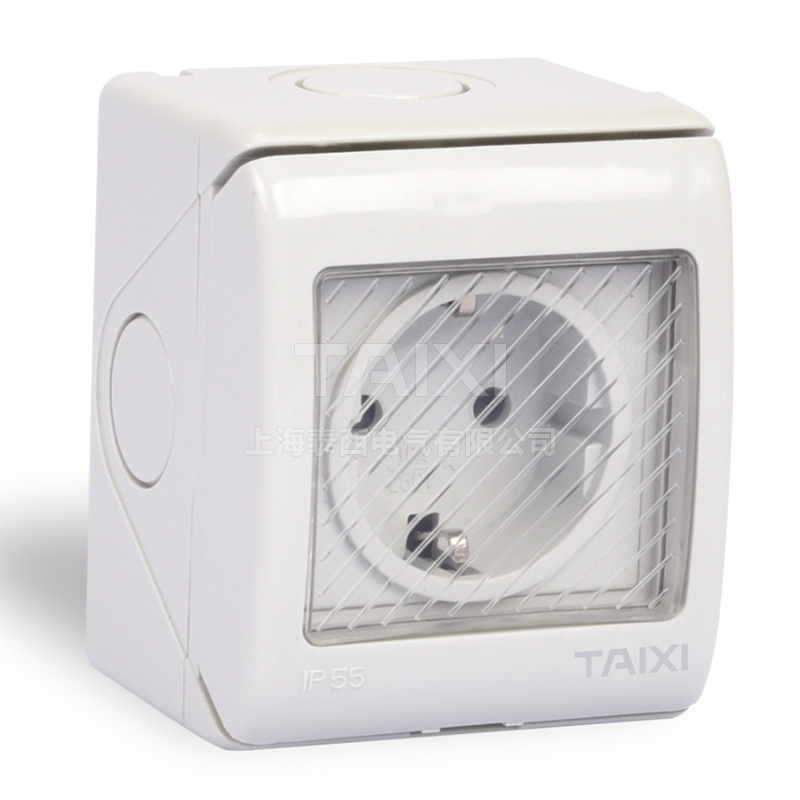

TXW-TS DIN socket IP55 16 250 Surface mounting
Dimension diagram：x1 Structure diagram：c1
Model
 Name
 IP Grade Curent
（A）		 Voltage
（V）		 Installation

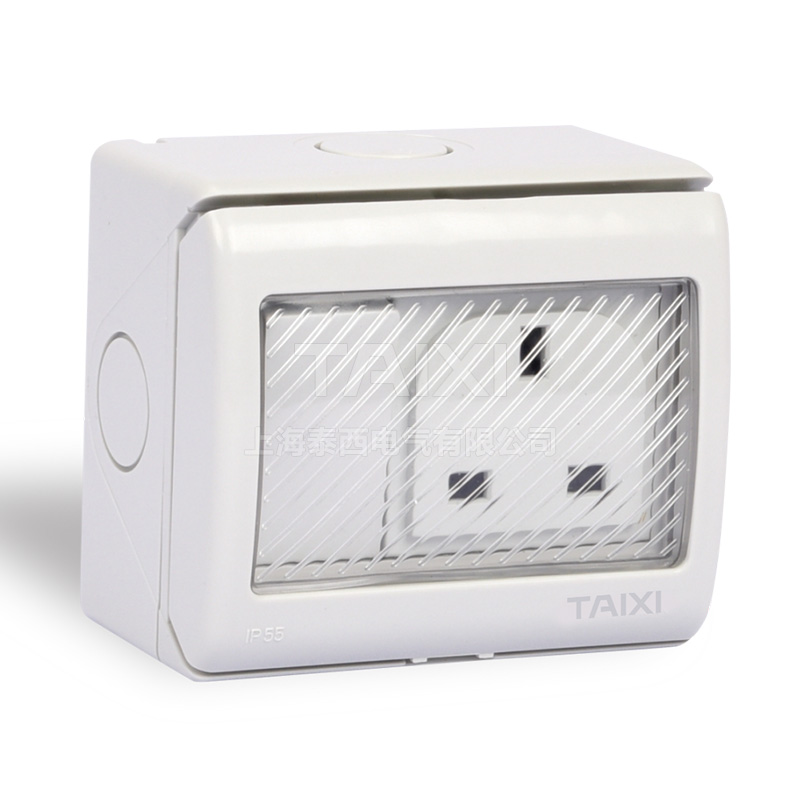

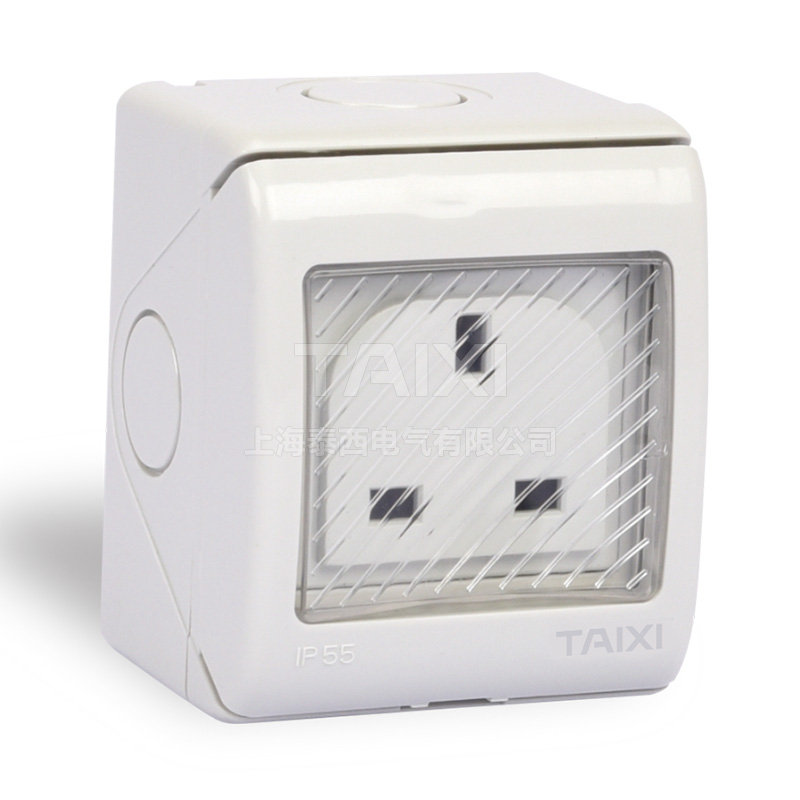

TXW-S BS socket IP55 13 250 Surface mounting
Dimension diagram：x1 Structure diagram：c1
Model
 Name
 IP Grade Curent
（A）		 Voltage
（V）		 Installation

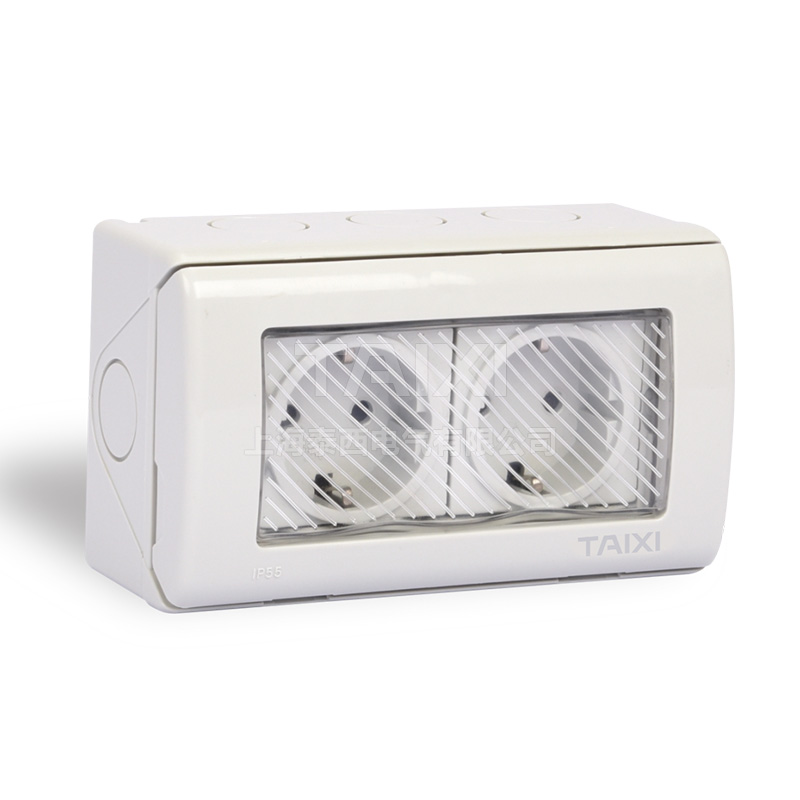

TXW-2TS DIN socket
 IP55 16 250 Surface mounting
Dimension diagram：x3 Structure diagram：c1
Model
 Name
 IP Grade Curent
（A）		 Voltage
（V）		 Installation

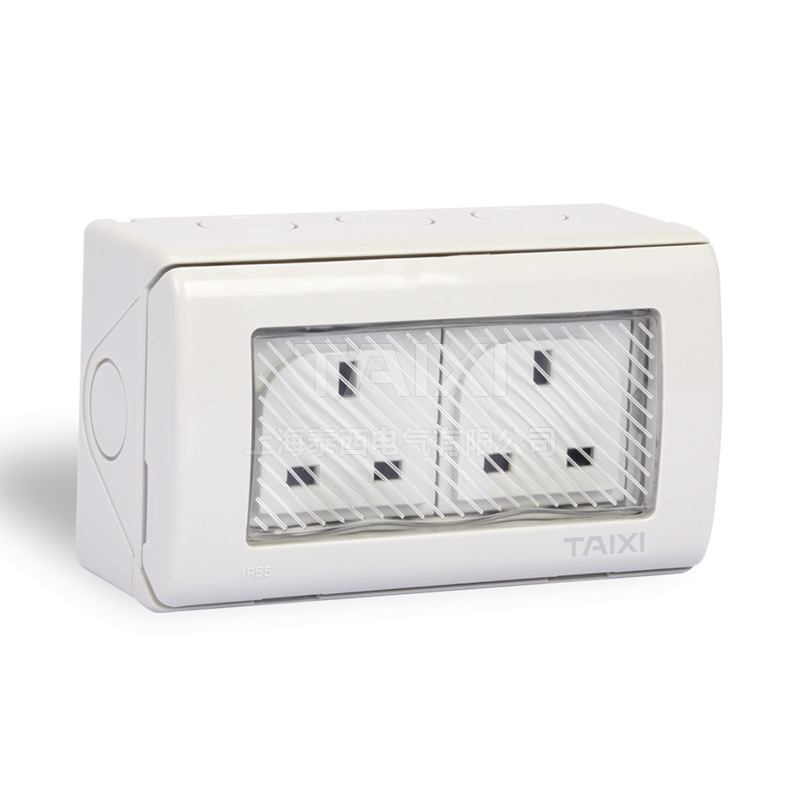

TXW-2S BS socket
 IP55 13 250 Surface mounting
Dimension diagram：x3 Structure diagram：c1
Model
 Name
 IP Grade Curent
（A）		 Voltage
（V）		 Installation

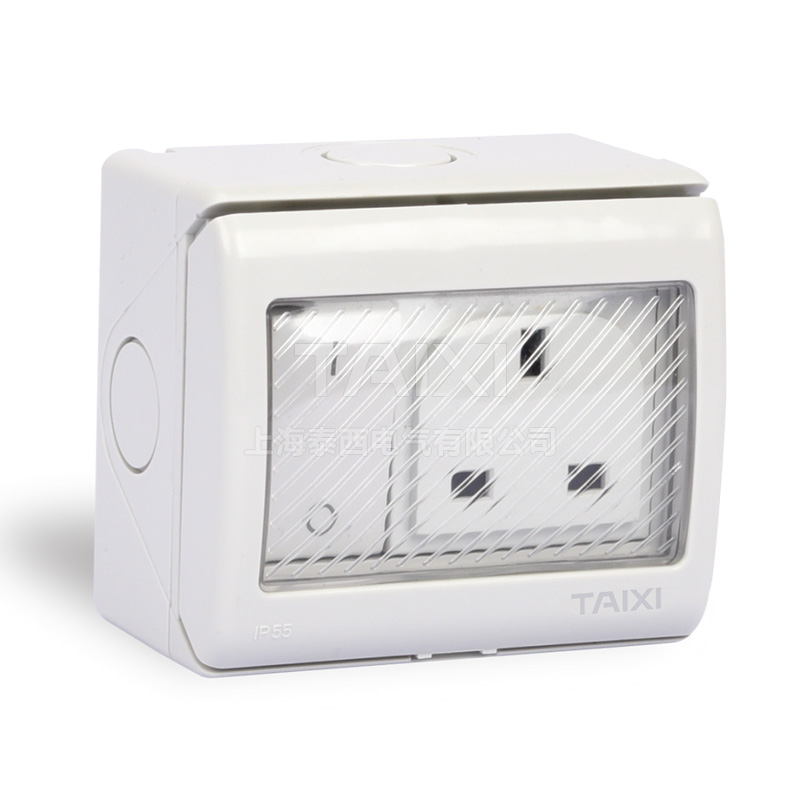

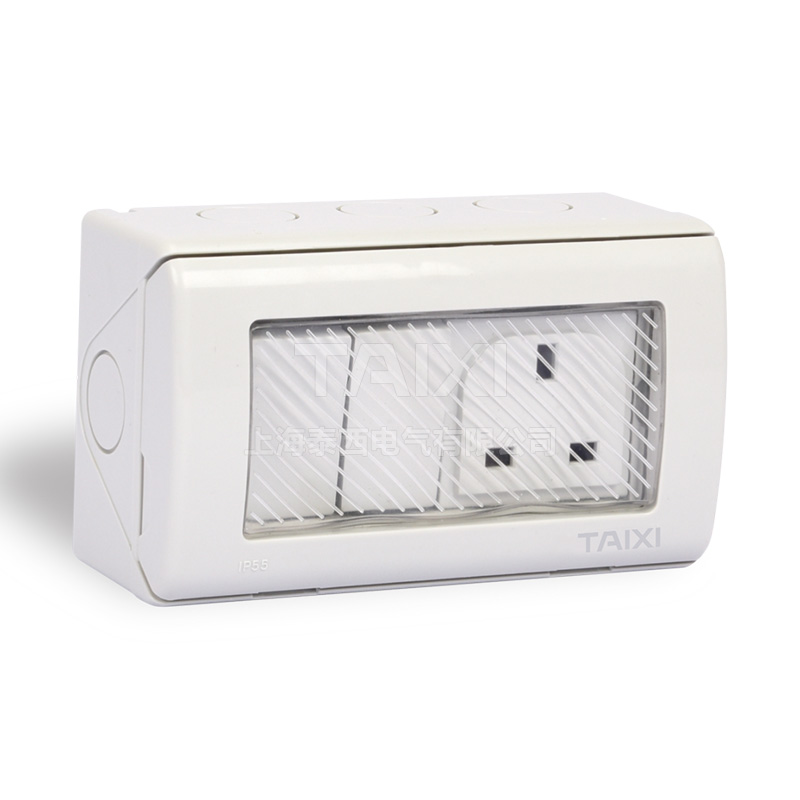

TXW-1GSS BS switch socket IP55 13 250 Surface mounting
Dimension diagram：x2 Structure diagram：c1
Model
 Name
 IP Grade Curent
（A）		 Voltage
（V）		 Installation
TXW-1GBSS BS switch socket
 IP55 13 250 Surface mounting
Dimension diagram：x2 Structure diagram：c1
Model
 Name
 IP Grade Curent
（A）		 Voltage
（V）		 Installation

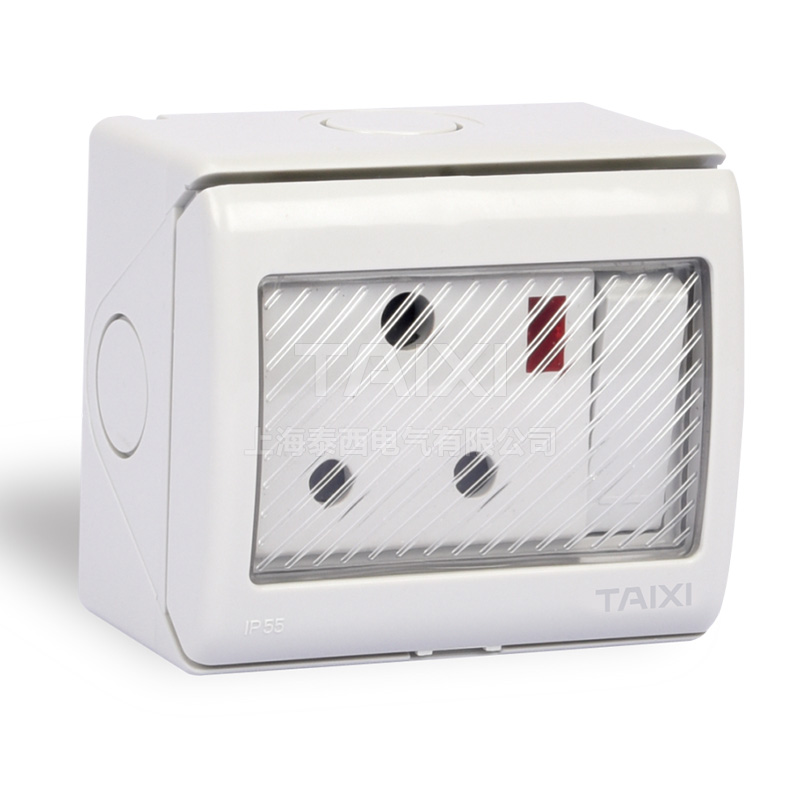

TXW-SSR SABS switch socket
 IP55 15 250 Surface mounting
Dimension diagram：x2 Structure diagram：c1
Model
 Name
 IP Grade Curent
（A）		 Voltage
（V）		 Installation
TXW-1GSTS DIN switch socket IP55 16 250 Surface mounting
Dimension diagram：x2 Structure diagram：c1
Model
 Name
 IP Grade Curent
（A）		 Voltage
（V）		 Installation

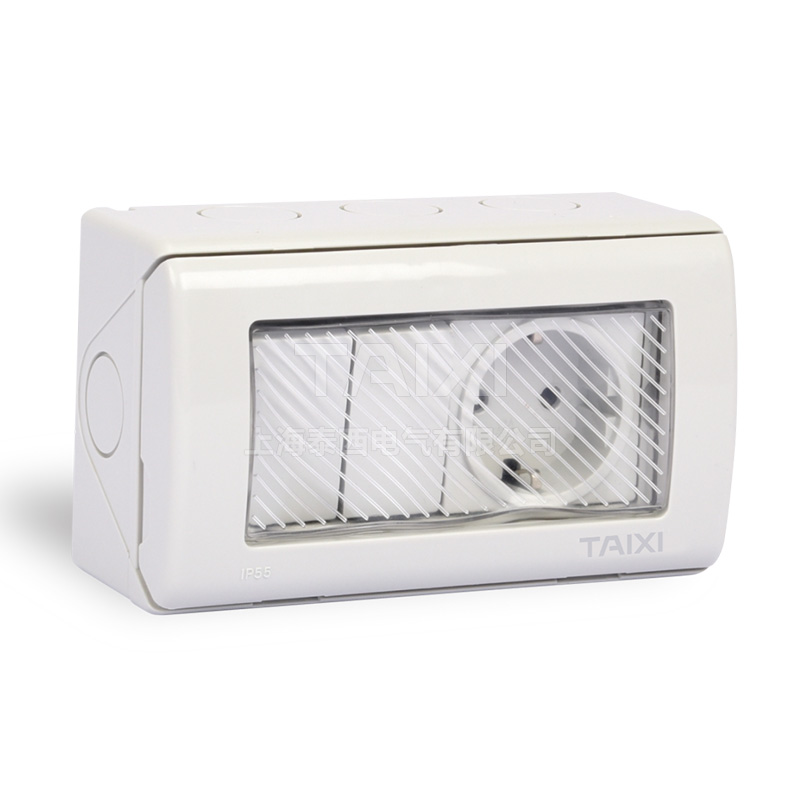

TXW-2GSTS DIN switch socket
 IP55 16 250 Surface mounting
Dimension diagram：x3 Structure diagram：c1
Model
 Name
 IP Grade Curent
（A）		 Voltage
（V）		 Installation
TXW-2GSS BS switch socket
 IP55 13 250 Surface mounting
Dimension diagram：x3 Structure diagram：c1
Model
 Name
 IP GradeCurent
（A）		 Voltage
（V）		 Installation

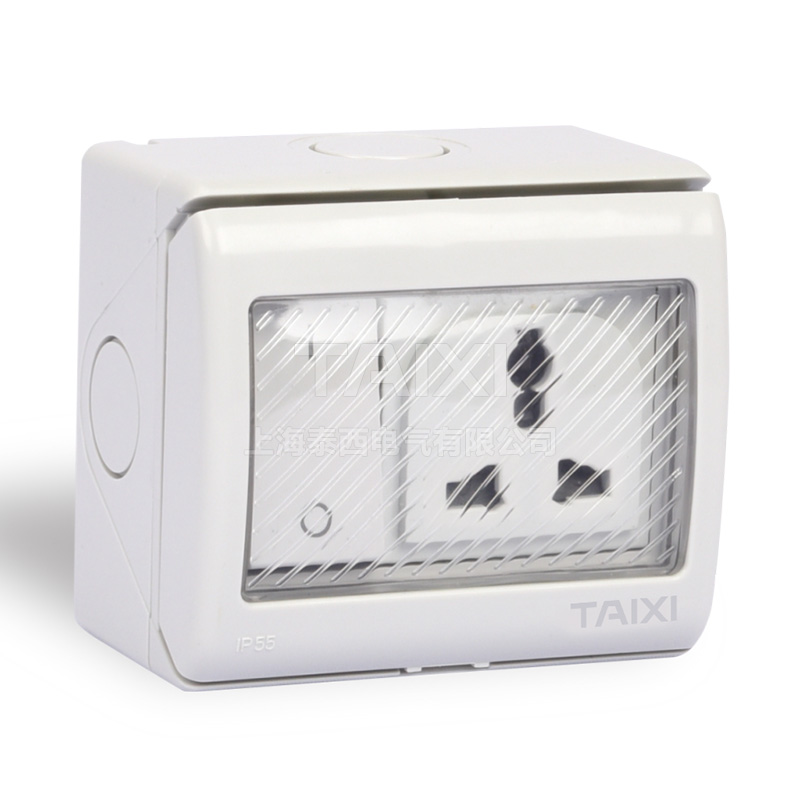

TXW-1GSDS Multi-function switch socket
 IP55 15 250 Surface mounting
Dimension diagram：x3 Structure diagram：c1
Model
 Name
 IP Grade Curent
（A）		 Voltage
（V）		 Installation

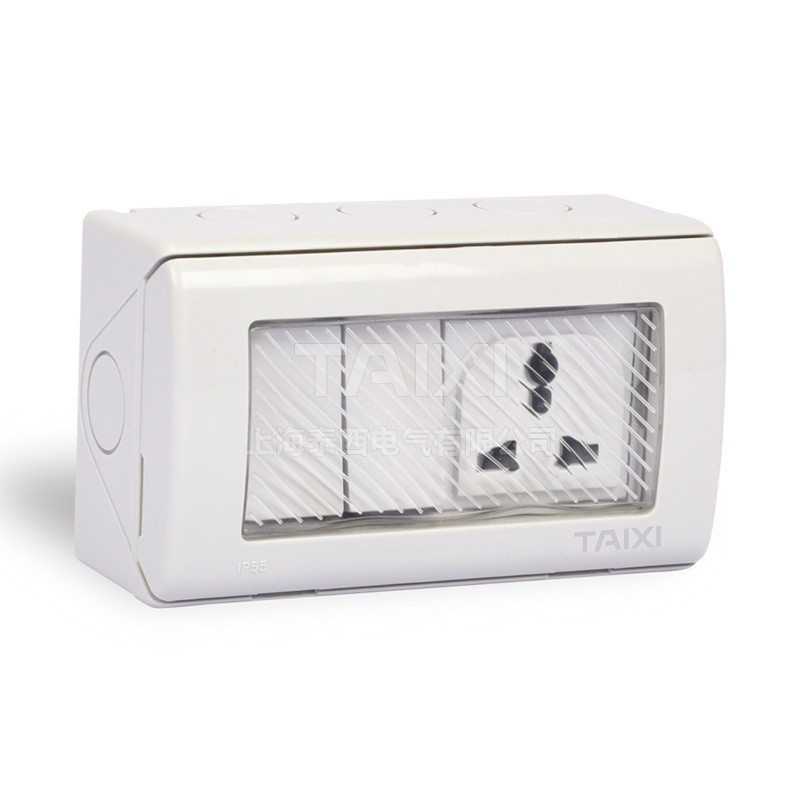

TXW-2GSDS Multi-function switch socket
 IP55 15 250 Surface mounting
Dimension diagram：x3 Structure diagram：c1
Model
 Name
 IP Grade Curent
（A）		 Voltage
（V）		 Installation

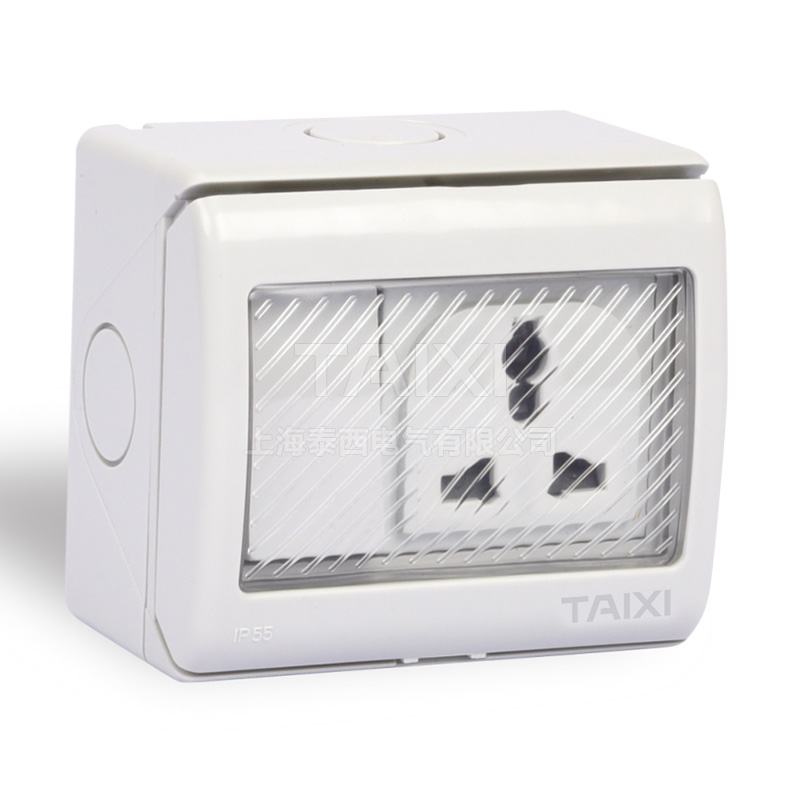

TXW-1GBSDS Multi-function switch socket
 IP55 15 250 Surface mounting
Dimension diagram：x2 Structure diagram：c1
Model
 Name
 IP Grade Curent
（A）		 Voltage
（V）		 Installation

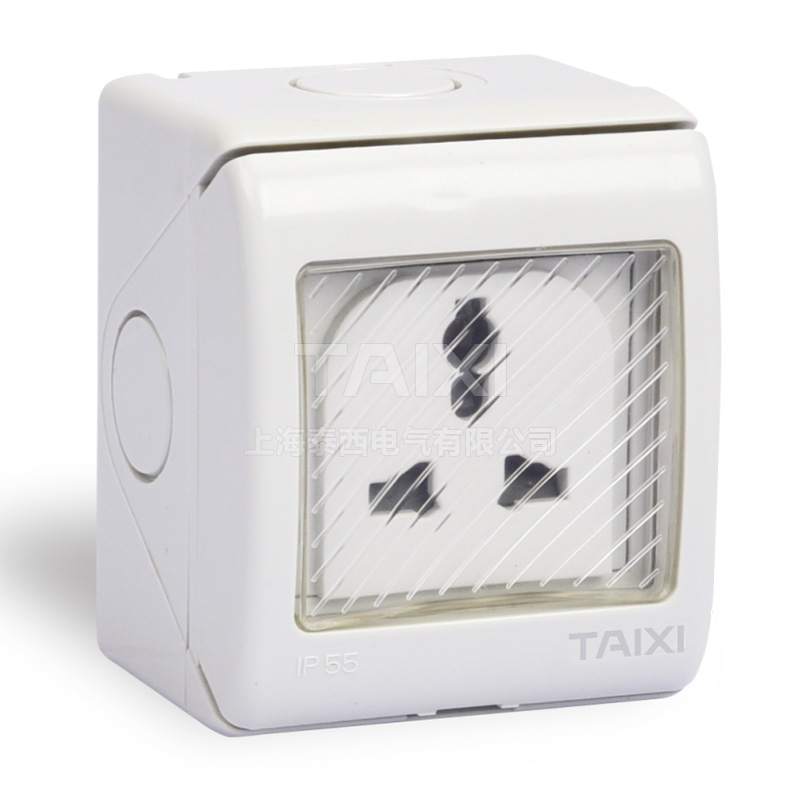

TXW-DS Multi-function socket
 IP55 15 250 Surface mounting
Dimension diagram：x3 Structure diagram：c1
Model
 Name IP Grade Current
（A）		 Voltage
（V）		 Installation

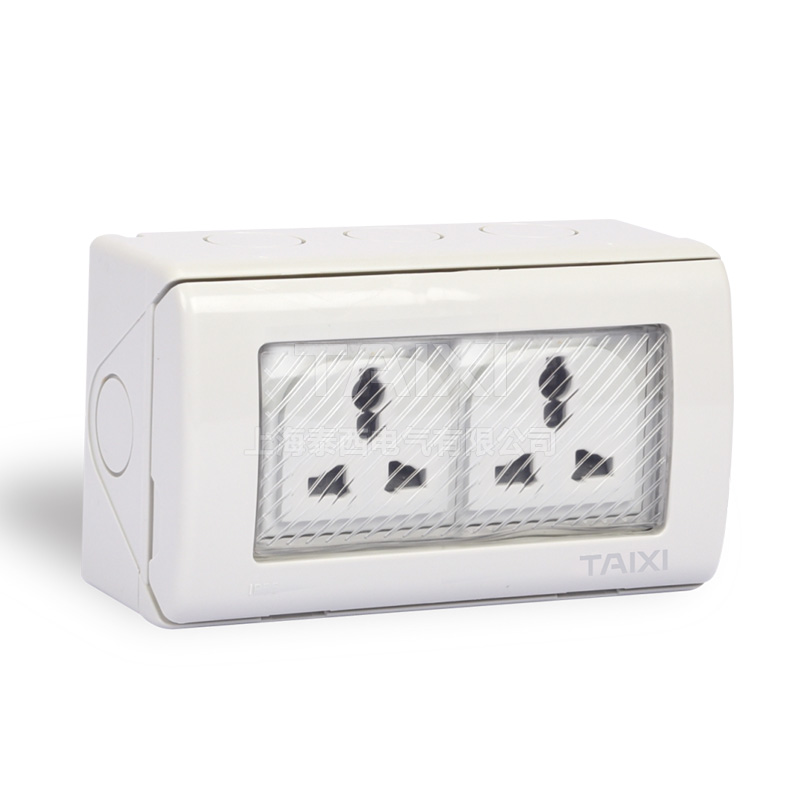

TXW-2DS Multi-function socket
 IP55 15 250 Surface mounting
Dimension diagram：x3 Structure diagram：c1

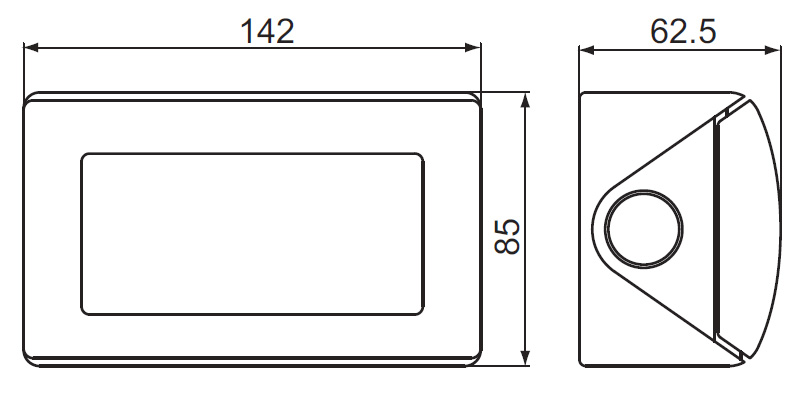

Dimension Diagram

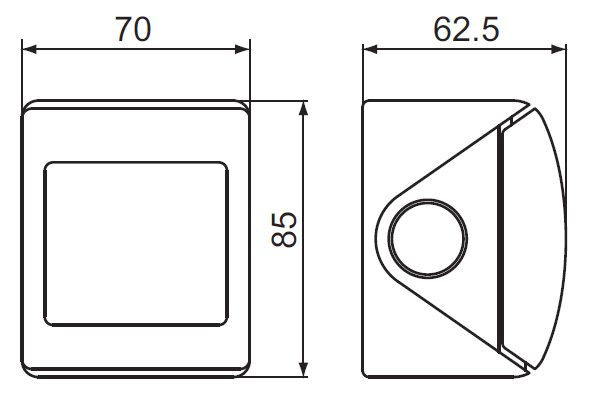

Dimension diagram:x1

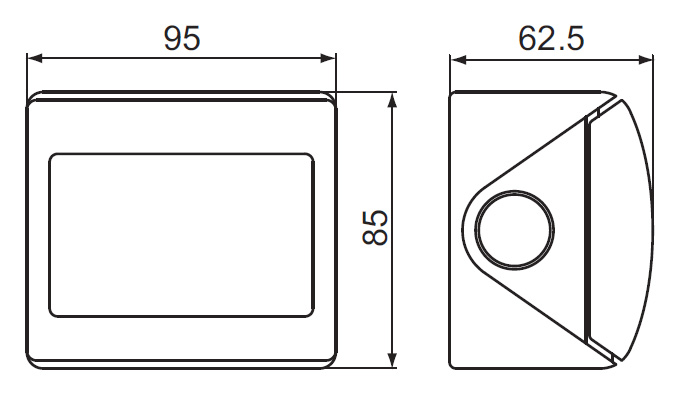

Dimension diagram:x2
Dimension diagram:x3

Structure Diagram

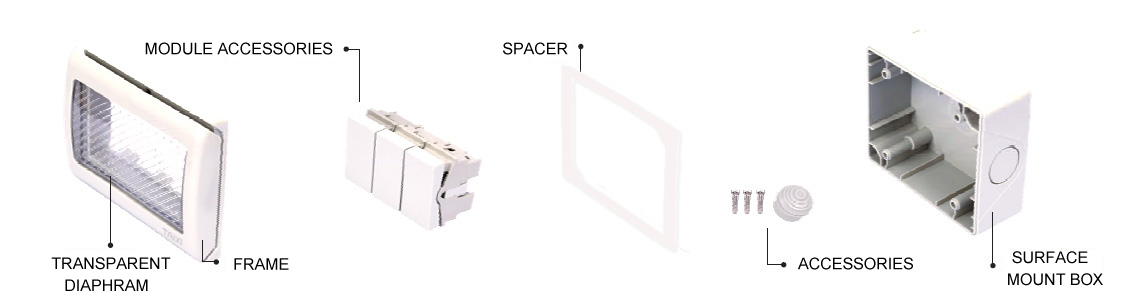

Structure diagram:c1
