Australian Standard 56CSC Connector




230V

Email: SALES@CHTAIXI.COM
WhatsApp: 0086-15669851253
Skype: TAIXI WATERPROOF

READ PDF DOWNLOAD PDF
  • Product technical
    parameters
  • Product package&
    size&weight
  • Relevant
    information
  • Product related
    video
Product technical parameters

Product Introduction

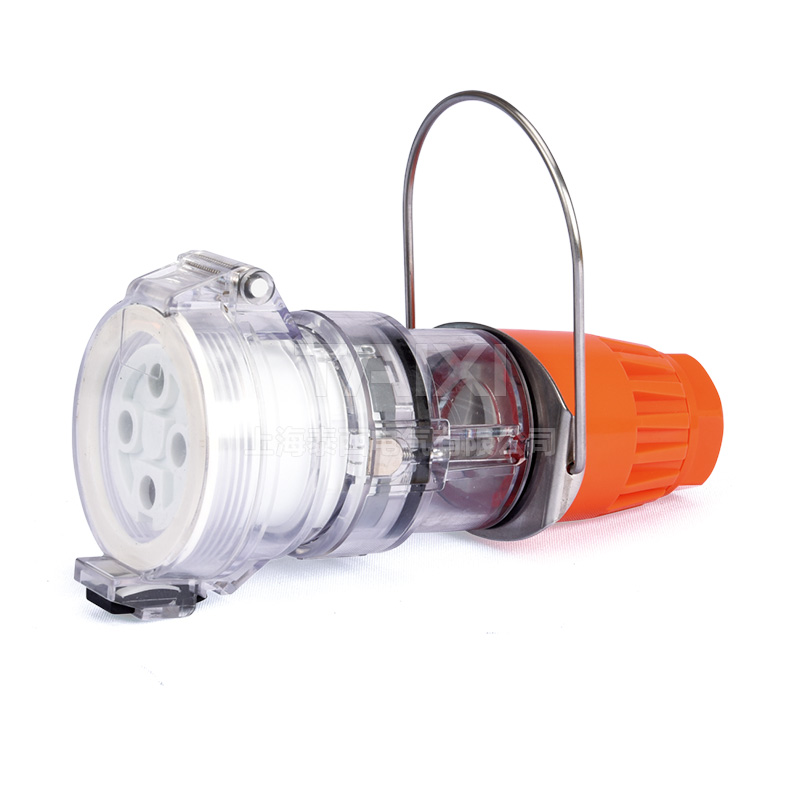

56CSC Connector, 56PO Connector

Model & Specification
20A/3P-56CSC310 IP66 250V
32A/3P-56CSC315 IP66 250V
10A/4P-56CSC410 IP66 500V
20A/4P-56CSC420 IP66 500V
32A/4P-56CSC432 IP66 500V
40A/4P-56CSC440 IP66 500V
50A/4P-56CSC450 IP66 500V
10A/5P-56CSC510 IP66 500V
20A/5P-56CSC520 IP66 500V
32A/5P-56CSC532 IP66 500V
40A/5P-56CSC540 IP66 500V
50A/5P-56CSC550 IP66 500V
10A/3P-56PO410 IP66 250V
20A/3P-56PO420 IP66 250V
32A/4P-56PO432 IP66 500V
40A/4P-56PO440 IP66 500V
50A/4P-56PO450 IP66 500V
10A/5P-56PO510 IP66 500V
20A/5P-56PO520 IP66 500V
32A/5P-56PO532 IP66 500V
40A/5P-56PO540 IP66 500V
50A/5P-56PO550 IP66 500V

Structure & Technical Parameters

Connector
■Three-phase connector is a big breakthrough in design
■Now the connector application has a common device.
■All connectors are impact and UV resistant construction.
■When the connector is used with compatible accessories such as 56P plug, 56PA plug and 56A1 electrical outlet, the protection level is IP66.
■The IP66 rated unit is equipped with a hose protective cap, which is a rating for international protection when accessories are not in use


Options
■Cap of 56CSC2 socket is suitable for single-phase extension socket
■56CSC310 and 56CSC315 in durable orange, add RO after the model，example，56CSC310 add RO in behind, then it is 56CSC31ORO

Model Ith(A) Ui(V) Pins Cable terminal dimensions mm² Nominal cable diameter mm² IP Grade Match straight plug Match bend plug Gland nut thread
Minimum Maximum
 Minimum
 Maximum
56CSC310 10 250 3(flat) 1.0 6 6 12.5 66 56P310 56PA310 20mm
56CSC315 15 250 4(flat) 1.0 6 6 12.5 66 56P315 56PA315 20mm
56CSC410 10 500 4(round) 1.0 6 6 15.7 66 56P410 56PA410 23mm
56CSC420 20 500 4(round) 1.0 6 6 15.7 66 56P420 56PA420 23mm
56CSC432 32 500 4(round) 2.5 16 9 28 66 56P432 56PA432 37mm
56CSC440 40 500 4(round) 2.5 16 9 28 66 56P440 56PA440 37mm
56CSC450 50 500 4(round) 2.5 16 9 28 66 56P450 56PA450 37mm
56CSC510 10 500 5(round) 1.0 6 6 15.7 66 56P510 56PA510 23mm
56CSC520 20 500 5(round) 1.0 6 6 15.7 66 56P520 56PA520 23mm
56CSC532 32 500 5(round) 2.5 16 9 28 66 56P532 56PA532 27mm
56CSC540 40 500 5(round) 2.5 16 9 28 66 56P540 56PA540 37mm
56CSC550 50 500 5(round) 2.5 16 9 28 66 56P550 56PA550 37mm

■Ui-Isolation Voltage
■Ith-Conventional thermal current

Dimension diagram：x1
Suspended Socket
■56PO Three-Phase suspended socket is the suspended type of 56CSC connector
■Impact and UV resistant construction
Model Ith(A) Ui(V) Pins Cable terminal dimensions mm²
 Nominal cable diameter mm² IP Grade Match straight plug
 Match bend plug
 Gland nut thread
Minimum
 Maximum
 Minimum
 Maximum
56CSC410 10 500 4(round) 1.0 6 6 15.7 66 56P410 56PA410 23mm
56CSC420 20 500 4(round) 1.0 6 6 15.7 66 56P420 56PA320 23mm
56CSC432 32 500 4(round) 2.5 16 9 28 66 56P432 56PA432 37mm
56CSC440 40 500 4(round) 2.5 16 9 28 66 56P440 56PA440 37mm
56CSC450 50 500 4(round) 2.5 16 9 28 66 56P450 56PA450 37mm
56CSC510 10 500 4(round) 1.0 6 6 15.7 66 56P510 56PA510 37mm
56CSC520 20 500 4(round) 1.0 6 6 15.7 66 56P520 56PA520 37mm
56CSC532 32 500 5(round) 2.5 16 9 28 66 56P532 56PA532 37mm
56CSC540 40 500 5(round) 2.5 16 9 28 66 56P540 56PA540 37mm
56CSC550 50 500 5(round) 2.5 16 9 28 66 56P550 56PA550 37mm

■Ui-Isolation Voltage
■Ith-Conventional thermal current
Dimension diagram：x2

Dimension Diagram

Dimension diagram :x1
Dimension diagram :x2
