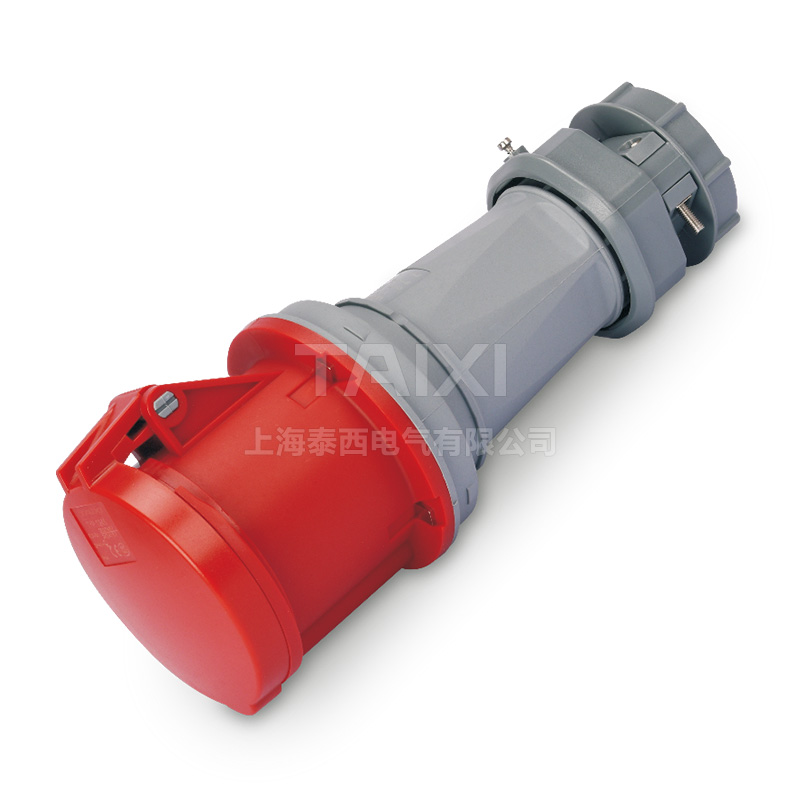

TXC Industrial Connector Socket

IP44
3P
16A
230V

Email: SALES@CHTAIXI.COM
WhatsApp: 0086-15669851253
Skype: TAIXI WATERPROOF

READ PDF DOWNLOAD PDF
  • Product technical
    parameters
  • Product package&
    size&weight
  • Relevant
    information
  • Product related
    video
Product technical parameters

Product Introduction

TXC Industrial connector socket is also called waterproof Industrial Coupler. The main function of TXC is to make clear connections, cables remain sealed, and to ensure that the insulation level of cable joints to make it safe and reliable operation. If the seal of the industrial connector is not good, not only will the oil leak cause the oil-immersed paper to dry up, but also the moisture will invade the cable interior, which will reduce the paper insulation performance.

Waterproof Grade of Industrial Waterproof Connector

At present, there are many brands and types of industrial waterproof connectors on the market, but in the true sense, waterproof electrical connectors with excellent sealing performance and safe and reliable quality are still relatively few in the market. All waterproof connectors have to undergo strict waterproof test before they are delivered. IP67 waterproof test requires that the connector products should work in locations 1meter under water for 30 minutes and still maintain the good performance of the products.
Especially the test of IP68, which is the highest grade of waterproof electrical connector, the test equipment, test conditions and test time are agreed by both suppliers and buyers. The severity of IP68 is much higher than normal tests. For example, IP68 waterproof test of waterproof connector is to ensure that it works for two weeks at a depth of 10 meters without water intake; And pass the destruction testing at 100 meters depth underwater for 12 hours then still maintain the good performance of the product.

Service Conditions & Applications

The industrial coupler can work reliably under the following conditions：
Altitude: ≤ 2000 meters.
Ambient temperature: - 25℃~+40℃, and the average temperature for 24 hours is not more than + 35 ℃.
Relative humidity: ≤ 50%.
Application: Industrial indoor and outdoor plugs and sockets, cable coupling connectors with rated working voltage ≤ AC/DC 690V, 50Hz, rated current ≤125A.
Note: Your special requests of products can be negotiated with Shanghai Taixi Electric Co., Ltd directly, if any.

Applicable Standards

IEC 60309-1
IEC 60309-2
GB/T11918-2001 : Industrial Plugs and Sockets and Coupling - Part Ⅰ: General Requirements
GB/T11919-2001 : Industrial Plugs and Sockets and Coupling - Part Ⅱ : Dimensional Interchangeability Requirements of Electrical Accessories with Plugs and Sockets

Model & Specification
16A/3P-510 IP44 230V
16A/4P-514 IP44 400V
16A/5P-5 IP44 400V
32A/3P-522 IP44 320V
32A/4P-526 IP44 400V
32A/5P-6 IP44 400V

Model & SPEC Table

A P 110V 230V 400V 500V >50-500V

50 a. 60HZ

 50 a. 60HZ 50 a. 60HZ 50 a. 60HZ 100-300Hz 300-500Hz
16 3 509 510 511   2441 2517
16 4 512 513 514 515 516 517
16 5 518 519 5 2026 2193 2495
32 3 521 522 523   2196 2674
32 4 524 525 526 527 528 529
32 5 530 531 6 2027 2245 2493

△IP 44
CEE/IEC connector, with screw terminal, one-piece housing structure.
Dimension diagram：B001 Structure diagram 01（click to view）
A P 110V 230V 400V 500V >50-500V

50 a. 60HZ

 50 a. 60HZ 50 a. 60HZ 50 a. 60HZ 100-300Hz 300-500Hz
16 3 179 180 181
16 4 192* 193 194 195
16 5 196* 197* 15
32 3 121 122 123*
32 4 124* 125 126 127
32 5 1281* 1282* 16

△IP 44
CEE/IEC connector，with screw terminal，time-saving housing structure with a lock.
Dimension diagram：B002（click to view） Structure diagram 01（click to view）
A P 110V 230V 400V 500V >50-500V

50 a. 60HZ

 50 a. 60HZ 50 a. 60HZ 50 a. 60HZ 100-300Hz 300-500Hz
63 3 1236 1237 1238
63 4 1239 1240 1241
63 5 1243 1244 1245

△IP 44
CEE/IEC connector，soft contact process，with external cable fastening device and high temperature resistant contact carrier.
Dimension diagram：B003（click to view） Structure diagram 01（click to view）
A P 110V 230V 400V 500V >50-500V

50 a. 60HZ

 50 a. 60HZ 50 a. 60HZ 50 a. 60HZ 100-300Hz 300-500Hz
16 3 539 540 541
16 4 542 543 545 546 547
16 5 548 549 550
32 3 551 552 553
32 4 554 555 556 557 558 559
32 5 560 561 562

△IP 67
CEE/IEC connector，soft contact process，with external cable fastening device and high temperature resistant contact carrier.
Dimension diagram：B004（click to view） Structure diagram 01（click to view）
A P 110V 230V 400V 500V >50-500V

50 a. 60HZ

 50 a. 60HZ 50 a. 60HZ 50 a. 60HZ 100-300Hz 300-500Hz
16 3 179a 180a 181a
16 4 192a 193a 194a 195a
16 5 196a 197a 15a
32 3 121a 122a 123a
32 4 124a 125a 126a 127a
32 5 1281a 1282a 16a

△IP 67
CEE/IEC connector，with screw terminal，time-saving housing structure with a lock.
Dimension diagram：B005
A P 110V 230V 400V 500V >50-500V

50 a. 60HZ

 50 a. 60HZ 50 a. 60HZ 50 a. 60HZ 100-300Hz 300-500Hz
63 3 1573 1574 1575
63 4 1115 1116 1117 1118
63 5 1119 1120 1121 3352

△IP 67
CEE/IEC connector，soft contact process，with external cable fastening device and high temperature resistant contact carrier.
Dimension diagram：B006
A P 110V 230V 400V 500V >50-500V

50 a. 60HZ

 50 a. 60HZ 50 a. 60HZ 50 a. 60HZ 100-300Hz 300-500Hz
125 3 3389 3390
125 4 1448 1449 1450 1451
125 5 1452 1453 1454 3174

△IP 67
CEE/IEC connector，soft contact process，with external cable fastening device and high temperature resistant contact carrier.
Dimension diagram：B007

Dimension Diagram

Dimension diagram：B001
Current(A) 16 32
Pole(P) 3 4 5 3 4 5
Dimensions a 157 162.3 164.5 203 203 203
b 59.5 68 75.5 82.4 82 88.9
d 90 97 103 109 109 116
Cross-sectional area of wire（mm2）
Minimum to Maximum
 1.5-4 1.5-4 1.5-4 2.5-10 2.5-10 2.5-10
Parameters（click to view）
Dimension diagram：B002
Current(A) 16 32
Pole(P) 3 4 5 3 4 5
Dimensions
 a 146 146.9 156.5 180 170.2 183.5
b 59.4 67.5 76 81.5 81.5 88.5
c 85 90 97.5 104 102.5 109.5
Cross-sectional area of wire（mm2）
Minimum to Maximum
 1.5-4 1.5-4 1.5-4 2.5-10 2.5-10 2.5-10
Parameters（click to view）
Dimension diagram：B003
Current(A) 63
Pole(P) 3 4 5
Dimensions
 a 2.5 268 268
b 94 95 95
d 109 109 109
Cross-sectional area of wire（mm2）
Minimum to Maximum
 6-25 6-25 6-25
Parameters（click to view）
Dimension diagram：B004
Current(A) 16 32
Pole(P) 3 4 5 3 4 5
Dimensions
 a 161 166 166.3 207 204 204.2
b 72 79.5 87 94 94 101
c 79 86 93.5 102 100 108
Cross-sectional area of wire（mm2）
Minimum to Maximum
 1.5-4 1.5-4 1.5-4 2.5-10 2.5-10 2.5-10
Parameters（click to view）
Dimension diagram：B005
Current(A) 16 32
Pole(P) 3 4 5 3 4 5
Dimensions
 a 146 150 155 175 175 190
b 72.2 78 87 93 93 100.5
c 81.4 87.2 95 100.5 101 107.5
Cross-sectional area of wire（mm2）
Minimum to Maximum
 1.5-4 1.5-4 1.5-4 2.5-10 2.5-10 2.5-10
Dimension diagram：B006
Current(A) 63
Pole(P) 3 4 5
Dimensions
 a 260 260 260
b 109 109 109
d 113 113 113
Cross-sectional area of wire（mm2）
Minimum to Maximum
 6-25 6-25 6-25

Structure Diagram

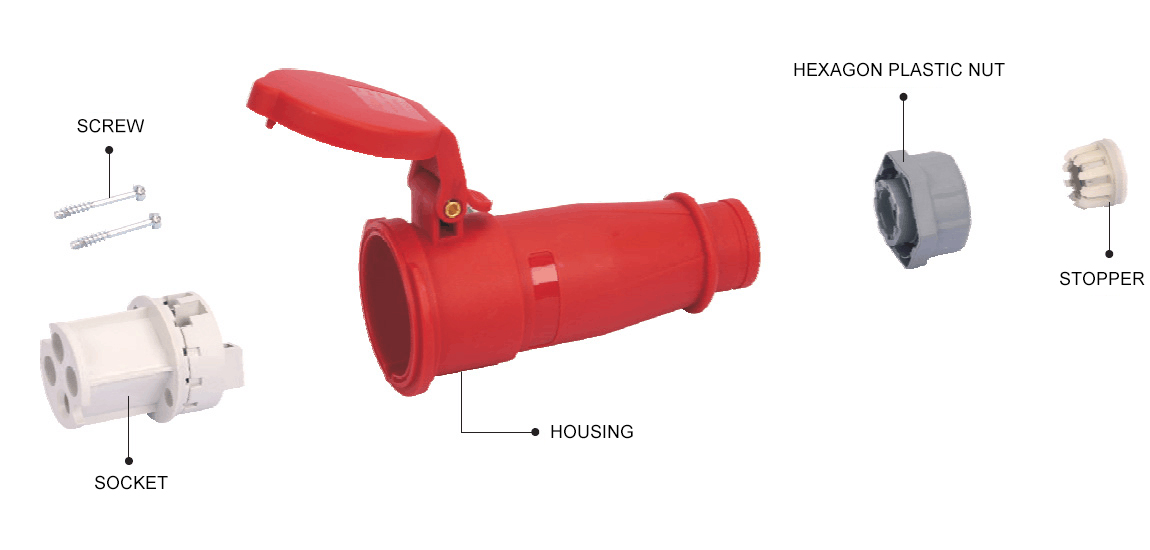

Structure diagram 01
