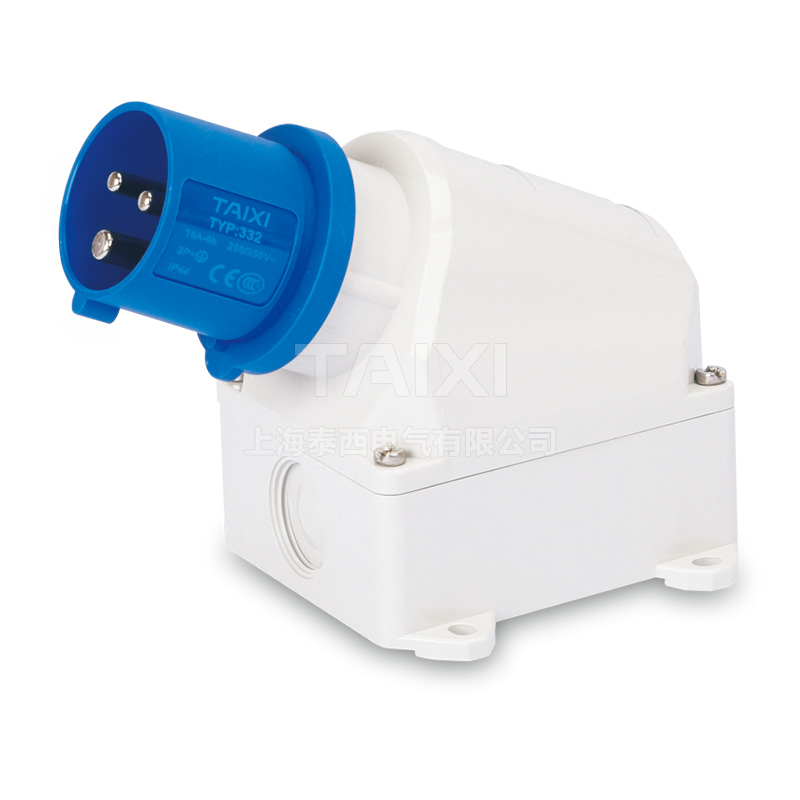

Surface Mounted Commando Plug
Widely used in buildings, factories, outdoor power distribution, and other places with high humidity and dust

IP44
3P
16A
230V

Email: SALES@CHTAIXI.COM
WhatsApp: 0086-15669851253
Skype: TAIXI WATERPROOF

READ PDF DOWNLOAD PDF
  • Product technical
    parameters
  • Product package&
    size&weight
  • Relevant
    information
  • Product related
    video
Product technical parameters

Product Introduction

The housing of surface mounted industrial plug for device is made of PA66 material. The conductor part is made of environment-friendly nickel plated brass material, with advantages of with fire resistance, corrosion resistance and flame retardant, and resistance of mechanical damage.  Surface mounted industrial plug for device are widely used with a variety of mechanical equipment. The manufacturer guarantees that all products are subject to strict full inspection and waterproof sampling inspection, so that every product has a qualified enterprise code, 99% of the factory products pass!

Model & Specification

16A/3P-332 IP44 230V
16A/4P-336 IP44 400V
16A/5P-342 IP44 400V
32A/3P-344 IP44 230V
32A/4P-348 IP44 400V
32A/5P-354 IP44 400V

Model & SPEC Table

A P 110V 230V 400V 500V >50-500V

50 a. 60HZ

 50 a. 60HZ 50 a. 60HZ 50 a. 60HZ 100-300Hz 300-500Hz
16 3 331 332 333
16 4 334 335 336 337 921 922
16 5 340 341 342 2359 2668 2400
32 3 343 344 345
32 4 346 347 348 349
32 5 352 353 354 2386

△IP 44
CEE/IEC Surface mounted industrial plug for device
Dimension diagram：E001

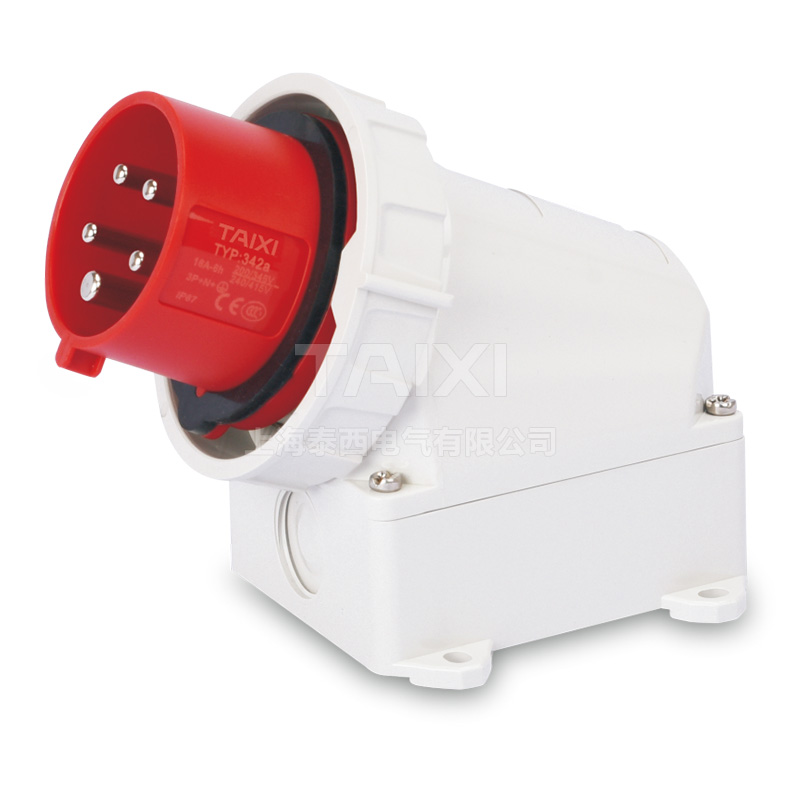

A P 110V 230V 400V 500V >50-500V

50 a. 60HZ

 50 a. 60HZ 50 a. 60HZ 50 a. 60HZ 100-300Hz 300-500Hz
16 3 331a 332a 333a
16 4 334a 335a 336a 337a 921a 922a
16 5 340a 341a 342a 2359a 2668a 2400a
32 3 343a 344a 345a
32 4 346a 347a 348a 349a
32 5 352a 353a 354a 2386a

△IP 67
CEE/IEC Surface mounted industrial plug for device
Dimension diagram：E002

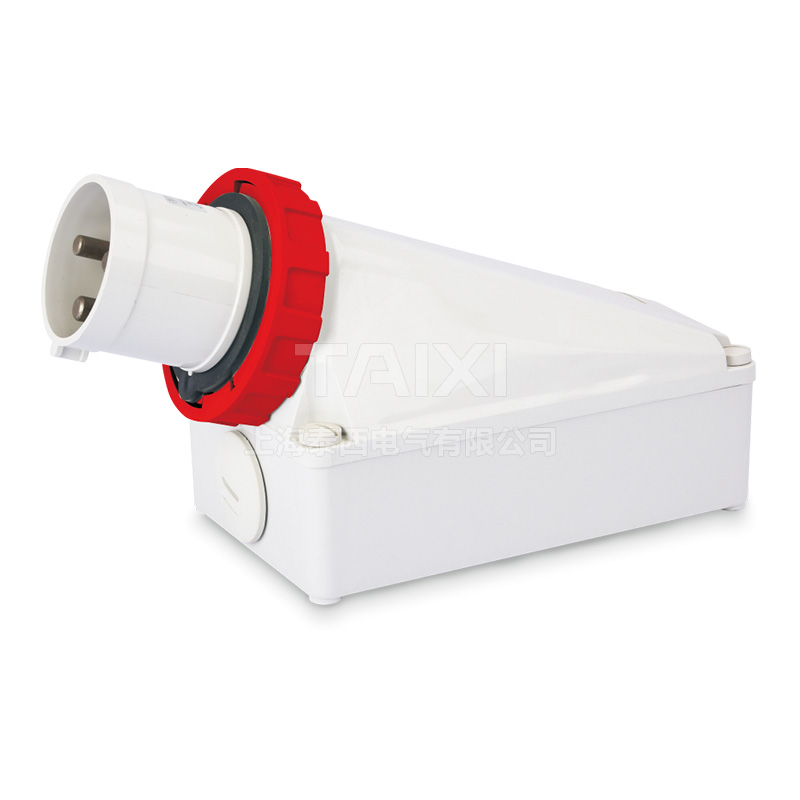

A P 110V 230V 400V 500V >50-500V

50 a. 60HZ

 50 a. 60HZ 50 a. 60HZ 50 a. 60HZ 100-300Hz 300-500Hz
63 3 1216 1107 1217
63 4 355 356 357 358
63 5 359 360 361
125 4 362 363 364 365
125 5 366 367 368

△IP 67
CEE/IEC Surface mounted industrial plug for device
Dimension diagram：E003

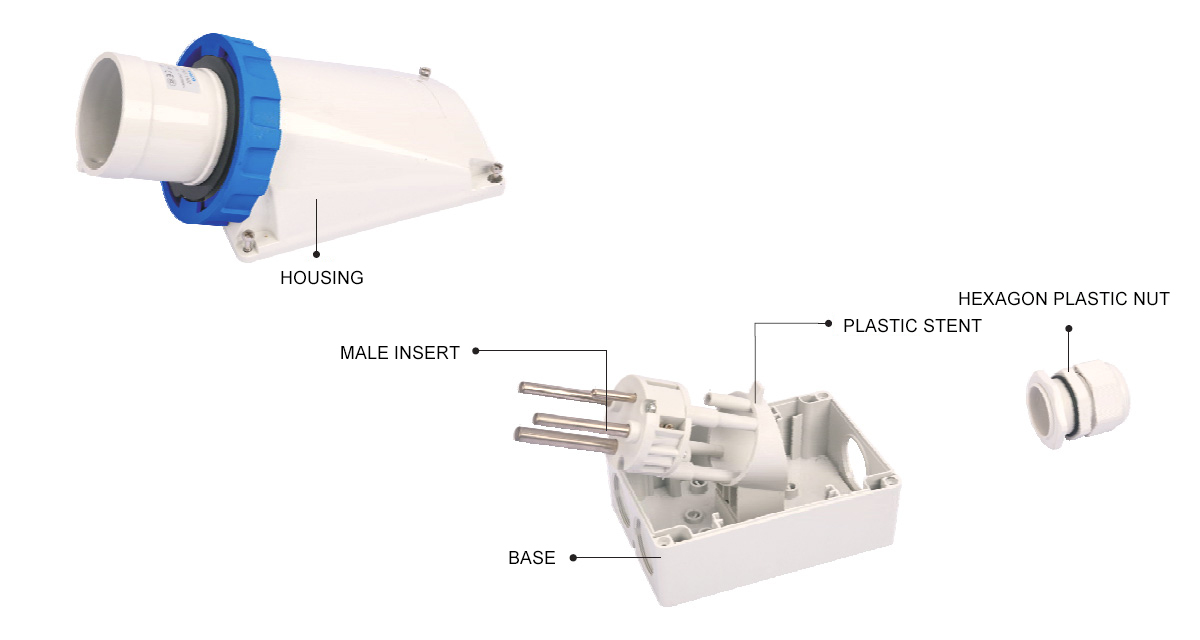

Structure Diagram

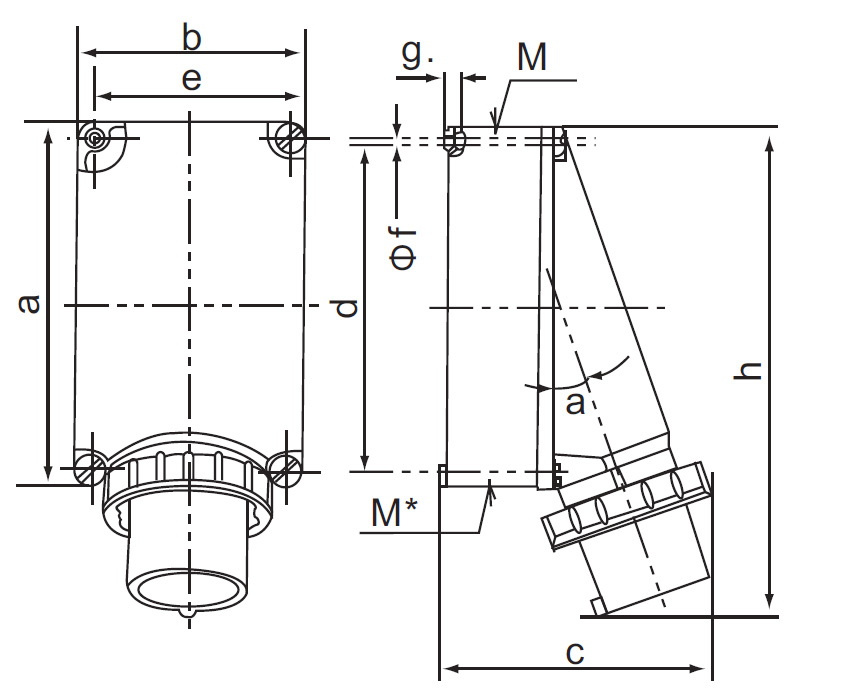

Dimension diagram of surface mounted plug for device：E001
Current(A) 16 32
Pole(P) 3 4 5/7 3 4 5/7
Dimensions a 95 95 95 120 120 120
b 102 102 102 112 112 112
c 117 118 122 141 141 147
d 64.2 64.2 64.2 90.2 90.2 90.2
e 77.5 77.5 77.5 79 79 79
f 88 88 88 98.5 98.5 98.5
g. 5.5 5.5 5.5 5.5 5.5 5.5
h 5 5 5 5 5 5
M 144 146 147 189 189 189
M* 25 25 25 32 32 32
  1个M25（Stopper）can be cut 1个M32（Stopper）can be cut
Max. Cable Diameter（mm） 18 18 18 25 25 25
Cross-sectional area of wire（mm2）
Minimum to Maximum		 1.5-4 1.5-4 1.5-4 2.5-10 2.5-10 2.5-10

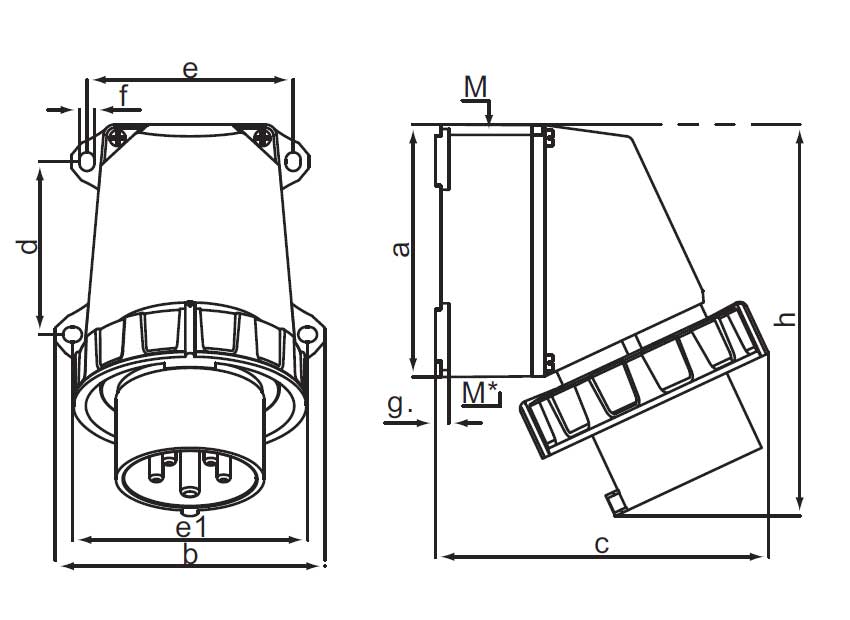

Dimension diagram of surface mounted plug for device：E002
Current(A) 16 32
Pole(P) 3 4 5/7 3 4 5/7
Dimensions a 95 95 95 120 120 120
b 102 102 102 112 112 112
c 117 118 122 141 141 147
d 64.2 64.2 64.2 90.2 90.2 90.2
e 77.5 77.5 77.5 79 79 79
f 88 88 88 98.5 98.5 98.5
g. 5.5 5.5 5.5 5.5 5.5 5.5
h 5 5 5 5 5 5
M 144 146 147 189 189 189
M* 25 25 25 32 32 32
  1个M25（堵头）可剪断 1个M32（堵头）可剪断
Max. Cable Diameter（mm） 18 18 18 25 25 25
Cross-sectional area of wire（mm2）
Minimum to Maximum
 1.5-4 1.5-4 1.5-4 2.5-10 2.5-10 2.5-10

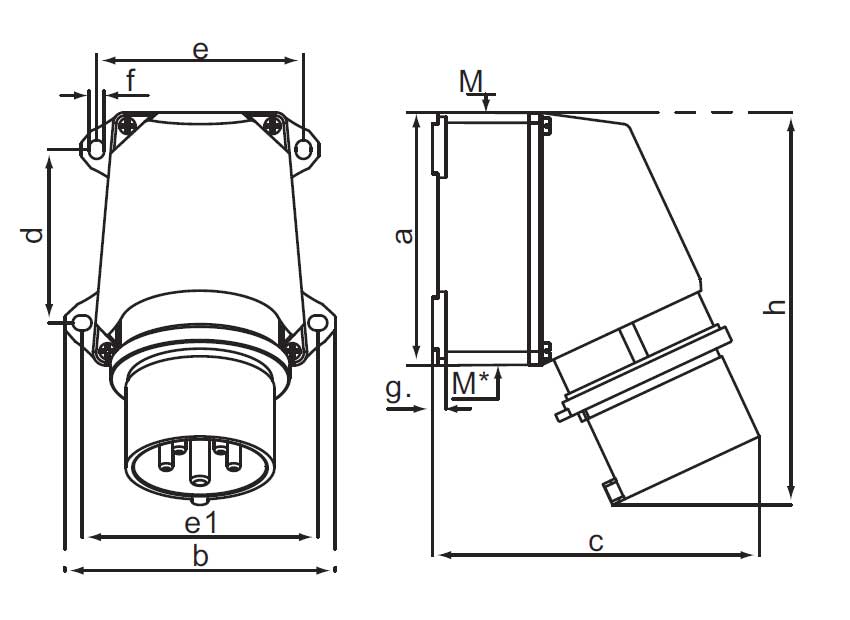

Dimension diagram of surface mounted plug for device：E003
Current(A) 63 125
Pole(P) 3 4 5 4 5
Dimensions a 170 170 170 264 264
b 118 118 118 163 163
c 171 171 171 205 205
d 136 136 136 240 240
e 104 104 104 140 140
f 6.1 6.1 6.1 8.1 8.1
g. 6 6 6 8 8
h 250 250 250 355 355
M 40 40 40 50 50
M* 2x40 2x40 2x40 50 50
  25° 25° 25° 20° 20°
Max. Cable Diameter（mm） 32 32 32 38 38
Cross-sectional area of wire（mm2）
Minimum to Maximum
 4-10 4-10 4-10 16-35 16-35

Installation Instruction


Product package& size&weight
Relevant information
Product related< video
keywords: Commando Plug
