Mechanical Interlock Socket

IP44
3P
16A
230V

Email: SALES@CHTAIXI.COM
WhatsApp: 0086-15669851253
Skype: TAIXI WATERPROOF

READ PDF DOWNLOAD PDF
  • Product technical
    parameters
  • Product package&
    size&weight
  • Relevant
    information
  • Product related
    video
Product technical parameters

Introduction

Industrial machinery interlocking socket includes housing, knob switch and socket component. The knob switch includes knob, knob switch axis and switch mechanism. The switch mechanism is adjacent to the socket component in the shell. A linkage locking mechanism is added between the knob switch and the socket component to remove the limit when the rotary switch is disconnected so that the plug is directed against the socket component. The utility model can be inserted or pulled out, and when the rotary switch is turned on and connected to the power supply after the plug is inserted into the socket component, the plug is locked on the socket component.

Industrial machinery interlocking socket has unique design, reasonable structure, power socket has spring clamp spring structure, which can ensure the very low contact resistance between the socket and the socket when the socket is connected. The shell color indicates the use of different voltages and frequencies. Different types of plugs and sockets can prevent mis-insertion because of different plug positions, diameters and poles. Designed anti-drop device, it has excellent electrical insulation performance and dielectric strength, shock resistance, and can work steadily in indoor or outdoor environment at lower or higher temperatures. IP67 waterproof grade.

Features

1. Housings: The housings of waterproof plugs and sockets are made of high quality imported plastic (nylon) which can achieve no deformations at 90℃ and no changes of technical indexes at -40℃ in normal situation.

2. Plastic cores: The cores of industrial plugs and sockets are made of fire-resistent plastic (nylon) which can withstand 120℃ in normal situation. In the flame retardant test (hot filament at 850℃), no visible flame, no persistent glow, silk paper does not fire, the flame extinguishes within 30 seconds after the hot filament is removed, and the glow extinguishes.

3. Pin and contact-tube accessories: Adopting high quality imported copper, with good plugging and anti-corrosion features. Overcurrent and overvoltage withstanding have reached the advanced level of China.

Model & Specification

16A/3P-7002 IP44 230V
16A/4P-5100 IP44 400V
16A/5P-5103 IP44 400V
32A/3P-5696 IP44 230V
32A/4P-5105 IP44 400V
32A/5P-5108 IP44 400V
63A/3P-6571 IP44 230V
63A/4P-5956 IP44 400V
63A/5P-5959 IP44 400V

Function Introduction

1. Industrial machinery interlocking sockets can restrict users to plug and unplug plugs only when power is cut off. It solves the problem that plugs of live plugging and unplugging high current circuit are prone to spark or fire, explosion or short circuit accidents caused by instantaneous loading of high current.

2. The product has good insertion force and good contact to ensure good safety in the process of use. It should be used with socket, has the advantages of dust-proof, water-proof, splash-proof, moisture-proof, anti-corrosion, anti-misinsertion, anti-falling, fire-retardant, high temperature resistance, anti-aging, high toughness, good impact resistance, high finish and high current soft contact. It is well recognized by customers at home and abroad.

3. The housing of the product is made of high quality nylon 66, which has the characteristics of corrosion resistance, high strength and high flame retardancy; the plug-in part is made of copper 3602, which has high elasticity and conductivity. This kind of product is very suitable for power connection under harsh working conditions.
In order to achieve the goal of high quality, we have passed and operated the international quality management system of ISO 9001 standard through sand and dust test, rain test, high and low temperature test and hot ratio test.
All products are classified into two levels of protection: IP44 (waterproof splash), and IP67 (applicable to very humid places).

Scope of application

Machinery interlocking sockets are widely used in steel smelting, oil chemical, electric power, electronics, construction site, airport, mining, water treatment plants, plastic machinery, IT, military, railway, aerospace, medical, food, automated production equipment, packaging equipment, tunnel project, generator set, power distribution cabinets, power transmission and distribution equipment, outdoor stadium outdoor display, stage lighting, audio, sea port, wharf, shopping malls, hotels and other kinds of enterprises, to provide security for the special environment of all kinds of electric equipment, is a new generation of ideal power supply plug device. Reliable products, quality service, will bring you more secure electricity protection.

Model & SPEC Table

A P 110V 230V 400V 500V >50-500V

50 a. 60HZ

 50 a. 60HZ 50 a. 60HZ 50 a. 60HZ 100-300Hz 300-500Hz
16 3 7010 7002
16 4 5457 5099 5100 5101
16 5 5459 5102 5103
32 3 5743 5696
32 4 5460 5104 5105 5106
32 5 5462 5107 5108
63 3 6569 6571
63 4   5955 5956
63 5
 5959

△IP 44
CEE/IEC socket, with switch and mechanical interlock.
Dimension diagram：ja001
A P 110V 230V 400V 500V >50-500V

50 a. 60HZ

 50 a. 60HZ 50 a. 60HZ 50 a. 60HZ 100-300Hz 300-500Hz
16 3 7011 7012
16 4   5599 5600 5601
16 5   5602 5603
32 3 5924 5793
32 4   5604 5605 5606
32 5   5607 5608
63 3 5925 5911
63 4   5109 5110 5111
63 5   5112 5113 5759

△IP 66
CEE/IEC socket, with switch and mechanical interlock.
Dimension diagram：ja002
A P 110V 230V 400V 500V >50-500V

50 a. 60HZ

 50 a. 60HZ 50 a. 60HZ 50 a. 60HZ 100-300Hz 300-500Hz
16 3 TXS-J134-4 TXS-J134-6 TXS-J134-9 TXS-J134-7
16 4 TXS-J144-4 TXS-J144-9 TXS-J144-6 TXS-J144-7
16 5 TXS-]154-4 TXS-J154-9 TXS-J154-6 TXS-J154-7
32 3 TXS-J234-4 TXS-J234-6 TXS-J234-9 TXS-J234-7
32 4 TXS-J244-4 TXS-J244-9 TXS-J244-6 TXS-J244-7
32 5 TXS-J254-4 TXS-J254-9 TXS-J254-6 TXS-J254-7

△IP 44
CEE/IEC socket, with switch and mechanical interlock.
Dimension diagram：ja003
A P 110V 230V 400V 500V >50-500V

50 a. 60HZ

 50 a. 60HZ 50 a. 60HZ 50 a. 60HZ 100-300Hz 300-500Hz
16 3 TXS-J136-4 TXS-J136-6 TXS-J136-9 TXS-J136-7
16 4 TXS-J146-4 TXS-J146-9 TXS-J146-6 TXS-J146-7
16 5 TXS-]156-4 TXS-J156-9 TXS-J156-6 TXS-J156-7
32 3 TXS-J236-4 TXS-J236-6 TXS-J236-9 TXS-J236-7
32 4 TXS-J246-4 TXS-J246-9 TXS-J246-6 TXS-J246-7
32 5 TXS-J256-4 TXS-J256-9 TXS-J256-6 TXS-J256-7

△IP 66
CEE/IEC socket, with switch and mechanical interlock.
Dimension diagram：ja004

Dimension Diagram

Dimension diagram：ja001
Current(A) 16 32 63
Pole(P) 3 4 5/7 3 4 5/7 3 4 5
Dimensions a 225 225 225 225 225 225 264 264 264
b 118 118 118 118 118 118 163 163 163
c 144 146 147 152 152 153 196 196 196
d 208 208 208 208 208 208 240 240 240
e 101 101 101 101 101 101 140 140 140
f 6.3 6.3 6.3 6.3 6.3 6.3 8.1 8.1 8.1
g. 8 8 8 8 8 8 8 8 8
h 252 255 259 268 268 274 300 300 300
M 2x32 2x32 2x32 2x32 2x32 2x32 40 40 40
M* 2x25 2x25 2x25 2x25 2x25 2x25 2x40 2x40 2x40
Max. cable diameter（mm） 25 25 25 25 25 25 32 32 32
Cross-sectional area of wire（mm2）
Minimum to Maximum
 1.5-4 1.5-4 1.5-4 2.5-10 2.5-10 2.5-10 6-25 6-25 6-25
Dimension diagram：ja002
Current(A) 16 32 63
Pole(P) 3 4 5/7 3 4 5/7 3 4 5
Dimensions
 a 225 225 225 225 225 225 264 264 264
b 118 118 118 118 118 118 163 163 163
c 144 146 147 152 152 153 196 196 196
d 208 208 208 208 208 208 240 240 240
e 101 101 101 101 101 101 140 140 140
f 6.3 6.3 6.3 6.3 6.3 6.3 8.1 8.1 8.1
g. 8 8 8 8 8 8 8 8 8
h 252 255 259 268 268 274 300 300 300
M 2x32 2x32 2x32 2x32 2x32 2x32 40 40 40
M* 2x25 2x25 2x25 2x25 2x25 2x25 2x40 2x40 2x40
Max. cable diameter（mm）
 25 25 25 25 25 25 32 32 32
Cross-sectional area of wire（mm2）
Minimum to Maximum
 1.5-4 1.5-4 1.5-4 2.5-10 2.5-10 2.5-10 6-25 6-25 6-25
Dimension diagram：ja003
Current(A) 16 32
Pole(P) 3 4 5/7 3 4 5/7
Dimensions
 a 90 90 90 90 90 90
b 180 180 180 180 180 180
c 115 116 117 123 123 123
d 105 105 105 105 105 105
e 70 70 70 70 70 70
f 120 120 120 120 120 120
g 6.5 6.5 6.5 6.5 6.5 6.5
m 25 25 25 25 25 25
Max. cable diameter（mm）
 25 25 25 25 25 25
Cross-sectional area of wire（mm2）
Minimum to Maximum
 1.5-4 1.5-4 1.5-4 2.5-10 2.5-10 2.5-10
Dimension diagram：ja004
Current(A) 16 32
Pole(P) 3 4 5 3 4 5
Dimensions
 a 90 90 90 90 90 90
b 180 180 180 180 180 180
c 115 116 117 123 123 124
d 105 105 105 105 105 105
e 70 70 70 70 70 70
f 120 120 120 120 120 120
g 6.5 6.5 6.5 6.5 6.5 6.5
m 25 25 25 25 25 25
Max. cable diameter（mm）
 25 25 25 25 25 25
Cross-sectional area of wire（mm2）
Minimum to Maximum
 1.5-4 1.5-4 1.5-4 2.5-10 2.5-10 2.5-10

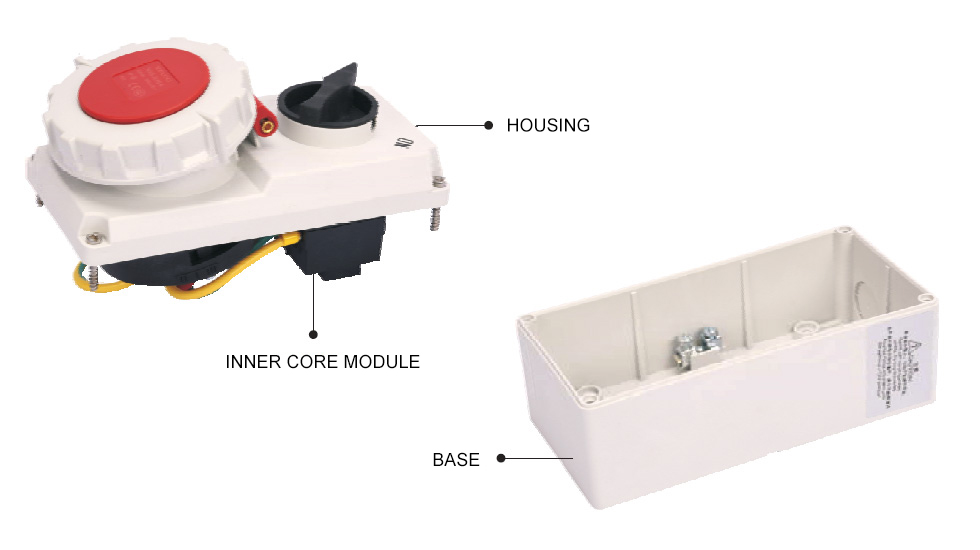

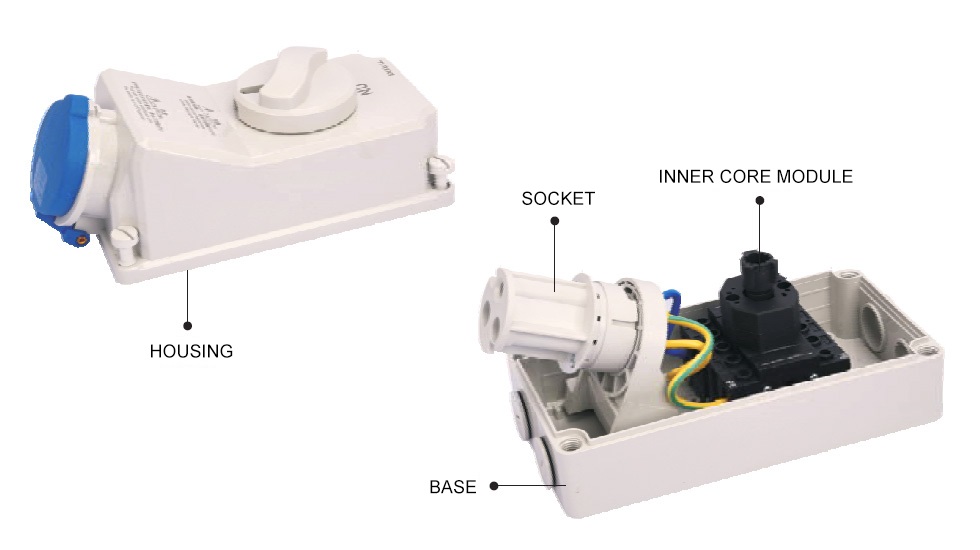

Structure Diagram


Mechanical Interlock Introduction



State 1: the mechanical interlock switch is in the OFF position and cannot rotate the switch handle.
State 2: when the plug is inserted, push the mechanical interlock to lock the top. The switch rotates from OFF to ON. When the circuit is connected, the plug cannot be pulled out.
