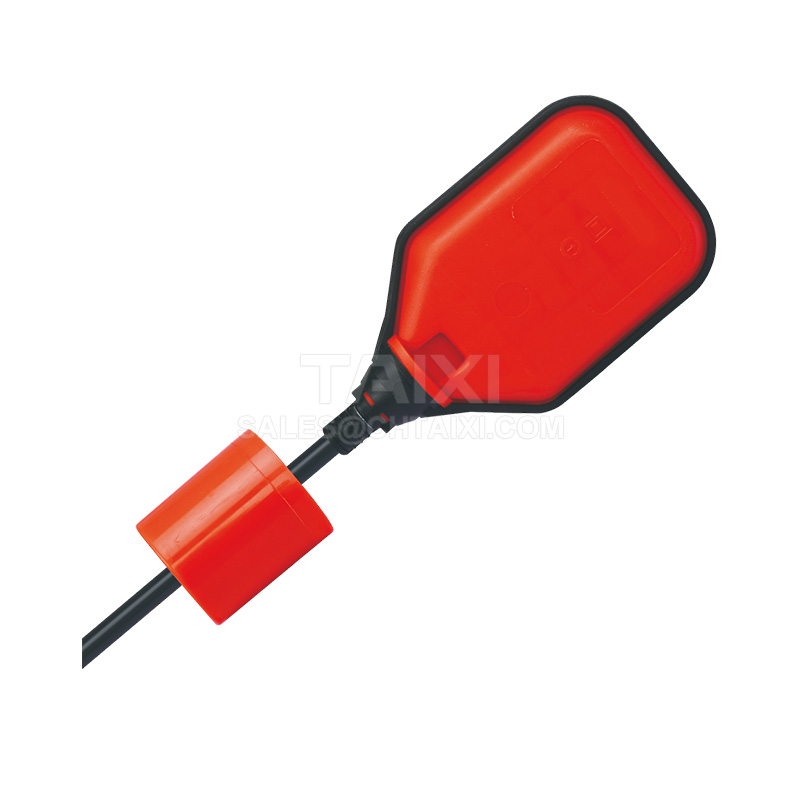

TXY Water Level Control Float Switch



16A

Email: SALES@CHTAIXI.COM
WhatsApp: 0086-15669851253
Skype: TAIXI WATERPROOF

READ PDF DOWNLOAD PDF
  • Product technical
    parameters
  • Product package&
    size&weight
  • Relevant
    information
  • Product related
    video
Product technical parameters

Range of Application

Cable float switch is made of micro switch or mercury switch as contact parts. When the cable float ball is lifted at a certain angle with a weight as the origin (usually the lifting angle of the micro switch is 28 +2 and the lifting angle of the mercury switch is 10 +2), the switch will have ON or OFF output signal. CF-P model is a kind of product which is formed by injection of plastic, so its structure is firm, stable and reliable, non-toxic, corrosion-resistant, easy to install, low-cost, It has good control effect on long-distance multi-point control, submerged pump, fluctuating liquid or impurity liquid.  Also suitable for general liquids .
The products are suitable for industrial, mining and construction industries. It is a device to control the water level of pools and towers. It is sensitive, accurate, novel and practical. It is a necessary aquatic product for high-rise buildings such as factories, hotels, buildings and families.
Cable float switch is formed by injection of plastic, so its structure is firm, stable and reliable, non-toxic, corrosion-resistant, easy to install and low cost. It has good control effect on long-distance multi-point control, submerged pump, fluctuating liquid or impurity liquid. Also suitable for general liquids. The cable length of cable float switch can be customized at any length. Cable float ball switch is metal cable float ball liquid level switch, the contact part is mercury switch, which is characterized by high temperature resistance, cable using high flexible cable, durable. Because of its simplicity, reliability, economy and convenience, it is widely used in liquid level control of various large containers, especially in municipal water supply and drainage, fire protection, water treatment and other industries.

Product Overview

There are five different combinations of stop and start control stations.
Under wet, dusty or dirty conditions, this control station is suitable for the control of motor starters on pumps, saws, compressors, lathes, processing devices and process lines.
56PB - Start Control Station
56PBS - Stop Control Station
56PS1 - Emergency Stop Station, this station has a mushroom head, with rotating reset and red buttons.
56PBS2 - Stop Station, this station has a mushroom head, with a rotating reset and red button marked stop)
562PB - stop start combination station has instantaneous button. The red stop button has an extension, and the green start button has an immersion.
562PBSI - Stop Start Combination Station Stop Button is the same as 56PBS1.

Technical Parameters

Rated Current: Voltage: 10（8A）250V-10（4A）380V；
Rated Power：1KW；
Working Temperatur：-10℃~80℃(plastic)；
-10℃-170℃(stainless steel)；
Control Accuracy：±0.05m
Contact Capacity：SPDT 8A/250VAC
Protection Level：IP68
Temperature：-10~80℃
Specific Gravity：0.6g/cm³
Mechanical Life：500,000 times
Electrical Life：300,000 times
Wire Length：3m,5m,10m，special length can be customized.

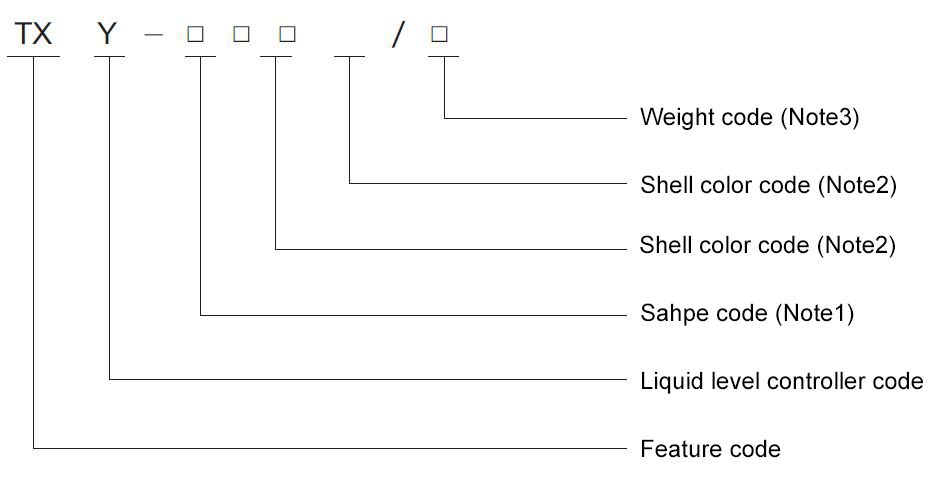

Model


Note 1（Shape code）：“1”一Rhomb“2”一Rectangle“3”-Big round“4”-Small round“5”-Oval
Note 2（Color code）：“R”一Red“Y”-Yellow“S”-Blue“G”-Gray“B”一Black
Note 3（Weight code）：“1”-Color ring fastening type（Generally do not need to specify）
“2”-Plastic splint screw tightening type（Must need to specify）

Installation and Wiring Mode

■Operating according to product specifications.
■Qualified products contain ground wire in yellow or green.
■These two lines need to be provided with "high level seal", "special requirements" and "low level seal" devices

Features

■ Suitable for sewage
■ Suitable for closed or open containers
■ Simple and maintenance-free
■ High chemical corrosion resistance
■ Micro-switch is used as a contact output. Contact capacity 10A/250VAC, it can start motor equipment directly.
■ HAR rubber cable with good weather-resistance and long service life
■ Simple structure, maintenance-free, suitable for both sewage and clean water
■ It can prevent water from overflowing into pools, towers and tanks, reduce waste, protect pumps and prevent damage caused by overload.
■ Save time. After connecting the power supply, the pump run automatically
■ Please consult with us about the length of the thermostat rod.

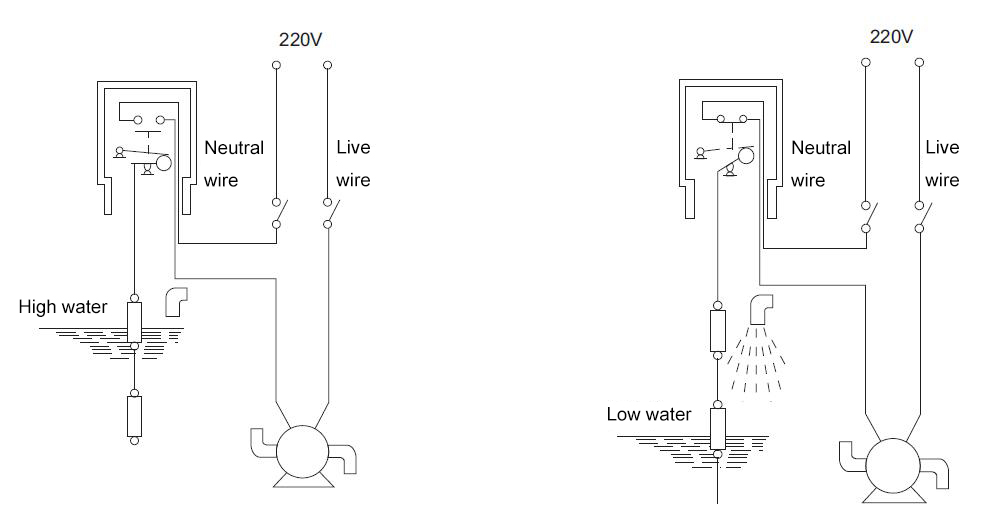

Electrical structure

■Use "black" and "blue" wires:
■浮球在下水位时，接点是接通的状态When the floating ball is low, the contact point is connected;
■When the floating ball is high, the contact point is not connected.
■Use "black" and "brown" wires:
■When the floating ball is low, the contact point is not connected;
■When the floating ball is high, the contact point is connected.

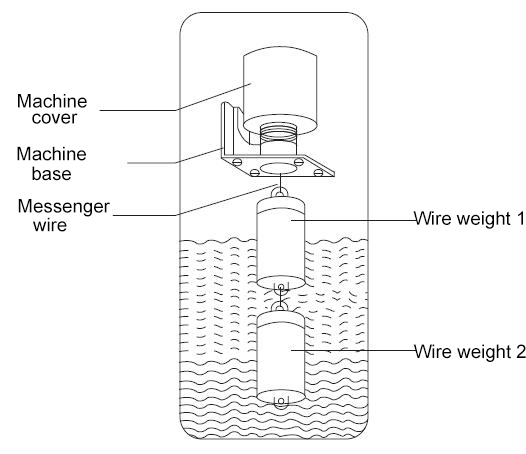

Installation of Weight

■After piercing the suspension wire of the float switch from the concave circular hole in the center of the weight, gently push the weight, so that the plastic ring embedded above the circular hole traps the thrust of the wire head and falls off. (If necessary, the plastic ring can also be removed with a screwdriver). Then the plastic ring can be wrapped on the cable where you want to set the water level by weight.
■Push the weight gently and pull the cable until the plastic ring is fastened in the center of the weight. If the plastic ring is damaged or lost, the plastic ring can be buckled with the same light copper wire into the accessories attached to the cable instead of the weight clock as required. Please pull the cable directly to the control box to avoid the use of intermediate joints as far as possible. If there are joints, the cable joints must not be immersed in water.

Characteristics & Features

■Simple structure and reliable performance
The product can send out switching control signal under any circumstances, which has strong reliability and anti-interference.
■Sturdy and durable
Long service life. No faulty operation, no fault occurs.
■Easy to install and adjust
The water level control range is adjustable. Protect cable signal with a screw to complete installation
■Wide application range and good general performance
This product is suitable for tributaries, sewage, oil, acid solution less than medium concentration, non-polluting environment (such as food and beverage industry), diesel engine gasification and automatic fuel supply.
■The product has simple application circuit, low cost. 220V operating voltage and 10A current.

Construction Principle

The water level controller shall be placed horizontally in the pool and a sealed terminal box shall be installed in the sluice. The wiring is installed in the terminal box with temperature-resistant wires. After the water level switch is connected with the power supply, the water level drops to 1/2, the switch is automatically connected with the power supply, and the pump starts to work. When the water level is reduced to 1/2, the start is automatically cut off and the pump stops working. The height can be set according to the water level to ensure the continuous flow of water.

Product Usage

1. Hydropower industry: water level control and alarm of catchment wells, clear wells, roof drainage, domestic water towers, storage tanks and forebays;
2. Water supply and drainage industry: water level alarm and control of mixing tank, sand and gravel filter tank, sedimentation tank, intake, storage tank and water tower of waterworks;
3. Water level control and alarm of digestion tank, balance tank, sewage tank, aeration tank, barrier grille and concentration tank in sewage treatment plant.

Technical Parameters

Micro switch 10(8)250V 10(4)A 380V
Current switch ≥50000（Test the working switch according to VDE standard）
Guard connection T70U
Protection Waterproof
Maximum temperature 70℃
Maximum working pressure 1 Pascal
Ultimate breaking capacity 250VDC，1KW

Basic Parameters

Power supply 220VAC 50Hz
Ambient temperature -30℃~+80℃
Power consumption <1.5KW
Output power consumption 220VAC 4A

Model Catalog

Photo Model
 Parameters Dimensions
TXY-1 ■Rated voltage：250V（380V）/120V
■Rated current：16A（8A）、10A（8A）、10A（4A）
■Working temperature：0℃ ■Mechanical life：≥100000 times
■Electrical life：≥50000 times
■IP Grade：IP68CS
 Model
 Parameters
 Dimensions
TXY-2 ■Rated voltage：250V（380V）/120V
■Rated current：16A（8A）、10A（8A）、10A（4A）
■Working temperature：0℃ ■Mechanical life：≥100000 times
■Electrical life：≥50000 times
■IP Grade：IP68CS
 Model
 Parameters
 Dimensions
TXY-3 ■Rated voltage：250V（380V）/120V
■Rated current：16A（8A）、10A（8A）、10A（4A）
■Working temperature：0℃ ■Mechanical life：≥100000 times
■Electrical life：≥50000 times
■IP Grade：IP68CS
 Model
 Parameters
 Dimensions
TXY-4 ■Rated voltage：250V（380V）/120V
■Rated current：16A（8A）、10A（8A）、10A（4A）
■Working temperature：0℃ ■Mechanical life：≥100000 times
■Electrical life：≥50000 times
■IP Grade：IP68CS
 Model
 Parameters
 Dimensions
TXY-5 ■Rated voltage：250V（380V）/120V
■Rated current：16A（8A）、10A（8A）、10A（4A）
■Working temperature：0℃ ■Mechanical life：≥100000 times
■Electrical life：≥50000 times
■IP Grade：IP68CS
 Model Parameters
 Dimensions
TXY70-AB ■Rated voltage：250V（380V）/120V
■Rated current：15A（3A）
■Working temperature：0℃ ■Mechanical life：≥100000 times
■Electrical life：≥50000 times
■IP Grade：IP23CS

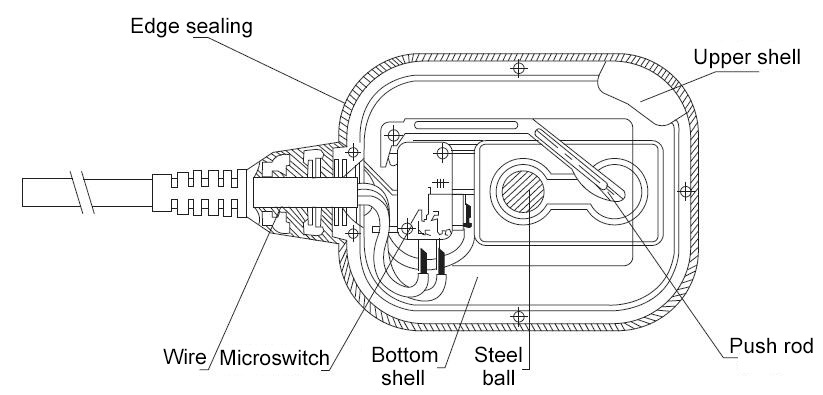

Structure Diagram

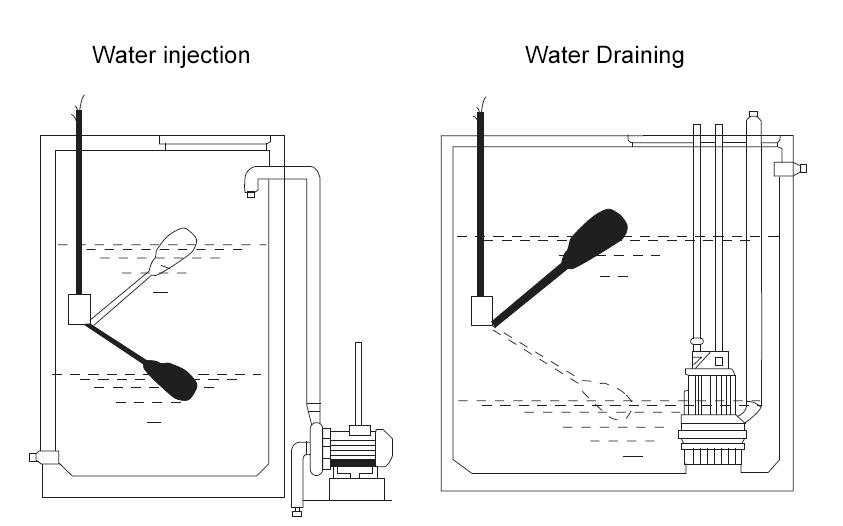

Usage Diagram
