Waterproof Socket Box for Building Site

Product Introduction

Portable power supply socket maintenance box is suitable for distribution network with frequency of 50-60 Hz and voltage of less than 500 V. It provides suitable power interface for multi-circuit electrical equipment. The socket box has the functions of overload, short circuit and leakage protection. It is widely used in petroleum, chemical industry, metallurgy, power plant, coal mine, machinery, textile, port, wharf and other industries.

Structure Features

The material of the box is steel plate (cold-roll steel plate, stainless steel plate) and plastic (polycarbonate).

The steel box body is made of high quality steel plate, and the special waterproof groove design greatly improves the sealing degree of the shell, and the protection level is higher than IP65. The surface is treated with anti-rust.

Electrostatic spraying, the color is generally light gray.

The plastic box body is made of polycarbonate material by one-shot injection molding. It has good sealing, anti-aging and anti-corrosion. The protection level reaches IP67.

This product has a perspective operation window, no need to open the door, handy and safe.

Main Technical Parameters

Nominal insulation voltage：660VAC
Rated operating voltage：380VAC 440VDC
Rated operating frequency：50Hz
Single circuit output current：125A、63A、32A、16A、10A, etc.
Single circuit output voltage：20～25VAC、40～50V、100～130V、200～250V、380～480V、500～690V
Output socket poles：2P+E、3P+E、3P+N+E、1P+N
IP grade：IP55、IP65、IP66
Suitable environment temperature：-30°C~+40℃ indoor and outdoor.

Maintenance

Although the distribution box has the characteristics of corrosion resistance and shock resistance, users should keep the box body and the interior clean, and remove oil, scale, dust and other dirt attached to the surface at any time.

Model & SPEC Table


TX-YZG3-1001	TX-YZG3-1002

IP44 Device plug 32A，5P，400V 1pc Electric meter 22KVA ALCI 40A，4P，003A 1pc MCB 16A，3P，C 1pc MCB 16A，1P，C 3pcs CEE/IEC Socket 16A，5P，400V 1pc Socket 16A，230V 3pcs	IP44 Device plug 32A，5P，400V 1pc Electric meter 22KVA ALCI 40A，4P，0.03A 1pc MCB 25A，3P，C 2pcs MCB 16A，1P，C 4pcs CEE/IEC Socket 32A，5P，400V 2pcs Socket 16A，230V 8pcs
TX-YZG3-1003	TX-YZG3-1004

IP44 Device plug 32A，5P，400V 1pc Electric meter 22KVA ALCI 40A，4P，003A 1pc MCB 16A，3P，C 1pc MCB 25A，3P，C 1pc MCB 16A，1P，C 4pcs CEE/IEC Socket 16A，5P，400V 1pc CEE/IEC Socket 32A，5P，400V 1pc Socket 16A，230V 4pcs	IP44 Device plug 2A，5P，400V 1pc Electric meter 22KVA ALCI 40A，4P，0.03A 2pcs MCB 16A，3P，C 2pcs MCB 25A，3P，C 1pc MCB 16A，1P，C 6pcs CEE/IEC Socket 16A，5P，400V 2pcs CEE/IEC Socket 32A，5P，400V 1pc Socket 16A，230V 6pcs
Dimension diagram：x1


TX-YZG3-2001	TX-YZG3-2002

Device plug 32A，5P，400V 1pc Electric meter 22KVA ALCI 40A，4P，0.03A 2pcs MCB 25A，3P，C 4pcs MCB 16A，1P，C 6pcs CEE/IEO Socket 32A，5P，400V 5pcs Socket 16A，230V 6pcs	IP44 Device plug 32A，5P，400V 1pc Electric meter 22KVA ALCI 40A，4P，0.03A 1pc MCB 25A，3P，C 2pcs MCB 16A，1P，C CEE/IEC Socket 32A，5P，400V 2pcs Socket 16A，230V 6pcs
TX-YZG3-2003	TX-YZG3-2004

Device plug 32A，5P，400V 1pc Electric meter 22KVA ALCI 40A，4P，0.03A 2pcs MCB 16A，3P，C 2pcs MCB 25A，3P，C 2pcs MCB 16A，1P，C 6pcs CEE/IEC Socket 16A，5P，400V 2pcs CEE/IEC Socket 32A，5P，400V 2pcs Socket 16A，230V 6pcs	Device plug 63A5P，400V 1pc Electric meter 44KVA ALCI 40A，4P，0.03A 1pc ALCI 63A，4P，0.03A 1pc MCB 16A，3P，C 2pcs MCB 32A，3P，C 2pcs MCB 16A，1P，C 6pcs CEE/IEO Socket 16A，5P，400V 2pcs CEE/IEC Socket 32A，5P，400V 2pcs
Dimension diagram：x2


TX-YZS3-A1001	TX-YZS3-A1002

IP44-IP65 CEE/IEC Plug 32A5P，400V 1pc 2m cable HO7RN-F5G4 CEE/IEC Socket 16A，3P，230V 3pcs CEE/IEC Socket 16A，4P，400V 2pcs MCB 16A，1P，C 3pcs MCB 16A，3P，C 2pcs	IP44-IP65 CEE/IEC Plug 63A，5P，400V 1pc 2m cable HO7RN-F5G10 CEE/IEC Socket 16A，5P，400V 1pc CEE/IEC Socket 32A，5P，400V 1pc CEE/IEC Socket 63A，5P，400V 1pc MCB 16A，3P，C 1pc MCB 32A，3P，C 1pc MCB 63A，3P，C 1pc
TX-YZS3-A1003	TX-YZS3-A1004

IP44-IP65 CEE/IEC Additional device plug 32A，5P，400V 1pc CEE/IEC Socket 16A，5P，400V 2pcs CEE/IEC Socket 16A，3P，230V 3pcs MCB 16A，1P，C 3pcs MCB 16A，3P，C 2pcs	IP44-IP65 CEE/IEC Additional device plug 32A，5P，400V 1pc CEE/IEC Socket 32A，5P，400V 1pc CEE/IEC Socket 16A，5P，400V 1pc CEE/IEC Socket 16A，3P，230V 3pcs MCB 32A，3P，C 1pc MCB 16A，3P，C 1pc MCB 16A，1P，C 3pcs
Dimension diagram：x3


TX-YZS3-A2001 Side A	TX-YZS3-A2001 Side B

IP44-IP65 CEE/IEC Socket 16A，3P，230V 4pcs MCB 32A，3P，C 3pcs 1个CEE/IEC Socket 16A，4P，400V 1pc 1个CEE/IEC Socket 16A，5P，400V 1pc 1个CEE/IEC Socket 32A，3P，230V 1pc 2个CEE/IEC Socket 32A，4P，400V 2pcs 1个CEE/IEC Socket 32A，5P，400V 1pc MCB 16A，1P，C 4pcs MCB 16A，3P，C 2pcs MCB 32A，1P，C 1pc	IP44-IP65 CEE/IEC Additional device plug 125A，5P，400V 1pc CEE/IEC Socket 16A，3P，230V 4pcs CEE/IEC Socket 32A，3P，230V 1pc CEE/IEC Socket 32A，4P，400V 1pc CEE/IEC Socket 32A，5P，400V 1pc MCB 125A，3P，C 1pc 1pc MCB 16A，1P，C 4pcs MCB 32A，1P，C 1pc MCB 32A，3P，C 2pcs
TX-YZS3-A2002 Side A	TX-YZS3-A2002 Side B

IP44-IP65 CEE/IEC Socket 16A，3P，230V 4pcs MCB 32A，3P，C 3pcs CEE/IEC Socket 16A，4P，400V 1pc CEE/IEC Socket 16A，5P，400V 1pc CEE/IEC Socket 32A，3P，230V 1pc CEE/IEO Socket 32A，4P，400V 1pc CEE/IEC Socket 32A，5P，400V 2pcs MCB 16A，1P，C 4pcs MCB 16A，3P，C 2pcs MCB 32A，1P，C 1pc	IP44-IP65 CEE/IEC Additional device plug 125A，5P，400V 1pc CEE/IEC Socket 16A，3P，230V 4pcs CEE/IEC Socket 32A，3P，230V 1pc CEE/IEC Socket 32A，5P，400V 2pcs MCB 125A，3P，C 1pc MCB 16A，1P，C 4pcs MCB 32A，1P，C 1pc MCB 32A，3P，C 2pcs
Dimension diagram：x4

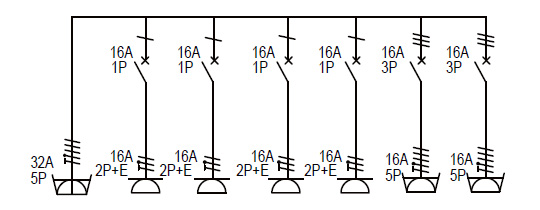

TX-YZS3-A3001	TX-YZS3-A3002

IP44-IP65 CEE/IEC Plug 32A，5P，400V 1pc 2m cable H07RN-F5G4 Socket 16A，230V 4pcs CEE/EC Socket 16A，5P，400V 2pcs MCB 16A，1P，C 4pcs MCB 16A，3P，C 2pcs	IP44-IP65 CEE/IEO plug 32A，5P，400V 1pc 2m cable H07RN-F5G4 Socket 16A，230V 4pcs CEE/IEC Socket 16A，5P，400V 1pc CEE/IEC Socket 32A，5P，400V 1pc MCB 16A，1P，C 4pcs MCB 16A，3P，C 1pc MCB 32A，3P，C 1pc
TX-YZS3-A3003	TX-YZS3-A3004

IP44-IP65 CEE/IEC Additional device plug 32A，5P，400V 1pc CEE/IEC Socket 16A，5P，400V 2pcs CEE/IEC Socket 16A，3P，230V 2pcs MCB 16A，1P，C 2pcs MCB 16A，3P，C 2pcs	IP44-IP65 CEE/IEC Additional device plug 32A，5P，400V 1pc CEE/IEC Socket 16A，5P，400V 2pcs CEE/IEC Socket 16A，4P，400V 1pc CEE/IEC Socket 16A，3P，230V 1pc MCB 16A，3P，C 3pcs MCB 16A，1P，C 1pc
Dimension diagram：x5

Dimension Diagram

Dimension diagram：x1

Dimension diagram：x2

Dimension diagram：x3

Dimension diagram：x4

Dimension diagram：x5

Notice When Ordering

Users only need to specify the specifications, models and quantity of orders. If there are special requirements, we can also according to the user's electrical schematic, box material and size, protection level, installation methods and installation location (indoor or outdoor), access and other requirements of special production.
